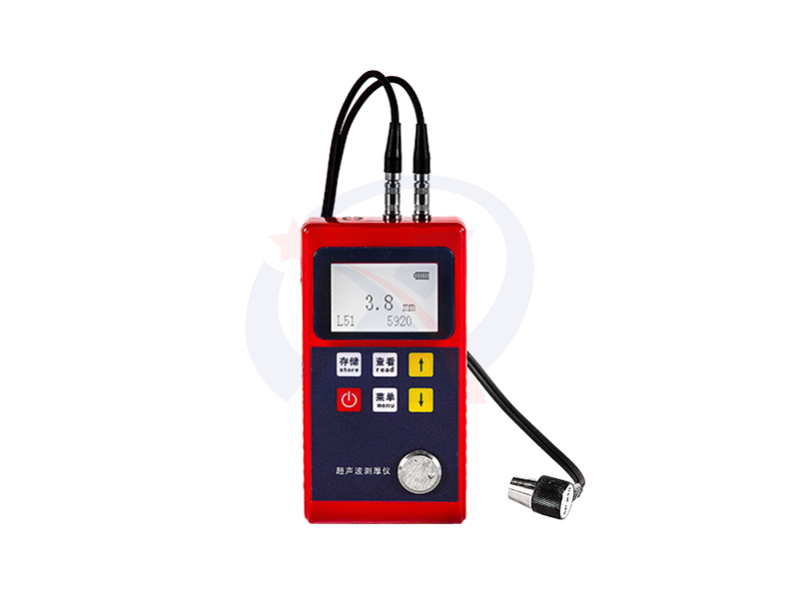

型号:XH-CH-322
采用超声波测量原理,适用于能使超声波以一恒定速度在其里面传播,并能从其背面得到反射的材料厚度的测量。
此仪器可对板材和加工零件做准确测量,另一重要方面是可以对生产设备中管道和压力容器进行监测,监测它们在使用过程中受腐蚀后的减薄程度。可应用于石油、化工、冶金、造船、航空、航天等各个领域。
major function
● For composite and unknown materials with known thickness, accurately measure sound velocity through reverse testing;
● Set upper and lower limit tolerances, if exceeded, an automatic alarm will be triggered;
● Status prompt function;
● Adjustable sound speed;
● Equipped with probe zero calibration and automatic correction of system errors;
● Equipped with coupling status prompt function;
● Equipped with high brightness LED backlight display, convenient for use in low light environments; There is a residual power indicator function, which can display the remaining battery power;
● It has energy-saving functions such as automatic sleep and automatic shutdown;
Compact, portable, and highly stable, suitable for harsh operating environments, resistant to vibration, impact, and electromagnetic interference; Both metric and imperial systems are available for selection.
Applicable materials
Suitable for measuring the thickness of good conductors of metals (such as steel, cast iron, aluminum, copper, etc.), plastics, ceramics, glass, glass, fiberglass, and other ultrasonic waves.
Basic Principles
The principle of ultrasonic thickness measurement is similar to that of optical wave measurement. The ultrasonic pulse emitted by the probe reaches the backtesting object and propagates within it. When it reaches the material interface, it is reflected back to the probe. The thickness of the tested material is determined by accurately measuring the time of ultrasonic propagation in the material.
Specification parameters
project |
XH-CH-321 |
measuring range |
0.75-3500mm(Steel, determined by probe) Standard probe measurement range1-250mm |
Display resolution |
0.1mm |
Sound speed range |
1000~9999m/s |
surface temperature |
-10-60℃ |
Indication error |
±(1% H 0.1)Mm,HFor the actual thickness of the tested object |
source |
AAAType alkaline battery(2Section) |
Operation time |
about200hour |
External dimensions |
130X70X25mm |
weight |
about0.2kg(Host) |
Standard configuration |
HostL51ProbeAAAType alkaline battery, coupling agent |
Optional |
Probe, coupling agentPCcommunication |
name |
model |
frequency(MHz) |
Probe diameter |
measuring range |
Minimum pipe diameter |
characterization |
Standard probe |
L51 |
5 |
10mm |
1.0mm~250.0mm(steel) |
Φ20mmX3.0mm |
Normal temperature use(<60)℃) |
KKprobe |
Kk |
5 |
10mm |
1.0mm~350.0mm(steel) |
Φ20mmX3.0mm |
Normal temperature use(<60)℃) |
Micro diameter probe |
L77 |
7 |
6mm |
0.7mm~50.0mm(steel) |
Φ15mmX2.0mm |
Used for thin-walled and small curved surfaces,Normal temperature use(<60)℃) |
Coarse crystal probe |
LZ2 |
2 |
22mm |
2.5mm~350mm(steel) |
20 |
Used for measuring coarse-grained materials such as cast iron,Normal temperature use(<60)℃) |
High temperature probe |
LG5 |
5 |
14mm |
2.0~100mm(steel) |
30 |
Used for temperatures below300Measurement of materials at ℃ |
