The test sample should be placed in the middle of the constant temperature aging room and cannot be immediately placed on the surface of the box. The spacing of the test sample rack must be adjusted according to the size, appearance, quality, and total number of the test sample. The upper air duct cannot be blocked, and the test sample should also be at least 5mm away from the upper and lower sides of the box. If an external power supply is necessary, the wires should be uniformly connected to the edge of the detection hole and not tangled together to prevent damage or other risks.

The placement regulations of the test items in the constant temperature aging room can actually reach different objects, and the common problems of different objects are also different. If you have to, please consult our technical personnel and explain to you wholeheartedly to solve difficulties together.

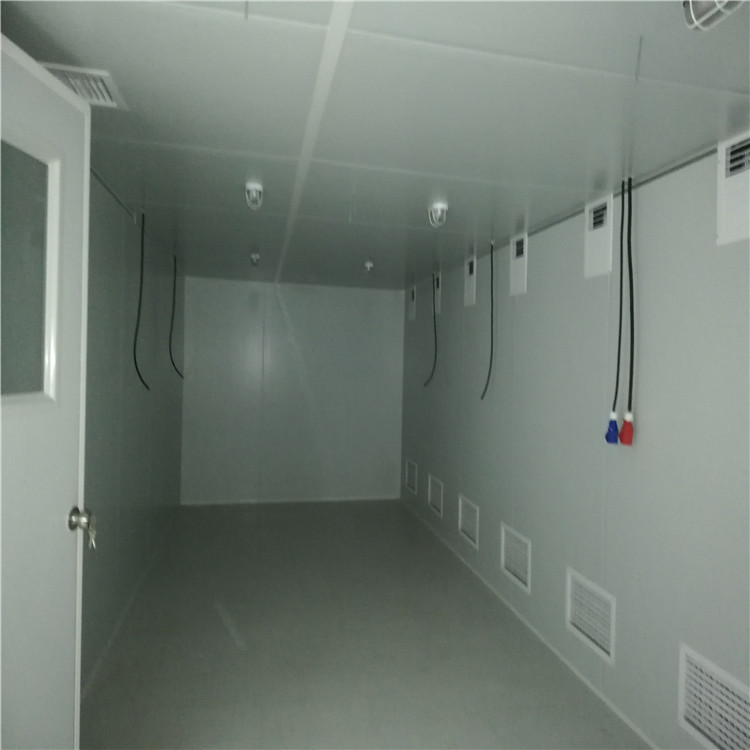

The power burning machine aging room is composed of the room structure, control system, air duct system, etc. Firstly, the temperature controller collects the temperature signal inside the power burning machine aging room, sends instructions to coordinate components such as contactors and solid-state relays to control the heating tube, convert electrical energy into heat energy, and heat the air; Then, the hot air is transported indoors through a fan to increase the temperature, usually using a "bottom out and top suction" method; The air supply method; When the temperature reaches the equilibrium point, use PID automatic adjustment technology to adjust the output frequency of the solid-state relay to achieve constant temperature.

When the actual temperature in the aging room of the power supply burning machine exceeds the target set value, the over temperature exhaust fan is turned on to discharge some hot air outdoors, achieving a dynamic balance between heating and heat loss in the test room, and ultimately achieving the goal of constant temperature.

The power supply burning machine aging room simulates a high-temperature and harsh environment testing equipment, which is an important experimental equipment to improve product stability and reliability, and an important production process for various production enterprises to improve product quality and competitiveness. This equipment is widely used in power electronics, computers, communication, biopharmaceuticals and other fields. It can be used to detect defective products or parts, providing effective means for customers to quickly identify and solve problems, fully improving customer production efficiency and product quality. It is also targeted at switch mode power supplies and mobile phone chargers. Due to the requirement of ensuring the required temperature, power quality, load capacity, working time, and the safety and habits of operators for the performance and environment of the high-temperature aging room, a qualified aging equipment should be a safe, reliable, energy-saving, fully functional, and scalable device.
