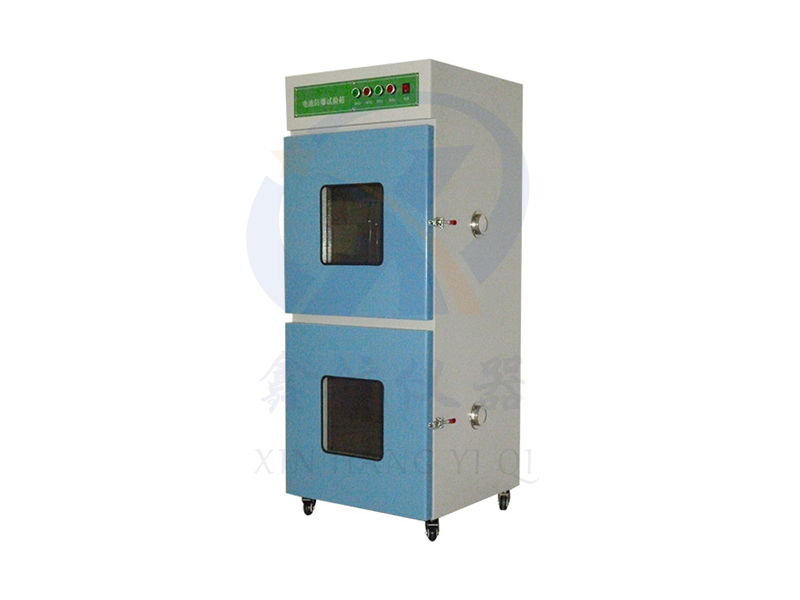

Battery explosion-proof test box

型号：XH-DC-8306

Contact Now

Product details
Requesting samples and information

Product Introduction

This testing machine is mainly used for overcharging and discharging batteries. During charging and discharging tests, the battery is placed in an explosion-proof box and connected to an external charging and discharging tester. Protect operators and instruments.

technical parameter

Product model	XH-DC-8306
Box size inside the test box:	500x500x500mm (length x width x height)
Number of layers:	2nd floor (customizable)
Material:	The outer box is cold-rolled and coated with paint, while the inner box is made of stainless steel
Single door, double-layer door with silicone tightening strip, front observation window open
The door is connected to the box by a strong hinge, and is an explosion-proof cold pull handle door lock
The interior of the test box is coated with Teflon tape, which effectively insulates and flame retardant, making it easy to clean
Each layer of the box has a circular wire installation port on the side for easy testing of connecting wires. The rear side is equipped with an exhaust fan for easy smoke exhaust
There is a separate testing panel to control the lighting and exhaust in each testing room
There is insulation design between each layer to avoid mutual influence during testing
