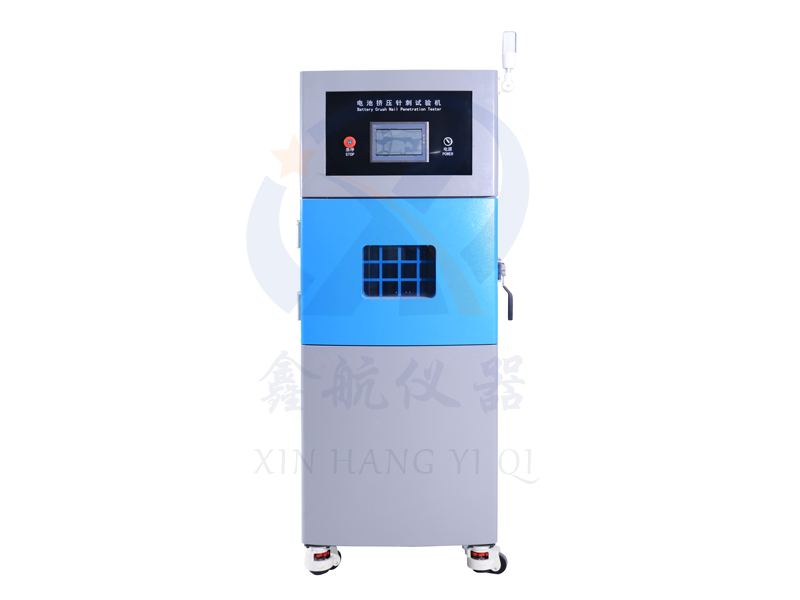

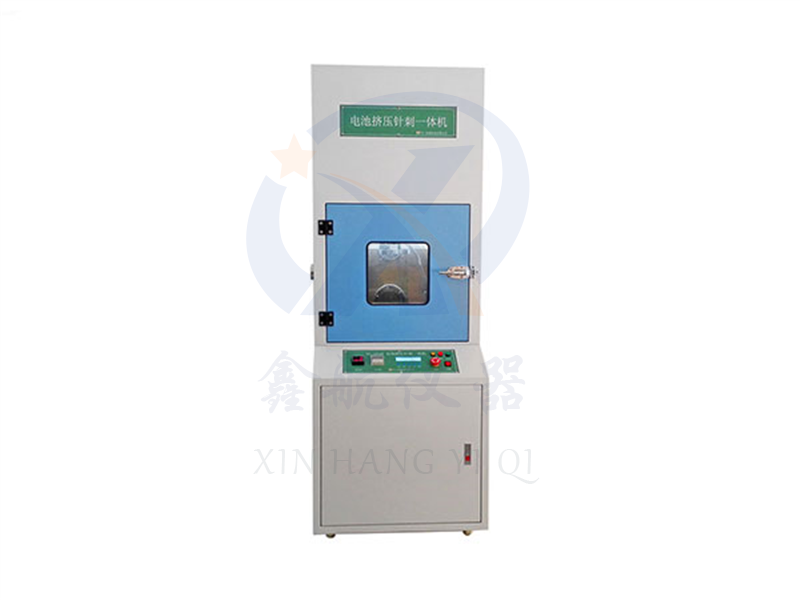

Product Introduction
1. Apply pressure through a hydraulic cylinder with a vise or cylindrical piston to compress the inspected individual or unit battery between two planes. Continue squeezing until the squeezing force reaches approximately 13kN and immediately relieve pressure. The compression test is used to verify the safety performance of the battery. After the test, the battery should not ignite or explode; It is also an essential testing equipment for various battery manufacturers and research institutes.
2. Used to simulate the internal short circuit of a single battery caused by sharp objects penetrating or piercing during use, storage, transportation, and inspection. Pierce the center position of the maximum surface of the battery with a high-temperature resistant steel needle with a diameter of 2-8mm at a speed of 10mm/s-40mm/s and maintain it for any time. The battery is qualified as not exploding or catching fire.
According to standards
GB31241, IEC62133, UL1642, UL2054, QC/T 743-2006 (Single cell testing), QC/T 744-2006 (Single cell testing)
technical parameter
Product model
|
XH-DC-8303
|
Transmission mode:
|
Hydraulic drive
|
Battery extrusion head (plate):
|
Standard square extrusion plate, easy to disassemble and replace (size 20 * 20cm)
|
Squeezing degree:
|
Squeeze continuously until the actual pressure reaches 13kN ± 0.2kN. Once the maximum pressure is reached, the equipment will automatically release pressure and complete the extrusion
|
Maximum pressure range:
|
1 kN~20 kN (commonly used 13 kN)
|
Pressure display accuracy:
|
0.1N, sensor resolution: 1/10000
|
Unit conversion:
|
Kg, N, lb
|
Data sampling frequency:
|
80 times/second
|
Compressed space:
|
300 * 300 * 200mm (width * height * depth)
|
Machine extrusion stroke:
|
200mm
|
Delay function:
|
0-9999 (H/M/S can be freely set and adjusted for testing time)
|
Clamping method:
|
Pneumatic clamping or manual clamping (optional)
|
Machine size:
|
seven hundred × eight hundred × 1680mm (width × high × Deep)
|
Using power:
|
AC380V, 50-60Hz, 10A
|
Equipment power:
|
3.8KW
|
Machine weight:
|
Approximately 220kg
|
