Product Introduction

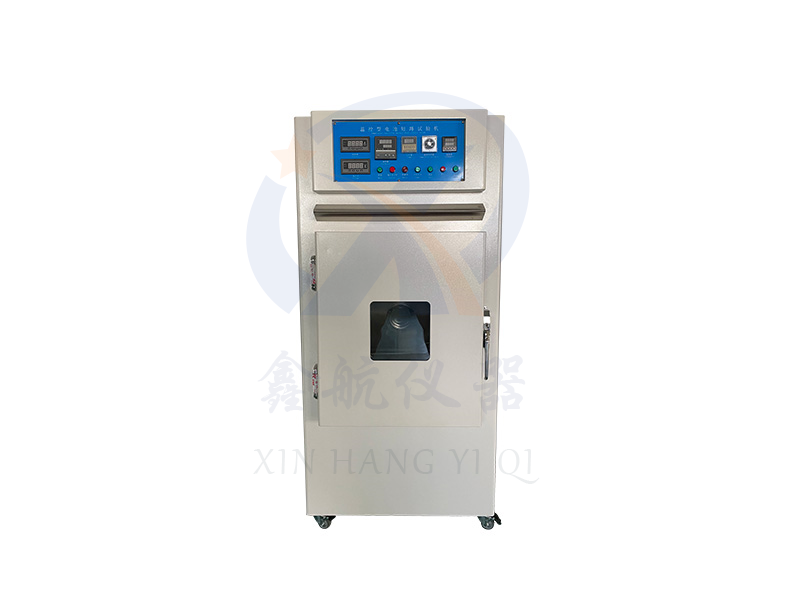

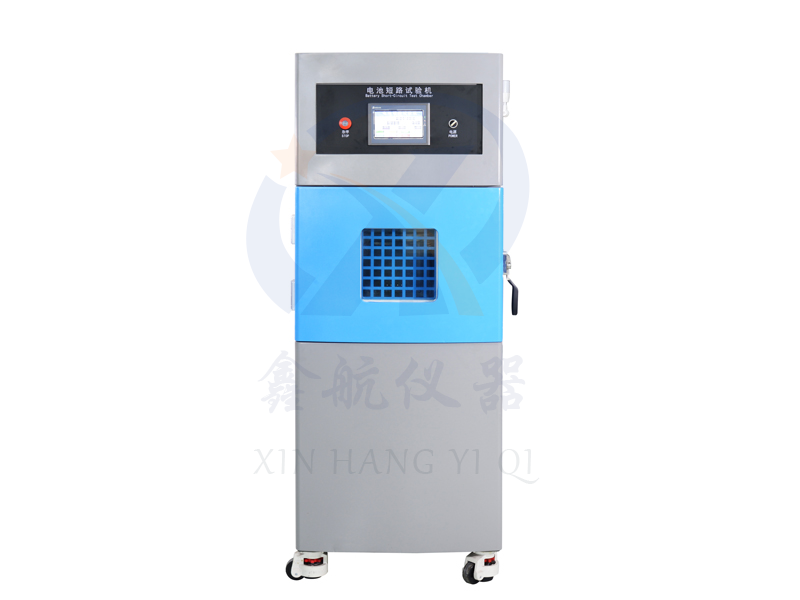

The remote control high current short-circuit device is designed according to various battery short-circuit test standards. According to the standard requirements, the short-circuit device must meet the internal resistance range of 80 ± 20m Ω, in order to obtain the maximum short-circuit current required by the test; In addition, the circuit design of the short-circuit device must also be able to withstand the impact of high currents. Therefore, we have selected industrial grade DC electromagnetic contactors, all copper terminals, and internal copper plates for flow guidance. The wide and thick copper plates effectively improve the heat dissipation effect, make the high current short-circuit device safer, effectively reduce the loss of test equipment, and ensure the accuracy of test data.
Meets the requirements of standards such as GB/T18287-2013, GB8897.4-2008, GB/T18332.2-2001, JGB2374-1995, IEC62133-2012, QB/T2502-2000, SJ/T11170-1998, SN/T1414.3-2004, SN/T14133, YD1268.1-2003, UN38.3, revised versions, UL1642-2005 (2008), UL2054-2004 (2008), etc. If the shell temperature is ≤ 170 ℃, it is considered qualified if the battery is not disassembled, ruptured, or caught on fire after 6 hours of observation after the test.
Product features
1. High current DC contactor
1.1 Remote connection and disconnection of AC working voltage to 220V;
1.2 Rated working current of 10A DC, equipped with a series magnetic blowing longitudinal partition ceramic arc extinguishing cover arc extinguishing system;
1.3 The overall structure is arranged in a flat layout, with the electromagnetic system and the main contact arc extinguishing system fixed on the installation frame respectively. The electromagnetic system with angular rotation and the double winding suction coil are used, and a pressing edge device is added on the rotating edges;
1.4 The main contact is made of purple copper. Low contact resistance and fast response speed of contacts;
The contactor has reliable operation, safety, long service life, and convenient maintenance.
2. Remote control
2.1. Long distance wired control or wireless 7m remote control can be customized;
2.2. Reliable and stable operation, with self-locking and interlocking functions, strong anti-interference ability, and long service life;
3. Voltmeter
3.1. Measure voltage: 0-100V to ensure test accuracy;
3.2. Display accuracy: F S ± 0.2% rdg ± 1 digit;
3.3. Action mode: Double integration mode
4. Ammeter
4.1. Measuring current: 0-1000A;
4.2. Display accuracy: F S ± 0.2% rdg ± 1 digit;
4.3. Action mode: Double integral mode.
5. Basic configuration
The entire battery short circuit tester consists of a high current short circuit contactor, (this is an optional remote control controller), a voltmeter, an ammeter, etc;
6. Test site requirements
This test poses certain risks. Please use a separate testing machine room for testing and open an observation window in the laboratory to record voltage and current data when the battery is short circuited.
technical parameter
|
model
|
XH-DC-8308
|
|
Working voltage:
|
AC 220V 50Hz 60Hz;
|
|
Impulse voltage:
|
AC 1kv/1.2-50 μ S (peak) 1min
|
|
Maximum voltage of measurable battery:
|
100V
|
|
DC response time:
|
≤ 5 μ S
|
|
Maximum short-circuit current:
|
1000A
|
|
Internal resistance of the device:
|
80 ± 20m Ω
|
|
Action time:
|
Suction time/release time ≤ 30ms
|
|
Action characteristics:
|
Cold state suction voltage is not more than 66% Us
Cold release voltage is not more than 30% Us, not more than 5% Us
|
|
Precision temperature control box temperature range:
|
Room temperature 10-200 ℃ (room temperature is room temperature)
|
|
Material of temperature controlled explosion-proof box
|
Inner box: SUS # 304 stainless steel,
Outer box: Cold rolled sheet with special treatment of spray painting and baking paint
|
|
Insulation material
|
Efficient compression of glass wool
|
|
Test hole
|
Located on the rear side of the explosion-proof box, there are two circular holes with a diameter of 50mm, equipped with high-temperature resistant rubber plugs.
|
|
Short circuit test
|
Room temperature short circuit (i.e. 20 ± 5 ℃) or high temperature short circuit test (55 ± 5) ℃
|
|
Temperature control accuracy:
|
0.1 ℃
|
|
Temperature uniformity:
|
± 2 ℃
|
|
Box size inside the test box:
|
400 * 450 * 400mm (W * H * D)
|
|
Mechanical lifespan:
|
300000 times
|
|
Work environment:
|
Temperature -10 ℃~100 ℃ Humidity: 10~90% No condensation
|
|
Standard configuration
|
1 control box
2. One high-temperature testing box
3. Short circuit (professional tooling) 1 pair
5. 1 pair of high-temperature resistant silicone plugs
6. One manual, one warranty card, one certificate of conformity, and one packing list each
|
