3. Accuracy: City 0.5%

4. Strength unit: KG, LB, switchable 5. Test space: 1000 × 1000 × 1000mm 6. Compression speed standard: 10 ± 1mn/min 7. Test pressure indication accuracy: 1N 8. Pressure indication resolution: 1N 9. Displacement deformation indication accuracy: 0 1mn

10. Test speed adjustment range: 10-100mn/min 11. Return speed adjustment range: 1-200mm/min

12 driving methods: The precision ball screw transmission system is driven by a Taiwan A variable frequency motor to ensure the equipment's up and down operation. 13. Accuracy, stability, and reliability.

14. Operation mode: fully computer-controlled

15. Display: LCD Chinese computer display

16. Communication interface: Standard RS232 computer communication interface.

17. Report items: serial number, peak value, average value, set holding pressure value, memorable

18. Structure: Gantry aluminum alloy structure, computer operating system, Taiwan AC variable frequency motor, precision ball screw 19 safety device. Overload protection, overvoltage protection, limit protection device

20. External dimensions (approximately): (L x w x H) 1795 x 1200 x 1820mn21. Weight: approximately 680kg

22. Power supply: 1220v/50HEz

Product Introduction

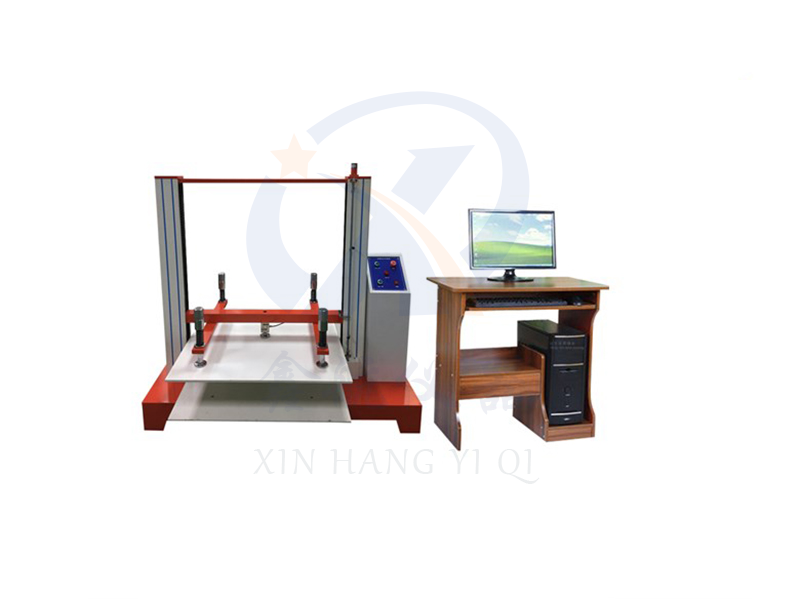

The most direct testing instrument for testing the compressive strength of cardboard boxes or other packaging containers is used to determine the compressive capacity of cardboard boxes, and can be used for pressure holding stacking tests. The test results can be an important reference for the height of finished packaging boxes stacked in factories or an important basis for designing packaging boxes. It can execute national or international standards such as GB, ISO, ASTM, BS, DIN, JIS for testing, and is an ideal testing and research equipment for various factories, technical supervision departments, commercial inspection institutions, research institutes, and universities.

Simultaneously meet the requirements of the following three basic test functions:

1. Pressure test: used to determine the ultimate compressive strength of the specimen, the testing machine automatically records the peak pressure and the compressive deformation of the specimen;

2. Fixed value test: The overall performance of the box can be tested based on the set pressure or deformation, providing necessary test data for the design and selection of the box;

3. Stacking strength test: Apply a certain pressure value to the sample continuously for a specified time to determine the pressure endurance of the sample under simulated packaging and storage conditions. According to relevant standards, stacking tests can be conducted under different conditions such as 12 hours and 24 hours.

Explanation: According to the different sizes of corrugated cardboard boxes, packaging containers, and transportation packages, you can combine them into testing machines of different sizes and pressure ranges through the following choices to meet your needs.

Product Introduction and Functional Features

1. Adopting the Windows working platform, all parameter settings are processed in the form of dialog boxes, and the operation is simple; The software interface has three languages: Simplified Chinese, Traditional Chinese, and English, making switching convenient;

3. You can plan your own testing report mode; The test data can be viewed in the main screen;

4. Multiple curves can be compared simultaneously using methods such as translation and comparison; 5. It has multiple measurement units and can be switched between metric and imperial systems; Equipped with automatic return function; 6. Equipped with automatic magnification function to achieve the most appropriate size of graphics; 7. It has the function of customizing experimental methods and analyzing experimental data; 8. It can perform tests such as compression resistance, bending resistance, holding pressure, fatigue, etc.

9. High sensitivity, instantaneous detection of crushing and automatic shutdown
