2. Main functions:

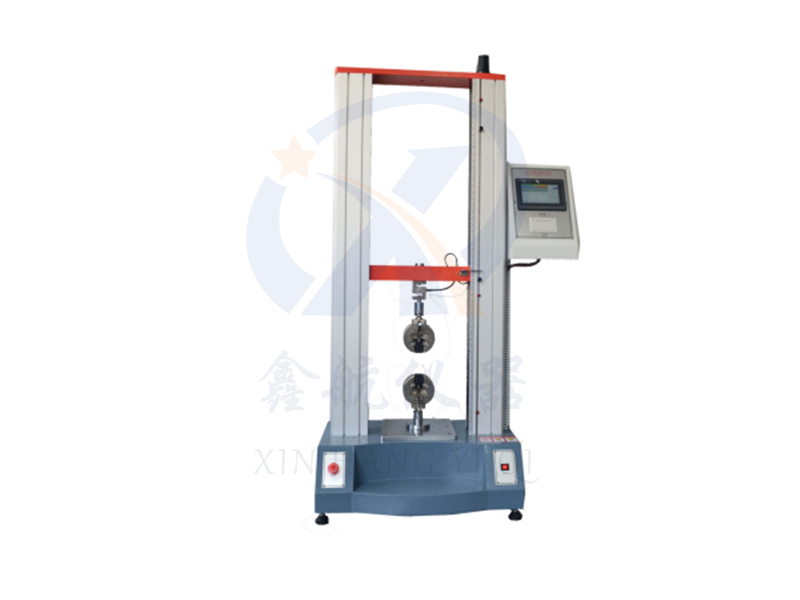

This machine is widely used for mechanical performance testing of non-metallic materials such as rubber, plastic, wires and cables, textiles, waterproof materials, non-woven fabrics, as well as metal wires, metal foils, metal sheets, and metal rods. It is also suitable for various finished product tensile, compression, peeling, shear, and tear tests when paired with specialized fixtures.

*Using AC variable frequency motor to drive precision T-shaped screw drive, running smoothly and with low noise;
*Digital display of force value, maximum force value, displacement, and extended displacement, with stepless adjustable testing speed;
*Using high-precision encoders to measure displacement, with a force resolution of up to 1/25000, high experimental accuracy, wide measurement range, convenient operation, and low price;
*Equipped with automatic shutdown, overcurrent, overvoltage, and overload protection functions for test breaking;
*Equipped with a micro printer, it can print test data in real time.

3. Specification parameters:

Capacity selection

10020050010002000kg

Force measurement accuracy

Within ± 1% of the indicated value

Display method

Touch screen control

Unit switching

Kg, lb, N

Data sampling frequency

200times/sec

Resolution of testing machine

Maximum load 1/± 25000 yards, without dividing the inside and outside, and with constant resolution throughout the entire process

Load sensor

Basic configuration: tension and pressure sensors (maximum load)

Effective test width

380mm

Effective stretching space

1000mm

Test speed range

50-300mm/min stepless speed regulation and 5-speed regulation (special test speeds can also be customized according to customer needs)

Displacement measurement accuracy

Within ± 1% of the indicated value

Breakpoint ratio setting

0-99%, users can set appropriate fracture downtime according to different materials

Test bench safety device

Up and down stroke limiting device

Overload protection

Exceeding maximum load by 10%, machine automatically protects

Fixture configuration

A set of stretching fixtures

Host size

one thousand and one hundred × seven hundred × 2000mm

Host weight

Approximately 200 kg

source

220V/50Hz
