Double layer constant humidity temperature and humidity test chamber

Double layer constant humidity temperature and humidity test chamber

型号：XH-HSW-8100 series

Programmable constant temperature and humidity test chamber, also known as programmable constant temperature and humidity alternating test chamber, is an equipment used to test the performance of materials in various environments and to test the heat resistance, cold resistance, dry resistance, and moisture resistance of various materials. Suitable for quality testing and research in electronics, electrical appliances, mobile phones, communication, instrumentation, vehicles, plastic products, metals, food, chemistry, building materials, medical, aerospace, scientific research, universities, and other fields.

Contact Now

Product details
Requesting samples and information

Intelligent adjustment: Balanced temperature and humidity control method (BTHC) PID intelligent adjustment

Multiple protection: All key components are imported international brands, and the entire system is equipped with multiple protection devices

High uniformity: Clever air duct structure with small temperature and humidity deviation, high uniformity, and anti condensation function

Convenient observation: The door is equipped with a light observation window, which can facilitate the observation of the test status of the sample

countryPatent: ISO9001 Quality System Certification Enterprise, Product Awardedcountrypatent

Product features

The testing machine product obtainedcountryPatents.

All imported stainless steel shells or rust proof steel plates (spray painted) have a beautiful and generous appearance.

Imported refrigeration units, key accessories are all imported international brands, and the entire system is equipped with multiple protection devices to improve operational reliability.

Clever air duct structure with small temperature and humidity deviation, high uniformity, and anti condensation function.

The door is equipped with a illuminated observation window, which facilitates the observation of the test status of the sample.

The system is easy to operate and easy to install and maintain.

technical specifications

name		Constant temperature and humidity test chamber (double layer) - Volume ABCD (volume can also be customized according to requirements)
Internal volume (L) m ³		80L	150L	225L
Studio size (WxDxH) (m) width, depth, and height		400 * 400 * 500mm	500 * 500 * 600mm	600 * 500 * 750mm
performance	Temperature and humidity control methods	Balanced Temperature and Humidity Control (BTHC) PID Intelligent Adjustment
	Product performance	Air cooled, the machine is air-cooled at a room temperature of 25 ℃ when unloaded.
	temperature range	A: -40 ℃~150 ℃ B: -20 ℃~150 ℃ C: -60 ℃~150 ℃ D: -70 ℃~150 ℃

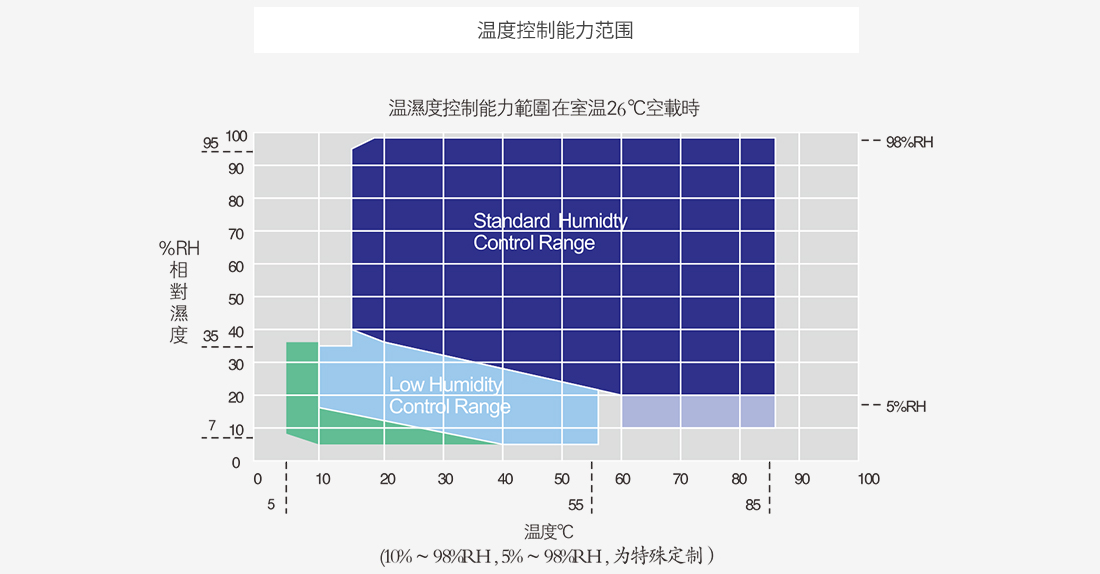

	Humidity range	20%~98% R H (10%~98% R.H, 5%~98% R.H; customized for special conditions)
	Temperature distribution uniformity	≤ ± 2 ℃
	Temperature/humidity control fluctuation	± 0.5 ℃/≤ ± 3% R.H
	Temperature/humidity deviation	≤ ± 2 ℃/75% R H<± 5% R H, 75% R H ≥ ± 3% R H,
	heating rate	About 2 ℃/minute; No load (temperature rate of 2-25 ℃/minute, linear/nonlinear, special conditions require customization)
	cooling rate	Approximately 0.7-1.7 ℃/minute; No load (temperature rate of 2-25 ℃/minute, linear/nonlinear, special conditions require customization)
Inner/outer shell material		SUS304 stainless steel/stock plate or anti rust treated cold-rolled steel plate spray coating or SUS304 brushed stainless steel
Refrigeration method		Fully enclosed dual stage compressor (air-cooled)/German BITZER compressor or German GEA blog compressor (water-cooled)
Control system/resolution		TAITONG TATO/Korean TECH ternary/0.01 ℃/0.1% R.H
Environmental temperature/humidity		Air cooling 5 ℃~26 ℃, water cooling 5 ℃~35 ℃/≤ 85% RH
source		220VAC ± 10% 50/60Hz/380VAC ± 10% 50/60Hz
