1、Product Introduction:

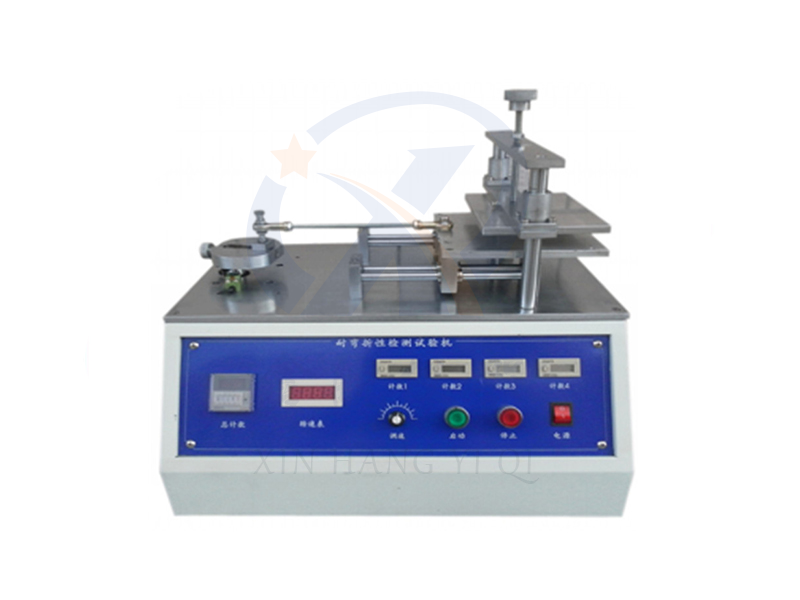

This machine is mainly used for bending testing of circuit boards (commonly known as software circuit board FPC) that can be bent; Testing of bending and bending resistance life of FPC soft boards for electronic products such as mobile phones, PDAs, electronic dictionaries, and laptops. This machine uses the crankshaft for reciprocating push pull action, with adjustable speed and bending angle. It automatically counts and stops when the set number of times is reached.

2、Main technical parameters:

Test speed 0-60 times/minute Test travel 0-100mm Count setting 0-999999 times

Twisted R-angle 0.5, 1.0, 2.0, 3.0 4.0

Volume W600mm x D400mm x H450mm

Weight 45kg

Power supply 1 Ü AC 220V 3.5A (depending on country or specified)

The workstation can test one or four products simultaneously.
