Instrument features:
All three axes adopt imported HIWIN high-precision linear guide rails and grinding grade ball screw drive, with low noise, low vibration, and minimal dynamic geometric error deformation;
Using high-quality granite marble base and double columns from Jinan, Shandong, it has good temperature stability and resistance to effective deformation.

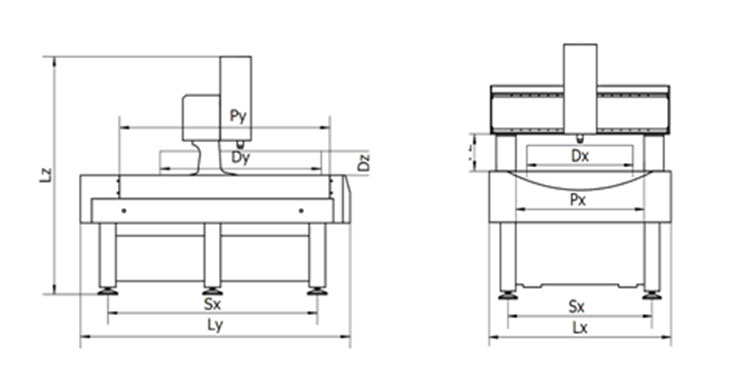

Adopting a fixed gantry structure, it has high measurement accuracy and stability, ensuring precise positioning during high-speed operation.
Finite element structural analysis and optimized structural design ensure the overall high accuracy and stability of the system for this series.
Adopting an integrated control box with independent intellectual property rights and imported high-performance servo motor drive, achieving full closed-loop control.

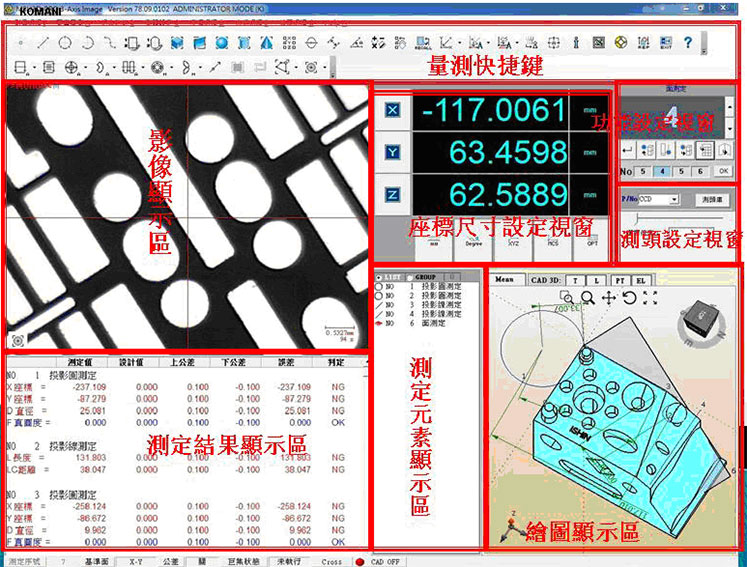

The operation room is simple and powerful, integrating multiple features such as CAD import comparison, full graphic display, quick click operation, real-time data comparison, diversified report formats, and advanced algorithms. The advanced and accurate algorithms are also guaranteed.
Widely used in industries such as mechanical processing, electronics, automobiles, hardware, molds, precision manufacturing, plastic and rubber products, optoelectronics, mobile phones, PCB boards, electronic components, semiconductors, touch screens, LCD panels, medical equipment, cutting tools, bearings, terminals, etc.

2. When there is a power outage or other abnormal shutdown, the software can automatically recover data to prevent the inability to recover measured data from affecting work efficiency.
3. Provide powerful linear and nonlinear compensation functions to ensure higher machine accuracy.

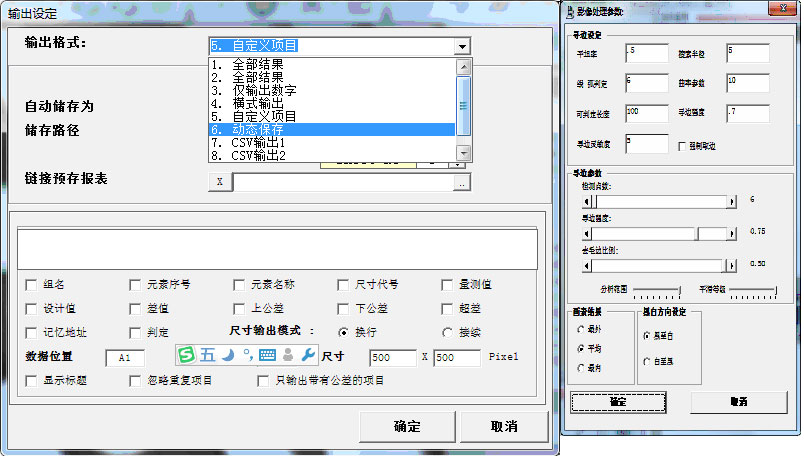

4. The measurement results can be converted into various styles for EXCEL and WORD editing, and tolerance levels can be set, allowing for immediate judgment of OK and NG.
5. Graphical measurement, clear and concise labeling; And it can store IGES and DXF file formats, making it the best tool for CAD reverse engineering.

6. Program self-learning, array replication and other functions to achieve large-scale automatic detection and improve work efficiency.
7. Super strong image deburring function, which can avoid overlapping and broken line segments.
8. Program design is simpler, without the need to memorize any complex instructions; All steps can be visually modified directly in the software.

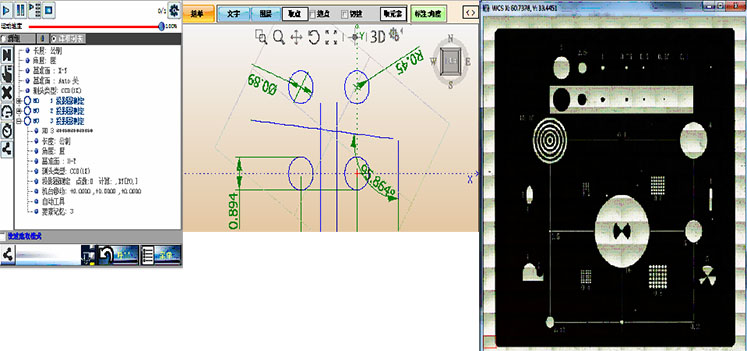

9. The jigsaw puzzle photography function can save the graphics in digital format, making it easy to view specific details in the later stage and also allowing for quick positioning.
10. Multi language window software (supports Chinese, English, Japanese, Korean, and German).
11. Convenient and fast workpiece coordinate system settings (origin, axis alignment, face alignment, rotation, offset).
12. Supports multiple methods of movement such as mouse, keyboard, screen, joystick, etc., making it more convenient to find measurement objects.
13. Supports fast autofocus and reduces human error.
14. Quickly locate (feature area, drawing area, digital area, image navigation, etc.) to the tested area.
15. Super strong image deburring function, which can avoid overlapping and broken line segments.
16. Multiple methods of image edge finding tools make measuring elements simpler and more accurate.

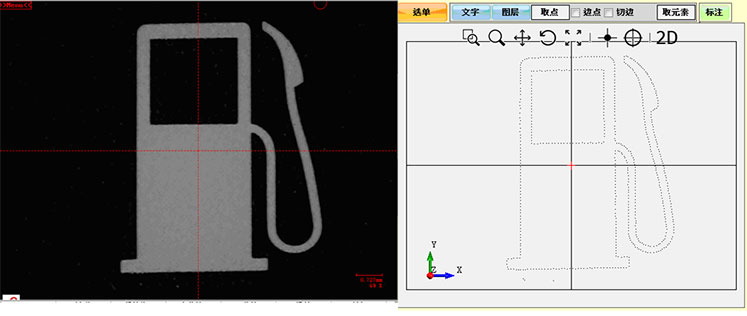

17. The global scanning function can quickly obtain the contour of irregular products and convert it into CAD format, achieving fast data copying and reverse engineering.

18. Screen measurement function: Screen workpiece image line measurement: directly select the approximate position of the line segment on the edge to be scanned, and the software can automatically analyze the edge of the object under the screen for line measurement.

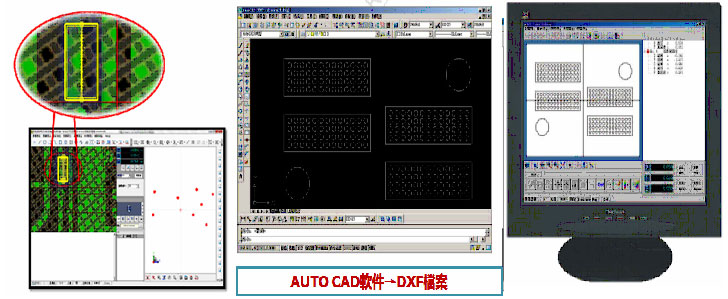

19. CAD comparison offline programming module: (optional)
1. It can load DXF files and directly convert them into measurement programs, reducing editing time.
2. It can be operated offline (on another PC) without affecting the normal operation of the machine.
3. Suitable for workpieces that require measuring a large number of sizes, it can conveniently and quickly enter automatic measurement, saving measurement time.

20. Contact probe module (optional): supports complete 3D measurement and can achieve image @ probe co center measurement as well as automatic measurement after programming.
21. Non contact laser module (optional): The measurement position can be specified through images to achieve detection of flatness and height in narrow and other workpiece areas.
