Overview:
This system is a newly developed Vickers hardness measurement system, which collects images through high-precision CCD and image acquisition system, and precisely processes the collected images for precise measurement and calculation of diamond indentation produced. The system host adopts an integrated cast aluminum body, which does not deform or move. The weight loading mechanism has stable performance, high measurement accuracy, and good repeatability. The display interface adopts a menu style structure, which is easy to operate, easy to install and debug, and the cast aluminum casing has stable long-term performance with small natural deformation. The weight loading makes the loading force more pure. This micro Vickers hardness measurement system is suitable for Vickers hardness measurement of various metals and some non-metallic materials.
Application scope:
Hardness testing is carried out on various parts (such as machined parts, forgings, cast iron, steel castings, etc.), non-ferrous metals, and heat treated parts. It is also suitable for measuring the effective hardening depth, coating layer, and heat affected parts of welded parts. It can also be used for observing the internal metallographic structure of various metal parts and for collecting, displaying, and outputting images for printing. Suitable for measuring the hardness gradient distribution curve of workpieces and measuring the surface hardness of gears after heat treatment, as well as the effective hardening layer depth.
Basic functions:
● Video/Image Capture: The USB camera that matches DirectShow can be opened to capture and save video and image files;
Camera calibration: The camera can be calibrated with a ruler, and after calibration, the system can be used for geometric dimension measurement;
Calibration management: The system can save multiple calibration data, and users can manage calibration by renaming, uninstalling, loading, deleting, etc;
● Geometric dimension measurement: The system can draw common geometric shapes and measure their geometric dimensions, such as line segments, angles, rectangles, arcs/circles, ellipses, polygons, point to line, point to arc, etc;
Image processing: The system provides rich image processing tools, such as brightness, contrast, gamma, histogram depth, etc. For grayscale images, the system provides filtering and edge finding tools, as well as some standard graphic and image operations such as opening and closing corrosion, expansion, and flowing water coverage;
● Document annotation: The system provides an image document editor, which can input/edit pure text or complex documents containing lists, tables, and images (in HTML format);
● Album management: Multiple images can be saved to a single album file, and images can contain vector information such as geometric shape document annotations;
● Data storage and retrieval: images and measurement data can be conveniently saved in a file for later retrieval, modification or report generation;
● Report: Geometric dimension measurement results can generate a WORD document;
● Fixed magnification printing: Based on the printer properties, the system can print images at the magnification specified by the user.
Main functions:
Technical parameters:
|
model
|
XY
|
|
Experimental force
|
10GF (0.098N)25gf (0.245N)50GF (0.49N)100GF (0.98N)200GF (1.96N)300gf (2.94N)500gf (4.9N)1kgf (9.8N)
|
|
Execution standards
|
GBT4340.1GBT4340.2ISO6507-2ASTM-E384
|
|
Experimental force
Application method
|
Automatic (loading, holding, unloading)
|
|
Sample stage
|
System providedXYElectric mobile sample stage
|
|
XYZSample stage and movement control
|
System providedXYElectric mobile sample stage:
1. XYstroke: 50mm * 50mmPlatform size: 110mmX110mm,Displacement repetition accuracy<2um; The itinerary and dimensions can be customized;
2.Automatic edge scanning:Automatically scan and depict the overall image of the sample edge along the sample edge for loading path planning, suitable for hardness measurement at specific positions on the sample;
3. XYThe movement speed can be adjusted.
4.You can move by pressing the direction button or keyboard direction keys, or by entering the distance to move.
|
|
Load mode and path settings
|
The loading path setting provides the following modes:
1.Along the route;2.Angle along the line;3.Free click;4.Along the horizontal line;5.Along the longitudinal route; 6.Multiple lines along the curve;7.Along the curve matrix;8.Arc;9.Tooth center;10.Parallel tooth tips;11.Automatic angle along the edge band;12.Automatic edge matrix;13.Center. New modes can be customized and added.
|
|
Automatic edge finding
|
Automatically scan along the edge of the sample and find inflection points, such as tooth tips and roots.
|
|
automatic measurement
|
Calculate hardness values by automatically loading, focusing, and measuring indentation point by point according to the set loading path,And automatically draw the hardening curve; One click completion:
1.Can be set to a minimumHVAutomatically stop measuring when the value is reached;
2.After the measurement is completed, additional points can be added to the original path for measurement;
3.Each point measurement image is saved and can be used for final manual correction; When making corrections, simply drag and drop the indentation quadrilateral border with the mouse, and the hardness measurement values, statistics, and measurement albums will be automatically updated.
|
|
Automatic loading and automatic measurement
|
After one-time focusing, the system automatically loads and measures multiple points according to the set loading mode, and automatically draws the hardening curve with just one click.
|
|
Camera and calibration management
|
1. USB 2.0 CMOSDedicated to microscope measurement cameras(3)Million pixel camera optional;
2.The camera can be calibrated using two methods: a hardness calibration block or a calibration ruler;
3.In order to improve measurement accuracy, different test forces can be calibrated separately and the system automatically loads them.
|
|
Hardness value conversion, correction, and effective verification
|
1.Hardness conversion: The measured Vickers hardness value can be converted to other hardness values in American, national, or German standards, such asHBHREtc;
2.Hardness correction: can correct the measured values of spherical or cylindrical samples;
3.Effective verification: Based on the measured hardness value, calculate the minimum sample thickness, the distance between the test point and the sample edge, and the distance between the test points.
|
|
data statistics
|
Automatically calculate the average and variance of hardnessCpCpkWait for statistical values.
|
|
Hardening curve
|
Automatic drawing of hardening curve:
1.Multiple hardening curves can be automatically generated within a measurement path or a single curve can be generated based on the average value;
2.Can be drawnHVrightXYThe hardening curve diagram.
|
|
Data storage
|
The original measurement data and images can be saved in the document for later calling out and printing the report; Save all data of a measurement in one file.
|
|

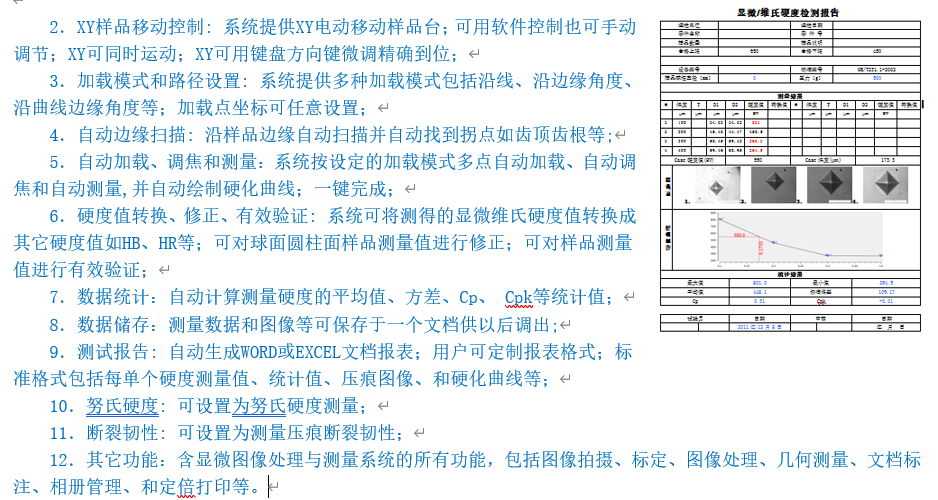

Test report
|
Automatic generationWORDorEXCELDocument report; The report format can be customized; The standard format includes hardness values, statistical values, indentation images, and hardening curves for each individual measurement point, and users can also input custom additional information. Used for reports; Measurement data can also be sent to designated network ports.
|
|
Knoop hardness
|
Can be set for Knoop hardness measurement
|
|
fracture toughness
|
Can be set to measure indentation fracture toughness
|
|
Other functions
|
containIVision PMAll functions of the microscopic image processing and measurement system, including images/Video shooting, image processing, geometric dimension measurement, document annotation, album management, and fixed magnification printing, etc; Document annotations can input text, lists, and images on images
|
|
Manual modification
|
After measurement, you can manually drag and modify indentation marks with a mouse, and automatically update measurement values and statistical results
|
Standard configuration:
|
name
|
quantity
|
name
|
quantity
|
|
Instrument host
|
1platform
|
objective lens40x10x,
|
various1only
|
|
Vickers indenter
|
1only
|
Weights
|
6only
|
|
Cross worktable
|
1individual
|
Weight rod
|
1individual
|
|
Thin film clamping table
|
1individual
|
External power cord
|
1root
|
|
Flat mouth clamping table
|
1individual
|
10xDigital micrometer eyepiece
|
1only
|
|
Spirit level
|
1individual
|
Micro Vickers hardness block（HV1HV0.2）
|
One piece each
|
Software configuration:
|
name
|
quantity
|
name
|
quantity
|
|
XYElectric displacement workbench
|
1platform
|
Power cord
|
1root
|
|
XYConnection line
|
1root
|
USBConnection line
|
1root
|
|
13010000 dedicated cameras
|
1only
|
RS232Serial port cable
|
1root
|
|
Crypto Dog
|
1only
|
Software installation CD
|
1slice
|
