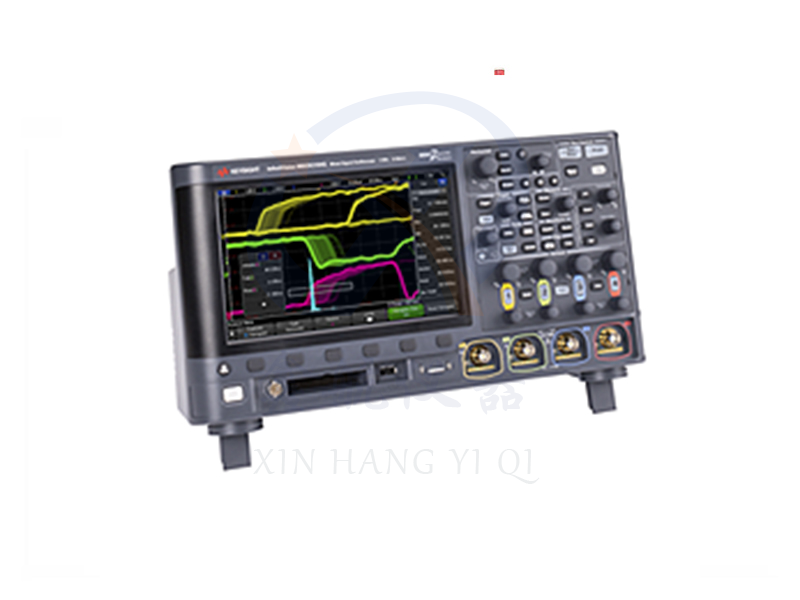

Key performance

1 GHz

4 analog channels

An 8.5-inch large-sized capacitive touch screen allows you to easily view and analyze signals

Unique area touch triggering technology allows you to easily isolate signals in just a few seconds

A capture rate of up to 1000000 waveforms per second presents you with more detailed signal details

Memory up to 4 Mpts can capture more data

Supports comprehensive upgrades and can expand measurement functions: increasing bandwidth, number of digital channels, and advanced application software at any time

The attachments include:

Embedded Software Suite (D3000GENB)

PathWave BenchVue oscilloscope software (BV004B)

Waveform and measurement result histogram

Multi in one instrument: oscilloscope (equipped with LAN/VGA connectivity module), protocol analyzer, frequency response analyzer (Bode plot), 20 MHz arbitrary waveform generator, 3-digit voltmeter, 8-bit counter and accumulator

N2843A passive probe: 500 MHz bandwidth, 10:1 attenuation ratio (1 per channel)

3-year factory warranty (90 day warranty for accessories without serial numbers, such as passive probes)

KeysightCare technical support

Calibration certificate, 3-year calibration cycle

Safe environment mode

Multi language interface and help system: English, Simplified Chinese, Traditional Chinese, Czech, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Polish, Thai, Turkish

The documentation CD includes localized user guides, service guides, and programmer manuals

Power cords that comply with local standards and localized labeling
