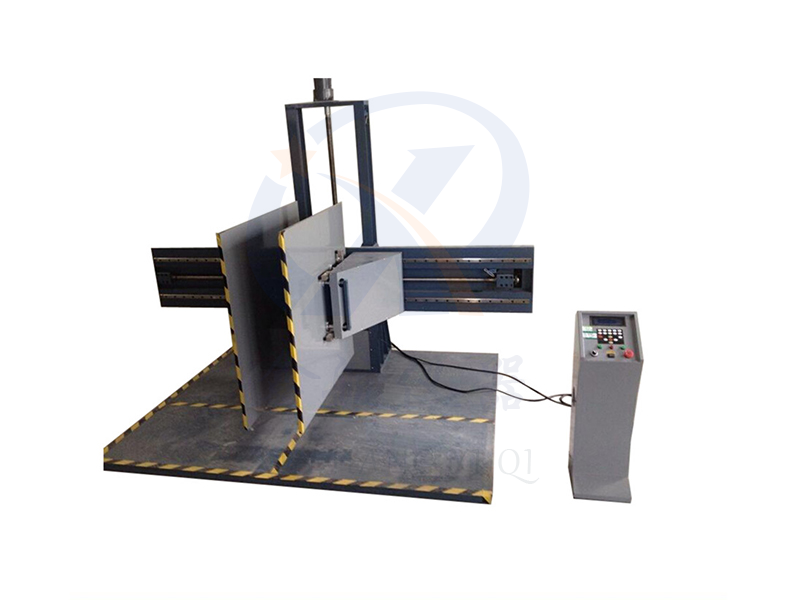

1、 Overview of this device:

Used to simulate the impact of the clamping force of the two clamping plates on the packaging and goods during loading and unloading, evaluate the clamping strength of the packaging, and apply to finished product packaging such as kitchenware, furniture, household appliances, toys, etc. Especially suitable for the packaging resistance testing required by Sears SEARS in the United States.

2、 Design standards:

ASTM D6055, American SEARS Enterprise Standard, or specific user non-standard requirements.

3、 Main technical parameters:

The clamp plate can achieve actions such as clamping, opening, rising, and falling, as well as cyclic cycles;

Equipped with force sensors and digital displays to calibrate clamping force;

1. Clamping force: 1000kg optional;

2. Sensor accuracy: 1/20000, measurement accuracy of 1%;

3. Height lifting displacement of clamping plate: lifting displacement 0-1000MM/lifting displacement accuracy based on ruler;

4. Clamping displacement expansion width: 200-2000MM, clamping displacement accuracy: ± 0.5MM;

5. Clamping experiment speed: 12.7M/mIN (adjustable);

6. Clamp size: 1200 x 1200mm;

7. Clamping space: maximum W1200 x D1200 x H1200mm;

8. Clamping space: minimum W400 x D1200 x H1200mm;

9. Clamping speed: 5-50mm/min adjustable;

10. Lift space: adjustable from 100 to 600mm, also according to user requirements;

11. Appearance: 2810 x D1900 x H2100mm;

12. Weight: approximately 1800Kg;

13. Power supply: 380V/50Hz;

14. Control: Using a microcontroller for easy operation and stable performance

15. Force unit: Kgf/N/Lbf

16. Power controller: LCD display shows the maximum breaking force value

17. Automatic shutdown mode: set the upper and lower limits for shutdown;

18. Transmission method: Variable frequency motor

19. Protection device: leakage protection, travel limit device;

20. Clamp sensor: four pieces
