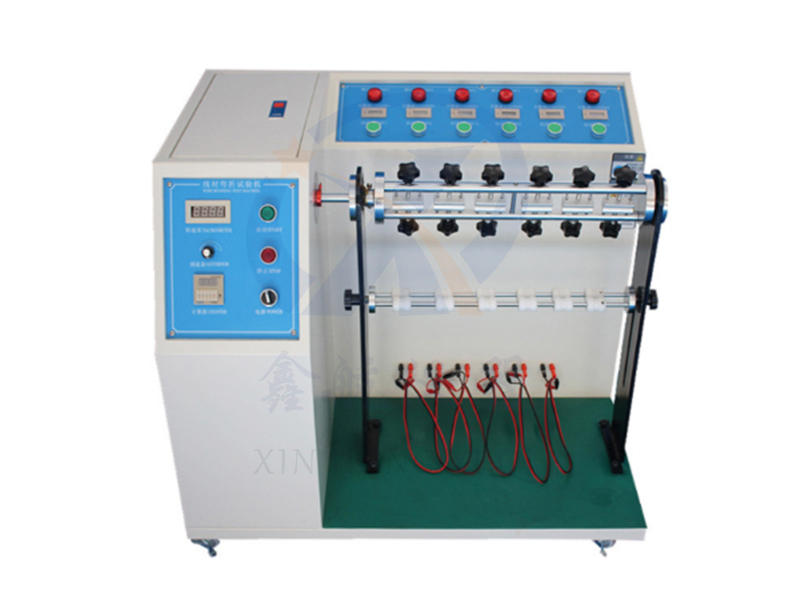

This testing machine complies with the provisions of relevant standards such as UL817 for "General Requirements for Flexible Cord Components and Power Cords". Applicable to manufacturers and quality inspection departments conducting bending tests on power and DC wires. This machine can test the bending strength of plug leads and wires. It is used to fix the sample in a fixture and apply weight. After bending it to a predetermined number of times, the wire breakage rate is detected, or when it cannot be powered on, the machine automatically stops to check the total number of bends.

Product features:

1. This chassis is treated with electrostatic spray paint and designed according to various standards. The overall design is reasonable, the structure is tight, and the operation is stable and accurate;

2. The test count counter can be preset, and the test conductivity counter automatically counts. When the number of times is reached, the machine automatically stops, and it has a power-off memory function, which is convenient and practical;

3. The experimental speed knob is adjustable, with LCD display. Customers can set it according to their own requirements, with a user-friendly design;

4. The bending angle is manually adjustable, and the indicator needle indicates the scale dial for better adjustment;

5. Six sets of workstations work simultaneously without affecting each other, counting separately. If one set is disconnected, the corresponding counter stops counting, and the machine continues to test to improve testing efficiency;

6. Six sets of anti slip and non easily damaged special handle tools for the test material, making it more convenient and fast to hold the product;

7. The test fixing rod can be adjusted up and down, and made according to standard requirements for better test results;

8. Equipped with hook load weights that can be stacked multiple times, making suspension more convenient.

Technical parameters:

1. Test station: 6 groups, conducting 6 plug lead tests simultaneously each time

2. Test speed: 10-60 times/minute digital display (indicated by a dial with an indicator needle, manually adjustable)

3. Bending angle: 10 °~180 ° (knob speed regulation, LCD display)

4. Bending angle display and adjustment: the indicator needle indicates the scale dial, and the eccentric shaft is manually adjusted

5. Main function: Each group calculates separately, and the machine automatically stops and saves data after the product is broken.

6. Swinging total counting instrument: 0-999999 times (can be preset and automatically stops when the number of times is reached)

7. Swinging conduction counter: 0-999999 times (conduction is automatically counted separately, with one group disconnected and counting automatically stopped)

8. Load weights: 6 each for 50g, 100g, 200g, 300g, and 500g

9. Handle test fixture: Six sets of anti slip and non easily damaged special fixtures for test materials

10. Test fixing rod: can be adjusted up and down to fix the lower end of the product, making the test more in line with standards

11. Case: Adopting anti-static powder coating and baking paint.

12. Volume: 85 x 60 x 75cm

13. Weight: approximately 70kg

14. Working power supply: AC 220V/50Hz

15. Power: 100W
