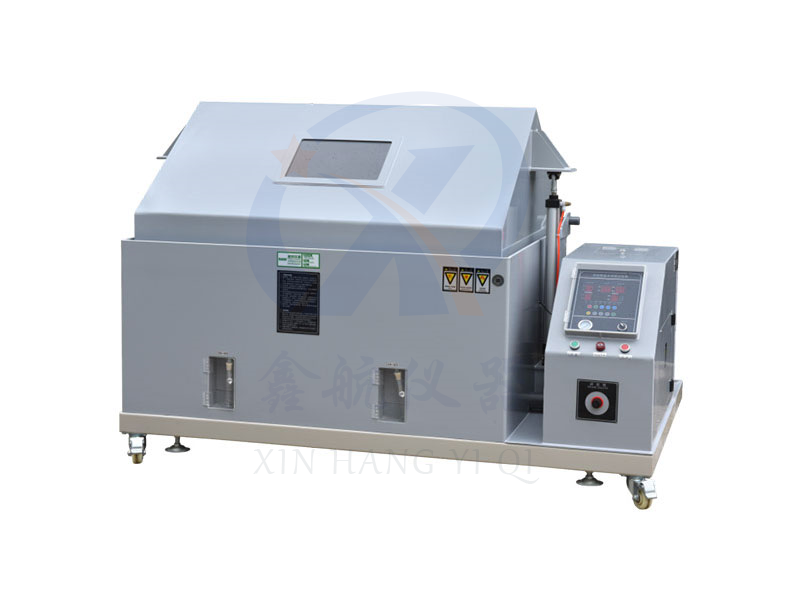

Salt water spray test chamber

型号：XH-YS-系列

This machine is specifically designed for surfaces of various materials. After painting, coating, electroplating, and anodizing treatment, its surface corrosion resistance is tested.

Contact Now

Product details
Requesting samples and information

Reliable quality: adopting an integrated ozone concentration, temperature and humidity controller, with high integration and good reliability performance

Easy to operate: display resolution temperature (0.1C), humidity (0.1RH), ozone concentration (1PPHM), PID set value control

Accurate measurement: Non ozone cold light source UV lamp with long lifespan and high accuracy, Bill Lambert digital system measurement software

Precision lifespan: The electromagnetic air pump provides air source, oil-free drying, ensuring the reliability of the air circuit system's long-term operation

National military standard: Equipment execution (compliance) Relevant standards: Meet GB/T2951.5-1997 standard

Product features

Applicable standard: GB/T5170.8 T2423.17 ISO-3768 3769 3770 ASTM-B117B268 JIS-D0201 H8502 H8610 K5400 Z2371.

technical specifications

Product model	XH-YW-60	XH-YW-90	XH-YW-120	XH-YW-160	XH-YW-200
Laboratory size	60x40x45cm	90x60x50cm	120x100x50cm	160x100x60cm	200x100x60cm
Equipment material	Imported PVC sheet&P P
Laboratory temperature	(Salt water test method) NSS ACSS 35 ℃± 1 ℃ Corrosion resistance test method CASS 50 ℃± 1 ℃
Pressure bucket temperature	(Salt water test method) NSS ACSS 47 ℃± 1 ℃ Corrosion resistance test method CASS 63 ℃± 1 ℃
Spray volume	1.0-2.0ml/80cm2h
PH value	(Salt water test method) NSS ACSS 6.5~7.2, Corrosion Resistance Test Method (CASS 3.0~3.2)
Laboratory volume L	108	270	600	960
Power supply/power	AC220V 2KW	AC220V 2KW	AC220V 3KW	AC220V 4KW	AC220V 5KW
