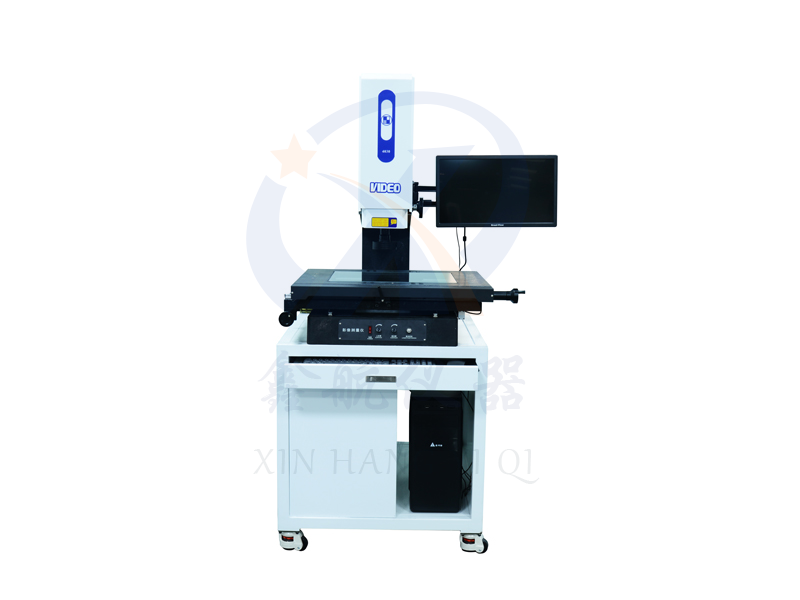

Instrument features:
The X/Y axis adopts imported high-precision V-shaped guide rails and ultra precision toothless screw transmission, with low noise, low vibration, and minimal dynamic geometric error deformation;
Using high-quality granite marble base and columns, it has good temperature stability and resistance to effective deformation.
Adopting precision die-casting aviation aluminum worktable, the overall weight of the machine is reduced, practical and beautiful, ensuring that the operator can easily move the X/Y axis when measuring the workpiece.
Finite element structural analysis and optimized structural design ensure the overall high accuracy and stability of the system for this series.
Adopting KMN integrated control box with independent intellectual property rights (Z-axis can be optionally equipped with servo motor/stepper motor drive to achieve electric lifting control, LED light source is controlled by the integrated control box computer.

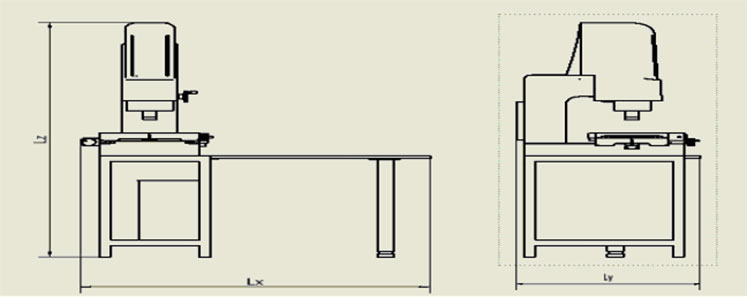

Outline layout diagram:
Machine parameters and configuration
|
model
|
DBC-2010
|
DBC-3020
|
DBC-4030
|
DBC-5040
|
|
X \ Y \ Z measurement stroke
|
200 * 100 * 180
|
300 * 200 * 180
|
400 * 300 * 180
|
500 * 400 * 180
|
|
Working distance
|
90mm
|
External dimensions
Lx * Ly * Lz
|
1280 * 661 * 1700
|
1321 * 800 * 1700
|
1400 * 1000 * 1700
|
1430 * 1100 * 1700
|
|
Maximum load
|
30Kg
|
30Kg
|
30Kg
|
30Kg
|
|
Instrument weight (approximately)
|
250Kg
|
300Kg
|
350Kg
|
400Kg
|
|
source
|
220V 10%, 50HZ-60HZ
|
|
Indication error
|
(3.0+L/200) μ M
|
|
computer
|
Core Dual Core 2.8/Memory 2G/Hard Disk 300G/19 "LCD Color Display
|
|
Contact type measuring head
|
RENISHAW MCP contact probe from the UK (optional)
|
|
Control transmission counting system
|
High precision toothless screw
|
|
High precision V-ball guide rail
|
|
KMN-600 multifunctional control box
|
|
one μ M enclosed glass grating ruler
|
|
Imaging system
|
American TEO high-definition color 1/3 "camera image card image magnification 28 X -180X
|
High definition continuous zoom lens/Magnification ratio 0.7-4.5X
Optional: 0.5X objective, magnification 15-115X
Optional: 2X objective, magnification 60-460X
|
|
Light source system
|
LED circular surface light source parallel contour LED cold light source
|
Measurement software:

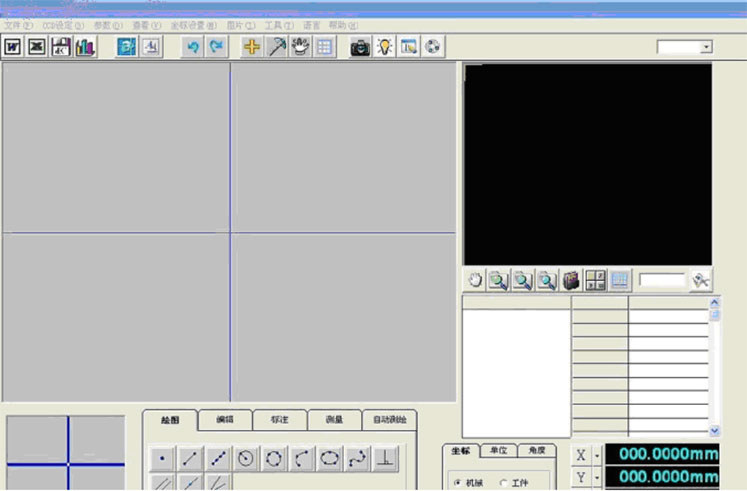

VMM2.2C is a simple to operate and powerful image measurement software that integrates complete geometric dimensions (points, lines, circles, arcs, distances, angles) and positional tolerances (straightness, true roundness, positional tolerance, parallelism, verticality) measurement functions.
KOMANI is widely used in industries such as mechanical processing, electronics, automotive, hardware, molds, precision manufacturing, plastic and rubber products, optoelectronics, mobile phones, PCB boards, electronic components, semiconductors, touch screens, LCD panels, medical equipment, cutting tools, bearings, terminals, etc.
Software features:
1. Coordinate translation and alignment make measurement more convenient and efficient, improving measurement efficiency
2. Convenient and fast element combination function, users only need to simply select graphics to combine points, lines, circles, distances, and angles
3. The measurement data is directly sent to AutoCAD, and the measured graphics can be saved in a dxf document
4. Measurement data can be sent to Excel for statistical analysis. ☆ Switching between Chinese, English, and traditional Chinese language interfaces
5. Cross line edge detection, edge color change, manual sampling

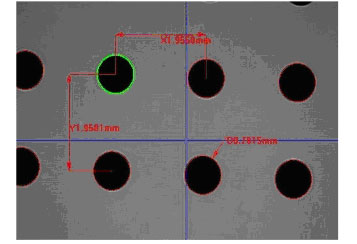

6. Multiple edge finding modes, computer automatic point picking, automatic recognition of circles and arcs, greatly improving point picking speed
7. Graphic enlargement, graphic reduction, graphic translation, graphic printing, graphic selection, deselection, graphic deletion
8. Set the grayscale, saturation, contrast of the image, and save the image in BMP format
9. 2D image calibration to achieve precise measurement of dimensions; Multiple measurement tools including lines, circles, angles, rectangles, polygons, etc. are used to measure parameters such as distance, diameter, angle, area, perimeter in real-time;

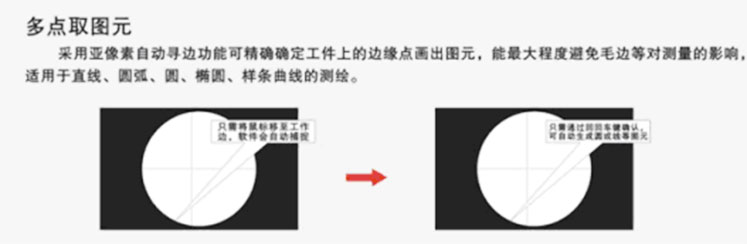

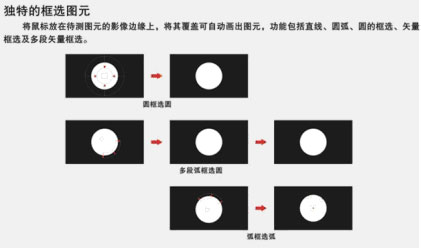

10. Element measurement: multi-point measurement of points, lines, circles, arcs, ellipses, specified number of points to measure rectangles, automatic identification of points, lines, circles, and arcs
11. Element construction: center point construction, intersection construction, midpoint construction, line construction, circle construction, angle construction.
12. Element presets: points, lines, circles, arcs
13. Automatic edge finding function, image sharpening, eliminating the influence of object edge burrs, improving detection accuracy and repeatability. Ring measurement, angle measurement, line width, line spacing measurement, etc.
