1、 Overview of this device:

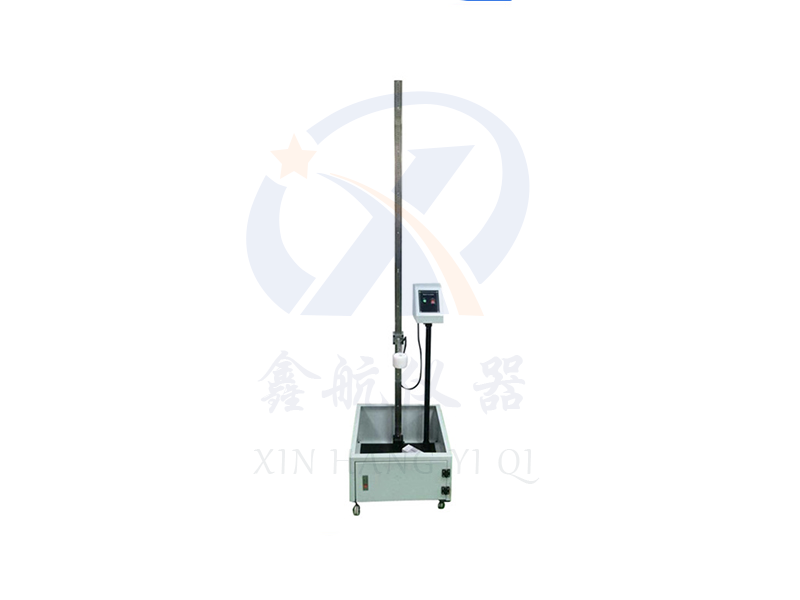

The safety glass drop ball impact testing machine is suitable for testing the impact strength of safety glass, architectural glass, and glass products. This machine will place the test product on the test bench, and freely drop a steel ball of the specified weight from the specified drop height onto the product, impact the product, and then inspect the appearance and performance in all aspects of the product. This device is designed in accordance with the 6.10 Falling Ball Impact Peeling Performance Method of GB/T9962-1998 Building Safety Glass Materials - Performance Specification and Test Methods for Safety Glass, and meets the requirements of impact testing for safety interlayers in buildings. Reliability testing standards: JIS R3205:1989, ISO/DIS125421 12543-6:1997 AS/NZS2208:1996, GB/T9962-1999.

2、 Main technical parameters:

1. Steel ball weight: 1045g, 2100g (optional according to requirements)

2. Weight tolerance of steel ball: ± 10g

3. Protective device: There are protective cages around the perimeter

4. Control method: Electromagnetic suction cup

5. Drop height: 0-1500mm (manually adjustable, steel ruler displays scale)

6. Drop height accuracy: 1mm

7. Drop rod: square rod

8. Volume (L x W x H): approximately 500 x 500 x 2000mm

9. Machine weight: 30kg

10. Working power supply: AC220V, 50HZ

3、 Product features:

1. The box is treated with electrostatic spray paint, and is surrounded by wire mesh, which has protection and impact buffering protection. The overall design of the machine is reasonable, the structure is stable, and the test is safe and accurate;

2. Adopting electromagnetic control method, it can accurately simulate the free falling state of steel balls, and the operation is simple and convenient;

3. The drop height can be adjusted, and the drop rod is equipped with a steel ruler with a minimum scale of 1mm and a right angle ruler, which can quickly and accurately adjust the drop height.
