Test purpose:
The final test result requires that the battery cannot explode or catch fire; In addition, the battery should not smoke or leak liquid, and the battery protection valve should not be damaged. Test whether other electronic and electrical products can work properly under low voltage, or if they are damaged

According to the standard:

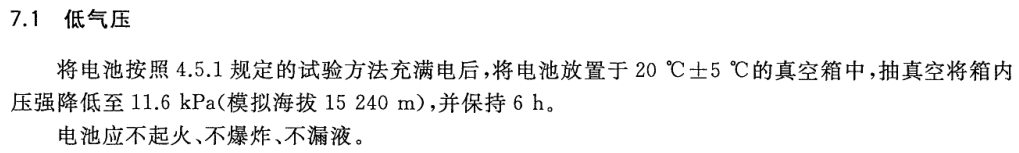

Meets standard: UN 38.3/UL 1642/GB 31241

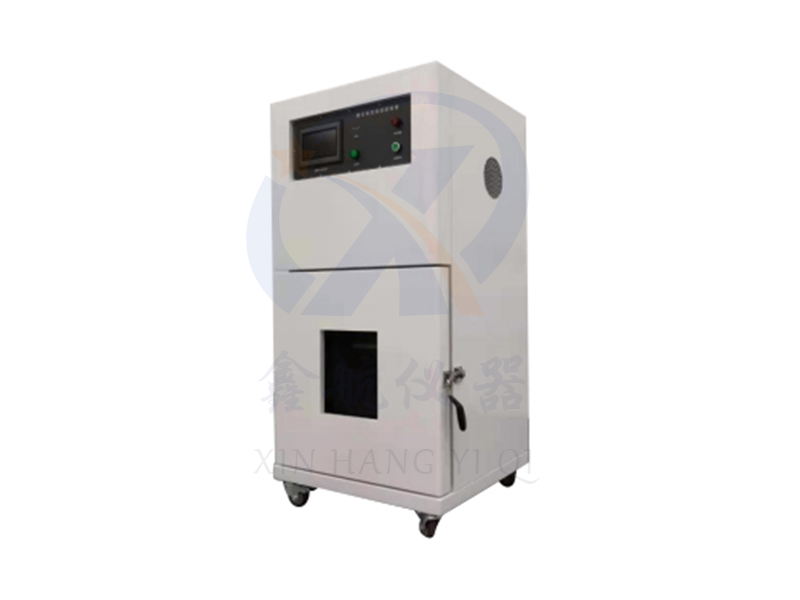

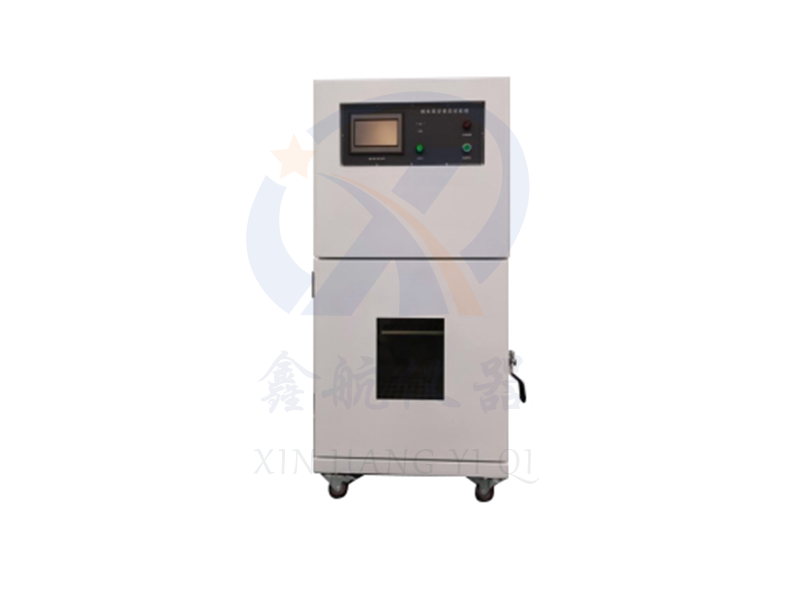

Box structure:
1. Internal size: 500 (width) × 500 (deep) × 500 (height) mm;
2. External dimensions approximately: 700 (width) × 650 (deep) × 1270 (height) mm, subject to the actual product;
3. Layer: The inner box is divided into two layers, with two distribution boards;
4. Visual window: The door has a 19mm tempered glass window, with a specification of W300 * H350mm;
5. The internal material is: 304 # stainless steel industrial plate with a thickness of 4.0mm, with internal reinforcement treatment and vacuum pumping without deformation;
6. The external material is: cold-rolled steel plate, 1.2mm thick, powder baked paint treatment; (Off white)
7. Hollow filling material: rock wool, with good insulation effect;
8. The sealing material for the entrance is: high-temperature resistant silicone strip;
9. Install movable brake casters that can be fixed in position and pushed freely;
10. The box structure is connected, and the operation panel and vacuum pump are installed below the machine;

Vacuum system:
1. Vacuum pumping control method (using 580 touch screen instrument), the entire process is fully automatic, and once the product is placed, the vacuum pumping can be started;

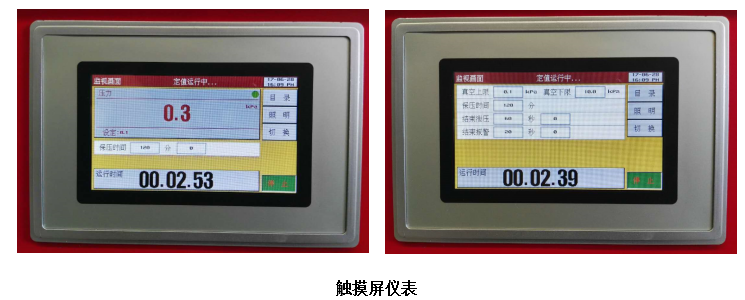

2. Control mode: The parameters such as vacuum upper limit, vacuum lower limit, pressure holding time, end of pressure relief, and end of alarm can be set arbitrarily (as shown in the figure);
3. The entrance of the machine is sealed with high-density silicone sealing strips;
4. Vacuum induction method: using diffusion silicon pressure sensors;
5. Vacuum display mode: displayed on the touch screen instrument panel;
6. Machine low-pressure range: 5.0KPa to 101.3KPa;
7. Minimum air pressure: 5.0KPa;
8. Control accuracy: ± 0.5kPa (≤ 5kPa), ± 1KPa (5KPa~40KPa), ± 2KPa (40KPa~80KPa);
9. Pressure relief rate: 15KPa/min ± 3.0KPa;
10. Vacuum pressure leakage rate: about 0.8KPa per hour;
11. Vacuum pump noise: ≤ 75DB or less;
12. Air pressure protection: When the air pressure protection value is exceeded, the vacuum operation will be automatically stopped, and pressure relief protection will be provided at the same time;

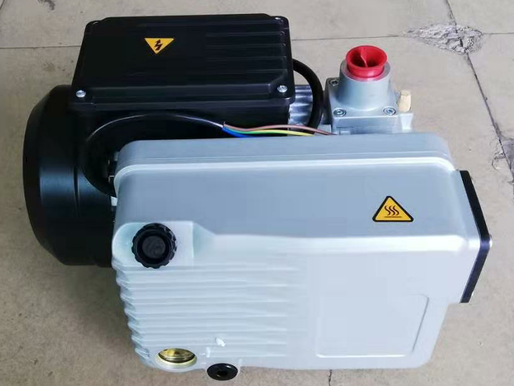

13. Vacuum pump configuration: YC0020 vacuum pump, motor power 220V/0.9KW (as shown in the figure)



Machine power supply:
1. Voltage 220V
2. Current 9.0A
3. Total power 2.0KW
4. Circuit protection system: grounding protection, fast fuse, etc
