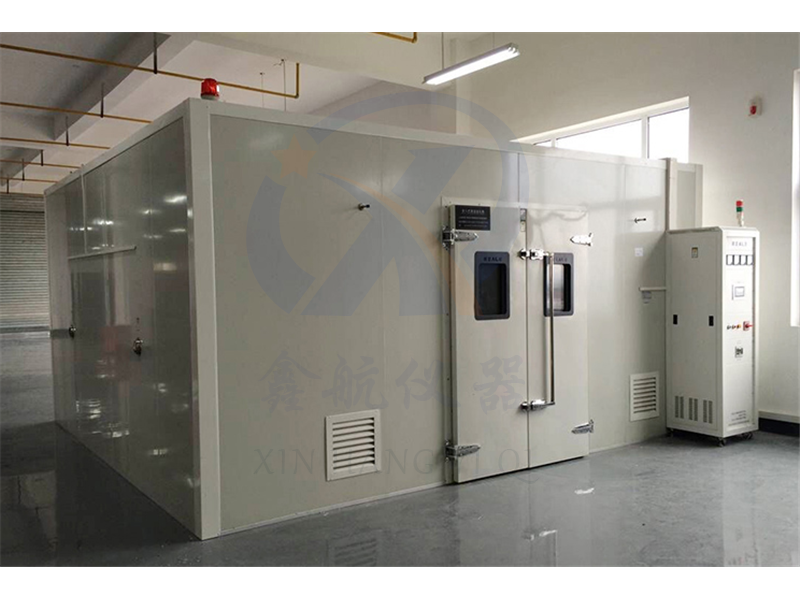

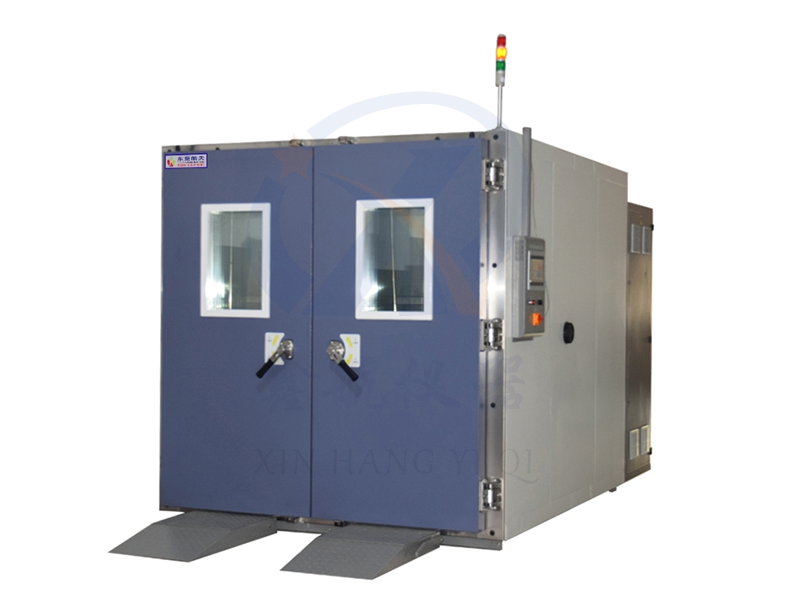

Walk-in high and low temperature test chamber

Walk-in high and low temperature test chamber

型号：XH-BRS-8000 series

The walk-in high and low temperature alternating test room is a testing equipment that uses technical means to simulate the conditions commonly encountered in the natural environment, and combines them with several times the harsh conditions of the natural environment to test the performance of samples. Mainly used in the defense industry, aerospace industry, automated automotive components, electronic and electrical components, plastics, chemical, pharmaceutical and other related industries, suitable for testing large quantities and volumes of products. Whether it is for heat and cold resistance testing, or providing large-scale temperature and humidity testing environments for large parts, semi-finished products, or finished products for the industry, it can be competent.

Contact Now

Product details
Requesting samples and information

Product features

1. With a wide temperature and humidity control range, it can meet various needs of users. By adopting a unique balanced temperature and humidity control method, a safe and accurate temperature and humidity environment can be achieved. It has stable and balanced heating and humidification performance, and can achieve high-precision and highly stable temperature and humidity control.

2. Using imported controllers from South Korea;

3. The refrigeration circuit is automatically selected, and the self-control device has the performance of automatically selecting and operating the refrigeration circuit according to the set temperature value, achieving direct starting of the refrigeration machine and direct cooling under high temperature conditions.

4. The inner door is equipped with a large observation window, which facilitates the observation of the test status of the test object.

5. Equipped with advanced safety protection devices - leakage circuit breakers, over temperature protectors, phase loss protectors, and water interruption protectors.

technical specifications

model		Step in constant temperature and humidity test chamber - Volume ABCD (Volume can also be customized according to requirements)
Internal volume (L) m ³		6m ³	8m ³	12m ³	24m ³	48m ³	110m ³
Studio size (WxDxH) (m) width, depth, and height		2x1.5x2	2x2x2	3x2x2	4x3x2	6x4x2	7x4.5x3.5
performance	Temperature and humidity control methods	Balanced Temperature and Humidity Control (BTHC) PID Intelligent Adjustment
	Product performance	Air cooled, the machine is air-cooled at a room temperature of 25 ℃ when unloaded.
	temperature range	A: -40 ℃~85 ℃ B: -20 ℃~85 ℃ C: -60 ℃~85 ℃ D: -70 ℃~85 ℃ High temperature can also be selected: 100 ℃, 125 ℃, 150 ℃
	Humidity range	20%~98% R H (10%~98% R.H, 5%~98% R.H; customized for special conditions)
	Temperature distribution uniformity	≤ ± 2 ℃
	Temperature/humidity control fluctuation	± 0.5 ℃/≤ ± 3% R.H
	Temperature/humidity deviation	≤ ± 2 ℃/75% R H<± 5% R H, 75% R H ≥ ± 3% R H,
	heating rate	About 2 ℃/minute; No load (temperature rate of 2-25 ℃/minute, linear/nonlinear, special conditions require customization)
	cooling rate	Approximately 0.7-1.7 ℃/minute; No load (temperature rate of 2-25 ℃/minute, linear/nonlinear, special conditions require customization)
Inner/outer shell material		SUS304 stainless steel/stock plate or anti rust treated cold-rolled steel plate spray coating or SUS304 brushed stainless steel
Refrigeration method		Fully enclosed dual stage compressor (air-cooled)/German BITZER compressor or German GEA blog compressor (water-cooled)
Control system/resolution		TAITONG TATO/Korean TECH ternary/0.01 ℃/0.1% R.H
Environmental temperature/humidity		Air cooling 5 ℃~26 ℃, water cooling 5 ℃~35 ℃/≤ 85% RH
source		three Φ 380VAC ± 10% 50/60Hz
