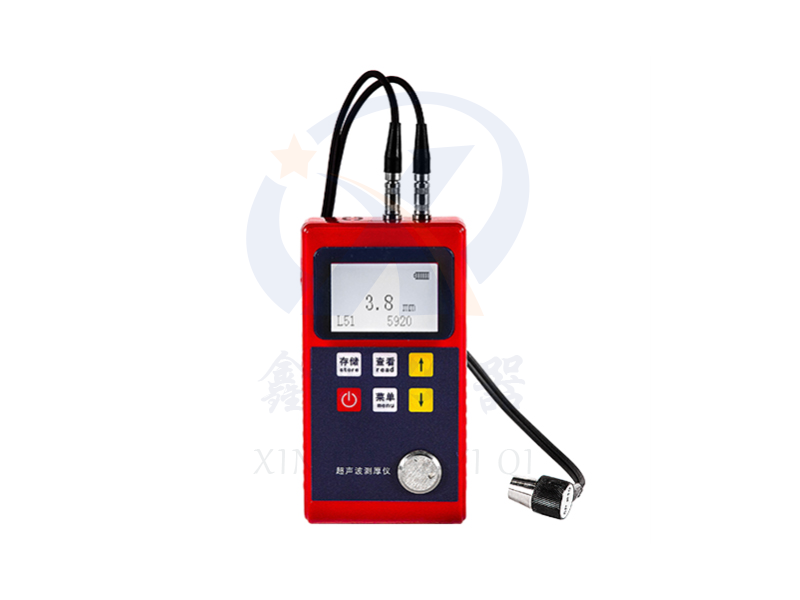

Ultrasonic thickness gauge

型号：XH-CH-320

Adopting the principle of ultrasonic measurement, it is suitable for measuring the thickness of various materials that can cause ultrasonic waves to propagate at a constant speed inside and reflect from the back.

This instrument can accurately measure various sheets and processed parts, and another important aspect is that it can monitor the thinning degree of various pipelines and pressure vessels in production equipment after corrosion during use. It can be widely used in various fields such as petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace, etc.

Contact Now

Product details
Requesting samples and information

major function

● For composite and unknown materials with known thickness, accurately measure sound velocity through reverse testing;

● Set upper and lower limit tolerances, if exceeded, an automatic alarm will be triggered;

● Status prompt function.

● The thickness of a good conductor suitable for measuring ultrasonic waves with a sound speed of 5920;

● With probe zero calibration

● Equipped with coupling status prompt function;

● Equipped with high brightness LED backlight display, convenient for use in low light environments;

● It has a residual power indicator function, which can display the remaining battery power;

● It has energy-saving functions such as automatic sleep and automatic shutdown;

Compact, portable, and highly stable, suitable for harsh operating environments, resistant to vibration, impact, and electromagnetic interference;

Both metric and imperial systems are available for selection.

Applicable materials

Suitable for measuring the thickness of a good conductor with a sound velocity of 5920 (m/s) for metals such as steel.

Basic Principles

The principle of ultrasonic thickness measurement is similar to that of optical wave measurement. The ultrasonic pulse emitted by the probe reaches the backtesting object and propagates within it. When it reaches the material interface, it is reflected back to the probe. The thickness of the tested material is determined by accurately measuring the time of ultrasonic propagation in the material.

Specification parameters

project	XH-CH-320
measuring range	0.75~350mm (steel, determined by probe) standard probe measurement range 1-250mm
Display resolution	0.1mm
Sound speed range	5920m/s
surface temperature	-10~60 ℃
Indication error	± (1% H 0.1) mm, where H is the actual thickness of the measured object
source	AAA alkaline battery (2 sections)
Operation time	About 200 hours
External dimensions	130 x 70 x 25mm
weight	Approximately 0.2kg (main engine)
Standard configuration	Host, L51 probe, AAA alkaline battery, coupling agent
Optional	Probe, coupling agent

Probe parameters

name	model	Frequency (MHz)	Probe diameter	measuring range	Minimum pipe diameter	characterization
Standard probe	L51	5	10mm	1.0mm~250.0mm (steel)	Φ 20mm x 3.0mm	Normal temperature use (<60 ℃)
KK probe	Kk	5	10mm	1.0mm~350.0mm (steel)	Φ 20mm x 3.0mm	Normal temperature use (<60 ℃)
Micro diameter probe	L77	7	6mm	0.7mm~50.0mm (steel)	Φ 15mm x 2.0mm	Used for thin-walled and small curved surfaces, used at room temperature (<60 ℃)
Coarse crystal probe	LZ2	2	22mm	2.5mm~350mm (steel)	20	Used for measuring coarse-grained materials such as cast iron, used at room temperature (<60 ℃)
High temperature probe	LG5	5	14mm	2.0-100mm (steel)	30	Used for measuring materials with temperatures below 300 ℃
