1、 Overview of this device:

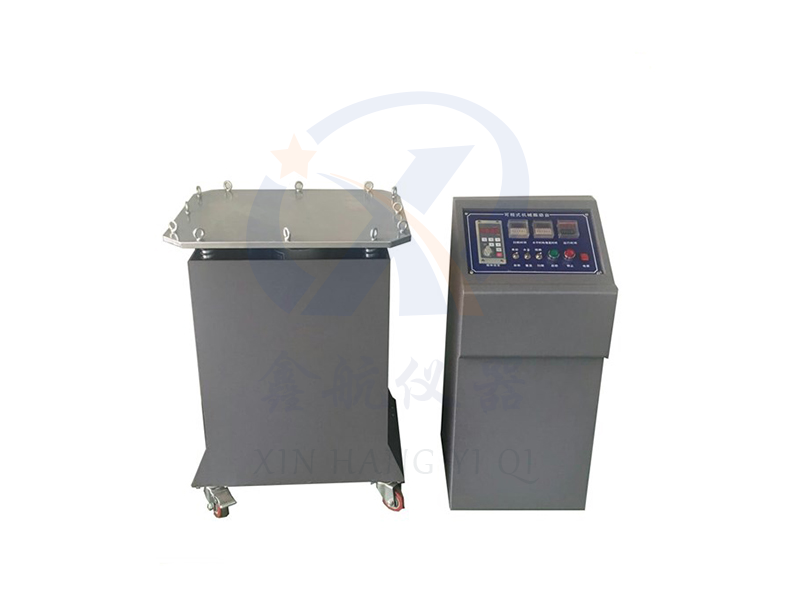

The mechanical vibration test bench is a three-dimensional motion vibration test simulator, which uses a high center exciter and is supported by air springs on the working table. It can complete the test tests specified in standards such as IEC68-2-5/GB2423.10-81, and is a powerful tool to enhance user products to enter the high-quality field. This machine is designed with low frequency and high load, and uses program control to control its working vibration frequency and amplitude. It is suitable for industrial production, research and development testing, and other vertical and horizontal vibration tests on products, testing the vibration resistance of products and machinery, testing the vibration resistance of electronic, electrical and other finished products or components, in order to understand the impact and changes of products on product quality or structure after being subjected to a certain frequency and amplitude of vibration, and simulating transportation vibration after packaging of exported products. It has the advantage of automatic frequency scanning, power frequency, and manual frequency modulation operation without stopping the machine. The working vibration amplitude of this machine does not change significantly with frequency adjustment. It analogizes various vibration environments encountered by products in various stages of manufacturing, packaging, and transportation, and is widely used in industrial production. It evaluates and inspects the performance and reliability of electronic, electrical, instrumentation, electrical products, and other products under sinusoidal and power frequency vibration, evaluating and inspecting product packaging, product structure, and product firmness.

2、 Mechanical vibration table function:

1. Adopting a self-developed measurement and control system with variable frequency motors to ensure more stable and reliable operation of the equipment;

2. The testing table is made of A3 board, precision machined, and ultra quiet;

3. The electric control box adopts a vertical box, with a beautiful structure, good stability, and convenient operation;

4. Sweeping and fixed frequency, frequency modulation operation mode, time control, suitable for testing requirements in different industries

5. Implement a testing platform that can meet the requirements of vertical vibration testing;

6. With safe and reliable protection functions

3、 Main technical parameters:

1. Maximum test load: 60KG

2. Frequency adjustment range: 0-60Hz adjustable

3. Test table size: 480 * 580mm

4. Amplitude: 0-5mm adjustable

5. Time setting: 0-99 hours and 99 minutes can be set arbitrarily

6. Frequency adjustment method; knob

7. Vibration direction: X-Y axis horizontal and vertical

8. Chassis: Using electrostatic powder spraying and baking paint

9. Power consumption: 1.5KW

10. Fixed products; bundled

11. Maximum acceleration; 9.8G

12. Single action selection; You can choose any direction of action and stop at the time of arrival.

13. Automatic selection; X. The Y-direction can switch actions and the arrival time stops.

14. Power supply: 220V/50Hz

15. Machine weight: 150kg

16. Cooling method: air cooling

17. Standard: GB/T2423.10
