Overview:
Integrated cast aluminum body, without deformation or displacement, the appearance paint adopts automotive baking paint technology, weight loading structure, stable performance, 5.1 inch large screen LCD display, and can switch hardness scale HV or HK; Menu style structure, automated experimental process, and easy operation; High definition optical system and objective lens, light source brightness can be adjusted by 20 levels, and hardness conversion function; Diagonal length D1 and D2 encoder inputs reduce human reading errors, automatic brick tower objective and pressure head can be automatically switched for accurate positioning; The measurement results and data processing can be output through a printer.
Main functions:
● 5.1 inch large screen LCD display, capable of switching hardness scale HV or HK;
● Menu style structure, automated testing process, and easy operation;
● High definition optical system and objective lens, with adjustable brightness of the light source up to 20 levels;
● Hardness conversion function;
Diagonal length D1 and D2 encoder inputs reduce human reading errors
The objective lens and pressure head can automatically switch for accurate positioning;
● Test results and data processing, which can be output through a printer
Application scope:
In terms of material research and scientific experiments, the low load Vickers hardness test is used to test the hardness of small precision parts, heat treatment, carbonization, quenching and hardening layers, surface coatings, hardness of steel, non-ferrous metals, thin sheet materials and fine wire materials, hardness near the cutting edge, hardness of dental materials, etc. It can also test the hardness and depth of the surface hardening layer. It can also be used to test non-metallic materials such as glass, jewelry, and ceramics that cannot be tested using the Rockwell test method and other relatively high test forces. It can follow the structure of metals and test the internal hardness of materials such as induction hardening or carburization.

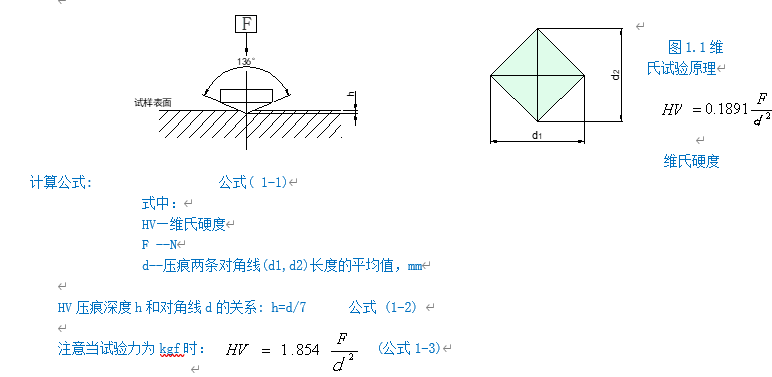

Vickers test principle:
The Vickers hardness test is conducted by using a 136 ° diamond indenter to press a specified test force (F) into the surface of the tested object. After maintaining the test force for a specified period of time, the test force is removed, and the diagonal (d) of the indentation on the surface of the specimen is measured using a micrometer eyepiece. The average pressure (N/mm2) borne by the conical surface area of the indentation is calculated, which is the Vickers hardness value. (See Figure 1.1 for details).
Technical data:
|
model
|
HVS30Z(Automatic turret)
|
|
Experimental force
|
1Kgf3Kgf5Kgf10Kgf20Kgf30Kgf
|
|
Exchange Scales
|
Rockwell, surface Rockwell, Brinell
|
|
measuring range
|
8-2900HV
|
|
Minimum measurement unit
|
0.0625μM (20Multiplier objective）;0.125μM (10Multiplier objective）
|
|
Test force holding time
|
5~60sAdjustable (per1Seconds as a unit)
|
|
measurement accuracy
|
Meet or exceedGB/T4340.2
|
|
Total magnification
|
Observation and measurement100X measure200X
|
|
data output
|
Built in printer output
|
|
loading control
|
Automatic (loading, holding, unloading)
|
|
Instrument weight
|
about45kg
|
|
Maximum size of the specimen
|
Maximum height165mm From the center of the pressure head to the inner wall130mm
|
|
source
|
AC220V±5%,50~60Hz
|
|
Execution standards
|
GB/T4340.2national standards JJG151Verification regulations
|
|
Optional Accessories
|
XYWorkbench(Customized)CCDMeasurement system, Knoop indenter, fine wire clamping table
|
Appendix 1
|
hardness
symbol
|
maximum error
Represented as a percentage of the specified hardness value for a standard block
|
|
Hardness,HV
|
|
50
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
600
|
700
|
800
|
900
|
1000
|
1500
|
|
HV0.1
|
5
|
6
|
7
|
8
|
8
|
9
|
10
|
10
|
11
|
|
|
|
|
|
|
|
|
HV0.2
|
|
4
|
|
6
|
|
8
|
|
9
|
|
10
|
11
|
11
|
12
|
12
|
|
|
|
HV0.3
|
|
4
|
|
5
|
|
6
|
|
7
|
|
8
|
9
|
10
|
10
|
11
|
11
|
|
|
HV0.5
|
|
3
|
|
5
|
|
5
|
|
6
|
|
6
|
7
|
7
|
8
|
8
|
9
|
11
|
|
HV1
|
|
3
|
|
4
|
|
4
|
|
4
|
|
5
|
5
|
5
|
6
|
6
|
6
|
8
|
|
HV2
|
|
3
|
|
3
|
|
3
|
|
4
|
|
4
|
4
|
4
|
4
|
5
|
5
|
6
|
|
HV3
|
|
3
|
|
3
|
|
3
|
|
3
|
|
3
|
4
|
4
|
4
|
4
|
4
|
5
|
|
HV5
|
|
3
|
|
3
|
|
3
|
|
3
|
|
3
|
3
|
3
|
3
|
3
|
4
|
4
|
|
HV10
|
|
3
|
|
3
|
|
3
|
|
3
|
|
3
|
3
|
3
|
3
|
3
|
3
|
3
|
|
HV20
|
|
3
|
|
3
|
|
3
|
|
3
|
|
3
|
3
|
3
|
3
|
3
|
3
|
3
|
|
HV30
|
|
3
|
|
3
|
|
2
|
|
2
|
|
2
|
2
|
2
|
2
|
2
|
2
|
2
|
|
HV50
|
|
3
|
|
3
|
|
2
|
|
2
|
|
2
|
2
|
2
|
2
|
2
|
2
|
2
|
|
HV100
|
|
|
|
3
|
|
2
|
|
2
|
|
2
|
2
|
2
|
2
|
2
|
2
|
2
|
|
Note:
1.When the diagonal of the indentation is less than0.020mmWhen, the table does not provide error values.
2.For the median, its maximum allowable error can be obtained by interpolation.
3.The median in the table is represented by0.001mmOr the average diagonal value of the indentation2%The maximum error is given, whichever is greater.
|
|
The content in the table is excerpted fromGB/T4340.2.
|

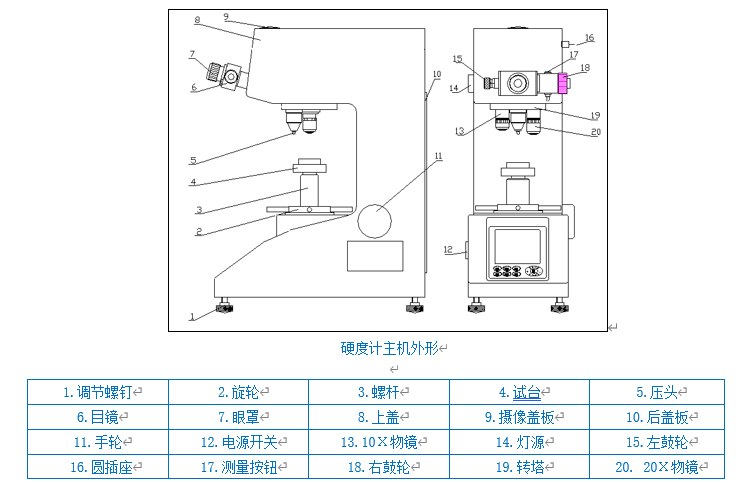

Appearance of hardness tester host:

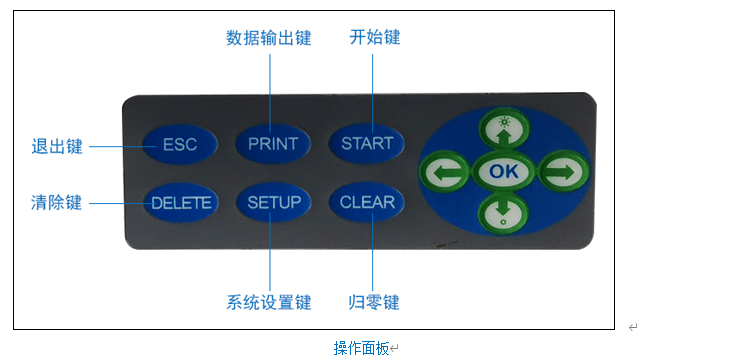

Introduction to panel key functions:

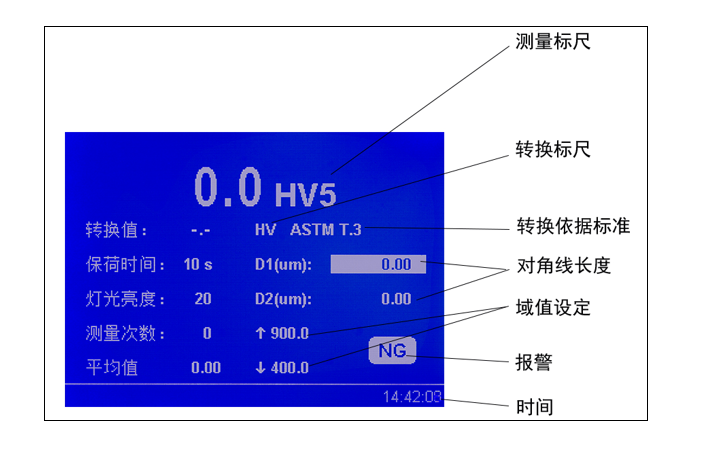

Use of hardness tester:
Specific measurement method for indentation:
The hardness tester meets the standard:
GB/T4340.1-1999 GB/T 4340.1-1999 Metallic Vickers Hardness Test Part 1: Test Methods
GB/T4340.2-1999 GB/T 4340.2-1999 Metallic Vickers Hardness Test Part 2: Verification of Hardness Machines
International standard ISO 6507-2:2018 "Vickers hardness test for metallic materials - Part 2: Verification and calibration of hardness testers"
ASTM E384-17 Standard Test Method for Knoop and Vickers Hardness of Materials
JJG151- Verification regulation of metal Vickers hardness tester
Standard configuration
|
name
|
quantity
|
name
|
quantity
|
|
Instrument host
|
1platform
|
objective lens20x10x,
|
various1only
|
|
Vickers indenter
|
1only
|
Weights（30/50KG）
|
3only
|
|
Vickers hardness block
|
2block
|
Large, medium“V”Test bench
|
various1only
|
|
Power cord
|
1root
|
10Micrometer eyepiece
|
1only
|
|
Product User Manual
|
1share
|
Product Qualification Certificate
|
1share
|
