Product Usage:
A xenon arc lamp that simulates full sunlight spectrum can reproduce destructive light waves in different environments, providing corresponding environmental simulation and accelerated testing for scientific research, product development, and quality control.
To evaluate the light and weather resistance of certain materials under the action of high-temperature light sources, aging tests are conducted on material samples exposed to xenon arc lamp illumination and thermal radiation. They are mainly used in automobiles, coatings, rubber, plastics, pigments, adhesives, fabrics, aerospace, ships, electronics, packaging industries, etc.

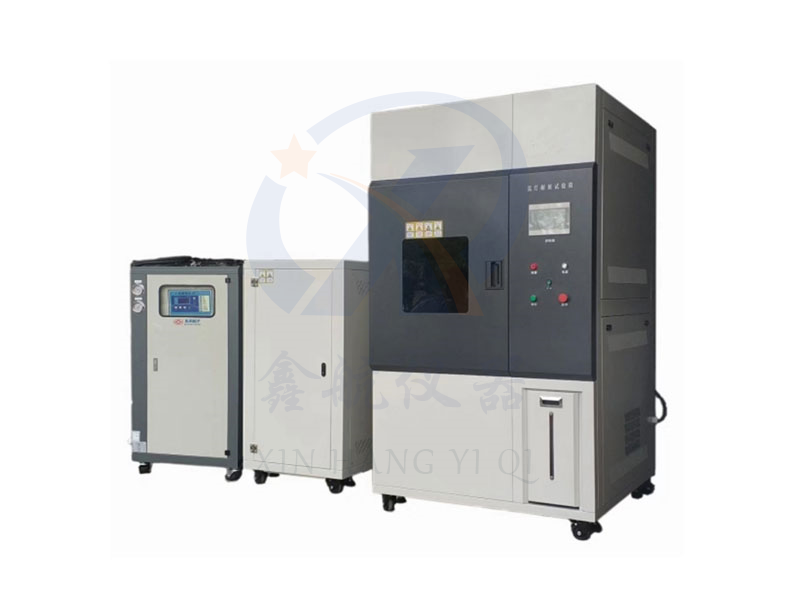

This xenon lamp climate resistance testing machine can be used for selecting new materials, changing existing materials, or evaluating the durability changes after material composition changes. It can simulate the changes in materials exposed to sunlight under different environmental conditions very well.
Product features
Compliant with standards:
AATCC16, ASTM G155, GB/T18244-2000, GB/T12831-91, GB/T8430-1998, ISO 105-B04:1994, ISO4892-2:2006, GB/T16422.2-2014, GJB150.7A-2009, GB/T1865-2009, ISO11341:2004, GB/T2423.24-2013, IEC60068-2-5:2010, etc.
technical specifications
|
model
|
XH-XDS-280L
|
WBE-XDS-500L
|
XH-XDS-1000L
|
|
Inner box size W * D * H (mm)
|
six hundred × six hundred × eight hundred
|
eight hundred × eight hundred × eight hundred
|
one thousand × one thousand × one thousand
|
|
Outer box size W * D * H (mm)
|
one thousand and two hundred × one thousand three hundred and forty-five × one thousand and nine hundred
|
one thousand and four hundred × one thousand five hundred and forty-five × two thousand and one hundred
|
one thousand and six hundred × one thousand seven hundred and forty-five × two thousand and three hundred
|
|
Rotary disc diameter (mm)
|
Ф four hundred
|
Ф six hundred
|
Ф eight hundred
|
|
temperature range
|
RT 10 ℃~70 ℃
|
|
Black label temperature
|
Adjustable from 40 ℃ to 100 ℃ (light cycle); 25-85 ℃ (dark cycle)
|
|
Humidity range
|
30% to 98% RH (in the dark); 20% to 60% RH (under illumination)
|
|
Temperature uniformity
|
± 3 ℃
|
|
Temperature accuracy
|
± 0.1 ℃
|
|
Humidity accuracy
|
± 1% RH
|
|
Temperature and humidity sensors
|
PT100 Ω/MV platinum resistor
|
|
Rotary speed
|
1-3 r/min
|
|
Lamp tube source
|
1 water-cooled lamp tube (WBE brand) or imported Asia Pacific brushed brand
|
|
Lamp Lifetime
|
About 1200 hours
|
|
Lamp wattage
|
6.5KW
|
|
Effective exposure area
|
3760cm2~7500cm2
|
|
Light cycle time
|
1-999H, M, S continuously adjustable
|
|
Rainfall time
|
1-9999 minutes of continuous and adjustable interval rainfall
|
|
Rainfall cycle
|
Adjustable rainfall interval (interruption) from 1 to 240 minutes
|
|
Spray cycle
|
18min/102min or 12min/48min (spray time/no spray time)
|
|
Rain water pressure
|
0.12-0.15Mpa
|
|
Spray nozzle aperture
|
Ф 0.8mm
|
|
Sample sampling size
|
75mm × 150mm
|
|
Filter type
|
Window glass filter, sun filter, UV filter, can choose any one
|
|
Xenon lamp radiation intensity
|
290-2450nm band 400-1120W/m2 or 290-800NM, 550W/M2
|
|
420nm band, 0.55-1.1W/m2
|
|
340nm band, 0.35-0.7W/m2
|
|
300-400nm wavelength band, 40W-60W
|
|
Using materials
|
Outer box material: SUS201 stainless steel or cold rolled plate baked paint
|
|
Inner box material: SUS304 high-quality stainless steel
|
|
Sample holder material: SUS304 high-quality stainless steel
|
|
Door frame: High and low temperature aging resistant silicone rubber door sealing strip
|
|
Usage conditions
|
Voltage: 380 ± 10% V, 50 ± 1% Hz, power 15KW three-phase five wire system
|
|
environment condition
|
Temperature 5 ℃~30 ℃ Relative temperature ≤ 85% RH Pressure 86kPa~106kPa
|
|
Safety protection devices
|
Leakage, short circuit, over temperature, water shortage, motor overheating, overcurrent protection
|
