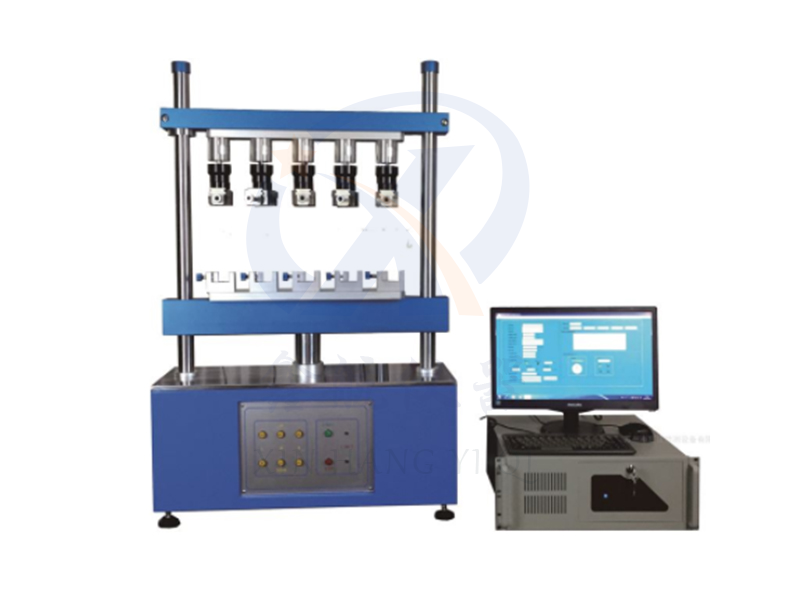

The vertical insertion and extraction force life testing machine adopts a vertical structure and a multi station design, which can test five products simultaneously. High testing efficiency. Suitable for various connector insertion and extraction tests, using embedded microcomputer measurement and control technology, it can simultaneously display insertion force, extraction force, real-time force values, and has frequency settings, adjustable speed travel, and displays speed values, automatic zeroing, unit conversion, etc. Motor driven, screw driven, with accurate stroke setting, it is a cost-effective connector terminal plug insertion and extraction force life testing machine in the market

Functional parameters of vertical insertion and extraction force life testing machine:

Equipped with overload load setting and automatic stop alarm function

Equipped with automatic saving function, it can automatically save ten points and calculate the average value

Use a list format to test the saved test data

Users with an administrator password can change their startup password.

Use software to calibrate the load value.

Using all Chinese prompts to set internal functions, easy and easy to operate.

Frequency range: 999999

Transmission method: screw

Display method: LCD display

Insertion and extraction force range: 0-50kg

Example of stroke adjustment: 0-150MM

Test speed: 1-300mm/min

Two unit conversions: N, KG, IB

Machine size: 400 (D) * 350 (W) * 1000 (H) mm

Working voltage: single-phase 220V
