1、 Product application:

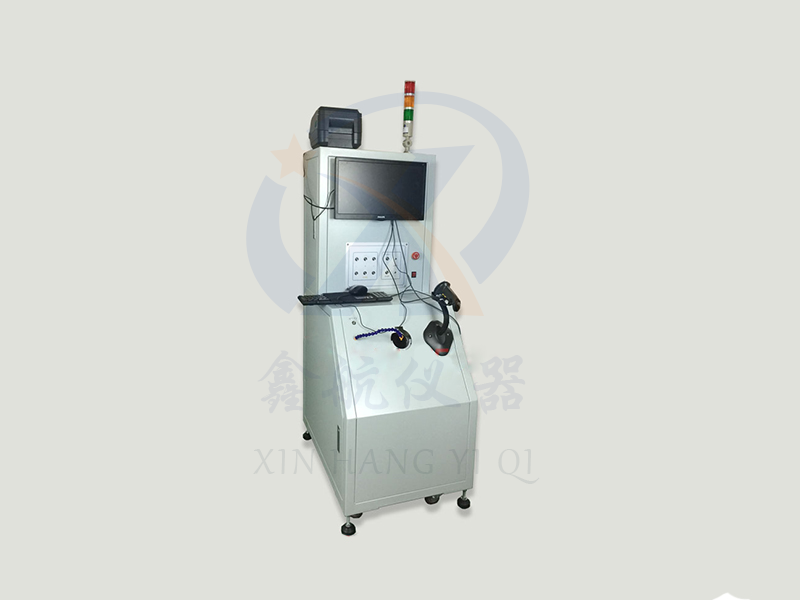

Designed for batch testing of insertion and extraction forces on the assembly line of charging guns, this machine uses your company's half product mold and cylinder to achieve fast clamping testing and product replacement. Combined with our patented program software, it can obtain completely accurate insertion and extraction forces. Using WINDOWS and Chinese screen settings in the window, the operation is simple and convenient, And all data can be stored (test conditions, displacement curve chart, life curve chart, inspection report, etc.), the machine can set the upper and lower limits of insertion and extraction forces, and if the measured force exceeds the range, an alarm output can be triggered. It is a comprehensive and cost-effective testing instrument for charging gun assembly lines.

2、 Machine features:

※ Printable storage graphics (displacement curve diagram, lifespan curve diagram, inspection report)

※ Test data is stored on the hard drive (each data can be stored for an unlimited number of times)

※ The testing conditions are all set by the computer screen, which is convenient and fast (including insertion and removal travel, speed, pause time, etc.)

※ The header content of the inspection report can be modified at any time (both in Chinese and English)

※ The inspection report can be converted to Excel ACCESS as editor

The machine is equipped with an automatic barcode tracing test, and after the barcode is traced, the test data is automatically stored in a barcode named document. Our company only provides scanning gun interfaces and scanning guns. Our company can create hanging points for scanning guns that are convenient for employees to access.

The machine is equipped with an automatic pneumatic locking fixture and has a suitable height, making it easy for production line personnel to hold the charging gun and lean against the fixture. The machine automatically clamps and begins testing; (Our company only provides a half shaped positioning mold for your company's sample)

※ It can automatically judge the test data, and a three color light is used on the top of the machine to indicate a good product green light, and a defect alarm is displayed in red, etc;

※ The test monitor can be used for wall mounted hanging at a height and position that is convenient for employees to observe;

Equipped with a cleaning nozzle for female connectors, press the button to automatically blow air for ten seconds.

※ Free import of online testing data into MES system

3、 Machine specifications:

Maximum load specified: 500N

Minimum decomposition degree: 0.01

Maximum measurement height: 150mm

Minimum fine adjustment distance: 0.01mm

Measurement speed range: 0-300mm/min

Transmission mechanism: ball screw

Drive motor: servo motor

Appearance size: 400 * 600 * 1800mm

Weight: approximately 100Kg (machine)

Power supply: AC220V, 50Hz
