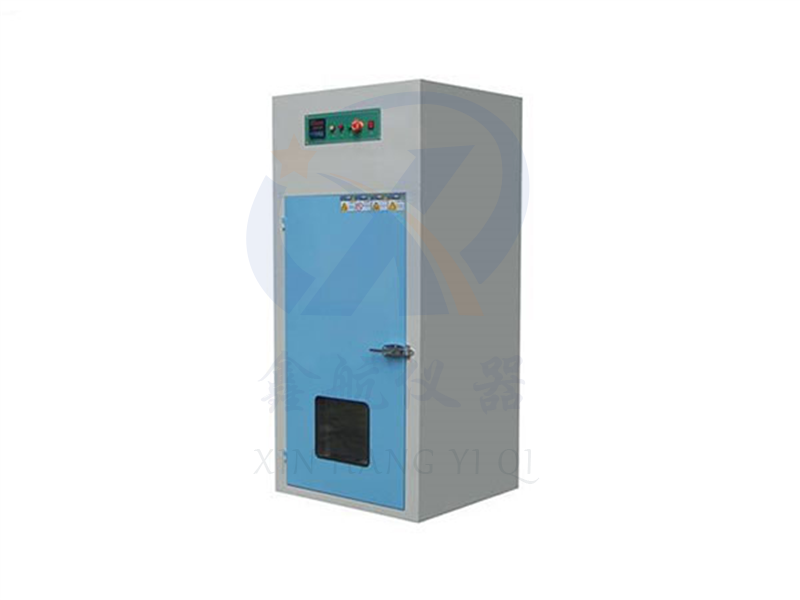

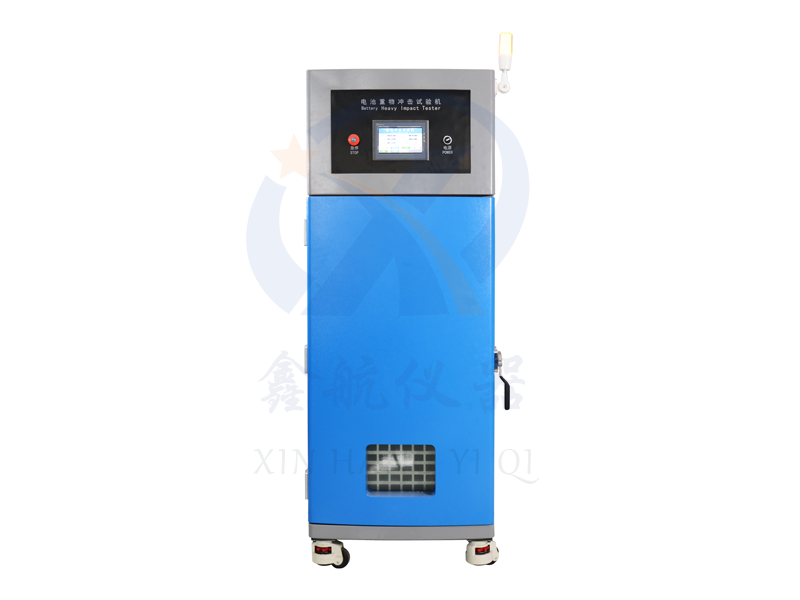

Battery heavy impact testing machine

型号：XH-DC-8304

Contact Now

Product details
Requesting samples and information

Product Introduction

The test sample battery should be placed on a flat surface, with a rod with a diameter of 15.8mm (5/8 inches) placed in a cross pattern at the center of the sample. A 9.1kg weight dropped from a certain height of 610 ± 25mm onto the sample.

Compliant with standards

IEC62133, UN38.3, UL1642:1995, UL2054:1997, GB/T18287-2000, GB 8897.4-2002 and other standards.

technical parameter

model	XH-DC-8304
Falling ball weight	9.1kg or 10kg
Impact height	610 mm or 1000mm
Impact mode	Lift the falling ball to a certain height and release it, allowing it to fall freely in the vertical direction without tilting or shaking
Horizontal bar	15.8mm (5/8 inch) steel rod
Inner box material	SUS # 201 stainless steel plate
Outer box material	Cold rolled steel plate painting treatment
Forced tightening	Silicone foam tightening 1 strip
Exhaust fan	Located on the back of the box, with a diameter of 120mm. And reserve exhaust ducts for easy connection of personnel to high-power exhaust fans in the laboratory
Box door	Single door, double door, observation window (tempered glass), cold pull handle door lock
Upper and lower impact surfaces	Stainless steel plate
External dimensions	six hundred and twenty × six hundred and eighty × 1255 (width * depth * height)
Weight	Approximately 150kg
Using voltage	220V ± 10% 50HZ
Usage environment	Allow to use environment from 0 to 30 ℃
Performance assurance environment	5~25 ℃
