1、 Overview of this device:

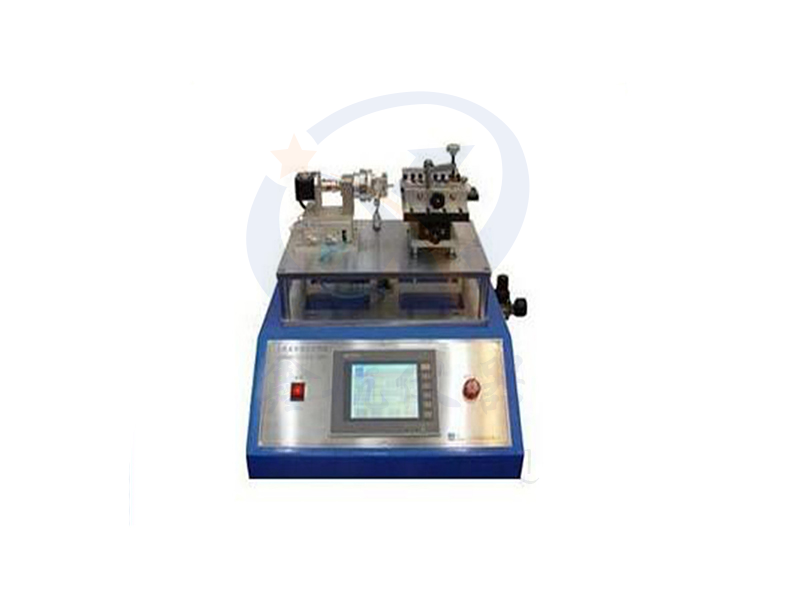

The headphone rotary plug and unplug testing machine is a device used to test the reliability of mobile phone headphone interfaces and headphones. The structure is reasonable and unique, with sufficient applicability to different models of mobile phones. The testing process of earphone insertion and removal → rotation → re insertion and removal can be achieved to avoid unilateral wear and tear. The earphone clamping part can float slightly, which can fully simulate manual insertion and removal of earphones, avoiding wear and tear caused by different axes between the earphones and the jack. The equipment operates stably, with low noise and maintenance free. Can test the durability of the phone headphone jack and the reliability of the headphones.

2、 Usage:

Simulate the operation of inserting and removing the headphone plug during user use.

Insert the headphone plug into the phone → The phone is fixed in an adjustable fixture → The headphone is fixed in the fixture of the insertion and removal mechanism → The pneumatic slide drives the headphone to be pulled out → The rotating motor drives the headphone plug to rotate axially at any angle or a specified angle (± 180 °) → The pneumatic slide drives the headphone plug to be inserted again, continuing to the next working cycle.

3、 Main technical parameters:

1. Number of workstations: 1 per unit

2. Operation mode: Touch screen

3. Action execution components: * * C pneumatic slide, stepper motor

4. Insertion and removal frequency (exercise rhythm): 1-60 times/minute (adjustable)

5. Counter: 6 bits (built-in)

6. Voltage: 220V; Power: 100W

7. Air pressure: 0.4-0.6Mpa

8. External dimensions: 600mm * 550mm * 550mm; Weight: 35 kg
