summary
Portable metallographic microscope, also known as on-site metallographic microscope. Due to its ability to ensure the integrity of the workpiece without damaging it during testing, it is widely used in the manufacturing and inspection of aviation, machinery, vehicles, metallurgy, rolling mills, boilers, and pressure vessels, as well as in industries such as petrochemicals, railways, shipbuilding, power plants, equipment installation, large molds, testing, quality supervision, and physical and chemical laboratories. It can also be applied in factories and laboratories for the identification of casting quality, raw material inspection, or research and analysis of metallographic structure after material treatment.
major function

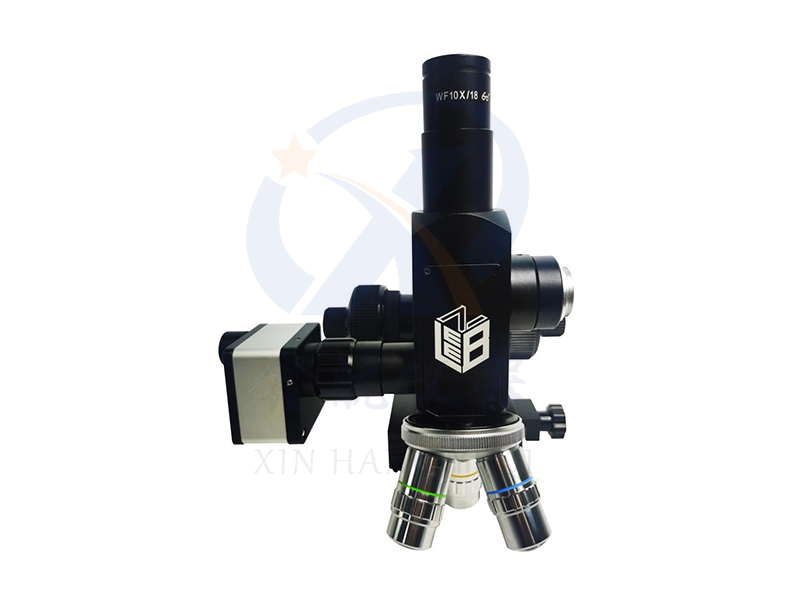

LM20 is a series of new metallographic microscopes used for on-site observation and analysis.
● Adopting a standard 195 optical system and equipped with a flat field achromatic metallographic objective;
● Wide field of view, uniform field of view background, high imaging resolution, clear quality, high eye points, and more comfortable observation;
● Adopting a 3W high fidelity true color LED light source, supporting power supply for devices such as adapters, power banks, mobile phones (reverse charging), and in car power supplies;
● Adopting a coarse and micro coaxial focusing mechanism to meet the industry standards set by the country for metallographic microscopes, with a two-stage differential handwheel to achieve fast and accurate focusing on the target;
The camera can observe simultaneously with the observation tube and synchronize imaging through smart devices such as smartphones and tablets;
Optional digital camera device (industrial camera), metallographic rating software, and more accessories can be upgraded to adapt to more working conditions;
Applicable occasions: factory inspection, field metal observation, boiler surface inspection, teaching and experimental classrooms, etc;
Application scope: metals, minerals, ceramics, electronics, etc.
technical data
|
Magnification range
|
40×~1000X
|
|
eyepiece
|
10X Large field of view, high eye point flat field eyepiece, number of fields of view Φ20(Unit:Mm）
|
|
objective lens
|
Limited distance flat field metallographic objective:4X/10X/20X/40X/50X/100X（Dry）
|
|
Observation tube
|
Simultaneous observation of eyepiece observation tube and camera
|
|
Objective lens converter
|
Three hole tilt angle converter
|
|
Coarse and micro focusing device
|
Coarse and micro coaxial focusing, coarse stroke adjustment30mmFine tune each lap0.2mm, grid value2 µ mCoarse adjustment with elastic adjustment
|
|
XYMobile station
|
Magnetic base with switch, three-layer mechanical mobile platform, suction capacity up to125KG
|
|
Light source electrical
|
3WTrue colorLEDPower supply for devices such as adapters, power banks, mobile phones (reverse charging), and in car power supplies
|
|
Camera interface
|
AdjustableC-MOUNTadapter interface
|
|
Digital camera system
|
Configurable camera device（CMOS/CCDIndustrial cameras and software systems
|
|
Digital photography equipment
|
ConfigurableCANONNIKONOLYMPUSWaiting for various digital cameras
|
|
Metallographic analysis system
|
Popular microscopy software, professional metallographic analysis and rating software, etc. are optional
|
|
Instrument weight
|
Net weight:3kg Gross weight:8kg(Standard machine, handle box, cardboard box)
|
|
Instrument size
|
Instrument size:24(High)*22 * 22 Packaging size:38 * 45 * 26(Unit:Cm）
|
Product model
|
name
|
LM20-5
|
|
Host（3WLED
|
●
|
|
Coarse and micro coaxial focusing mechanism
|
●
|
|
WF10X/20mmHigh eye point flat field eyepiece
|
●
|
|
WF12.5Xeyepiece
|
●
|
|
Three hole tilt angle converter
|
●
|
|
Finite field flat field metallographic objective4X
|
○ ○
|
|
Finite field flat field metallographic objective10X
|
●
|
|
Finite field flat field metallographic objective20X
|
●
|
|
Finite field flat field metallographic objective40X
|
●
|
|
Finite field flat field metallographic objective50X
|
○ ○
|
|
Finite field flat field metallographic objective100X
|
○ ○
|
|
XYMobile station with switch magnetic base
|
●
|
|
Three way camera interface
|
●
|
|
DCsource
|
●
|
|
5000MApower bank
|
●
|
|
Product manual
|
●
|
|
WIFIDigitalCCD 500ten thousand
|
●
|
|

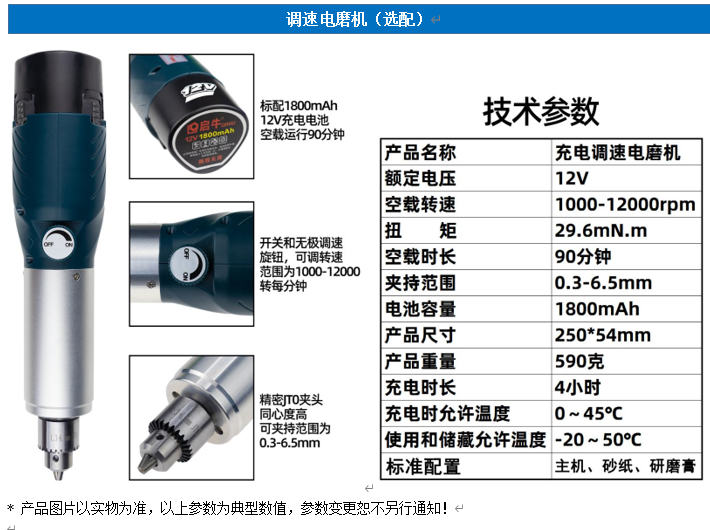

Polishing and polishing equipment
|
●
|
|
The symbol "●" is a standard configuration component "○" is an optional component
|
