Technical parameters:

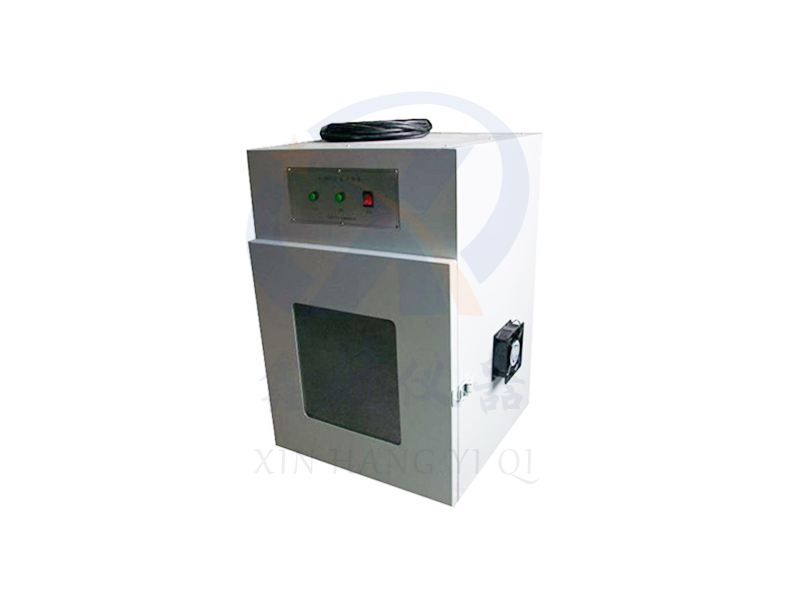

The size of the explosion-proof box is 500X500X500MM;

Inner box material: 1.5mm thick stainless steel;

Outer box material: cold-rolled steel spray treated;

Single door box opening;

Install one 300X300 explosion-proof glass on the explosion-proof door, through which the battery test status inside the box can be seen;

The explosion-proof door is connected to the box by a strong hinge, and is equipped with an explosion-proof lock;

Lay insulating rubber at the bottom of the test chamber to prevent external short circuits of the battery;

Install a high brightness energy-saving lamp on the top of the box to illuminate the entire testing space;

Install a powerful exhaust fan at the back of the box, which can discharge smoke outside the box when there are smoke parameters;

Open a supplementary air vent on the side of the box, and seal it with a stainless steel cover when not in use;

Two 2.5 square power lines are connected inside the box, and two insulated handle clamps are installed at the wire ends for clamping

Live the positive and negative poles of the battery, and the length of the external power cord can be determined according to the actual situation
