1、Overview of this device:

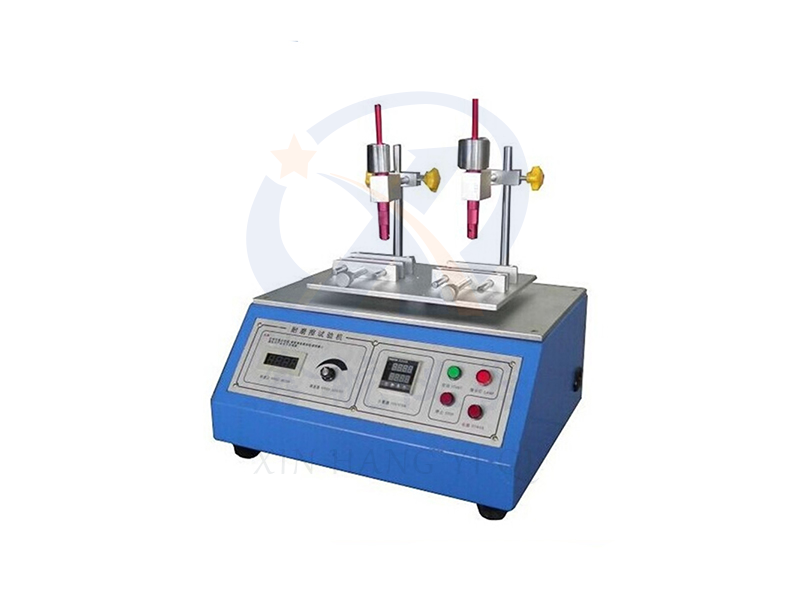

The wear-resistant and friction testing machine adopts a variable convex shaft structure, which allows the machine to move left and right with the motor in dual positions. It also has the function of adjusting the speed and stroke during testing (without shutting down), which is very easy to adjust. It can display the testing speed and set the number of tests; In order to achieve wear resistance and friction life tests on various printed materials such as oil spray and screen printing on the surface of products, the friction media used are erasers, cotton cloth, alcohol, etc. This device is widely used in manufacturing industries such as plastics, wires, appliances, leather, mobile phone buttons, keyboards, etc. (The product placement surface is treated with aluminum oxide, with a bright appearance)

2、Main technical parameters:

1. Drive motor: Precision grinding motor 60W

2. Total count: 0-999999 times, can be manually set arbitrarily

3. Speed: 10-60c.p.m adjustable digital display

4. Transmission structure: cam structure

5. Maximum testing stroke: 60mm

6. Load weights: 50, 100, 200, 300, 500g each, two ≤ 2g

7. Friction medium: alcohol self prepared, 2 erasers, 4 HB pencils

8. Alcohol smelting tools: 70g, 2 sets

9. Leather polishing tools: 70g, 2 sets

10. Pencil smelter: 70g, 2 sets

11. Total power: 200W

12. Working power supply: AC220V/50Hz/5A

13. Approximately volume: 40 * 35 * 50cm

14. Weight: Approximately 30Kg

1 set of operation manual, 1 power cord, and 1 set of hexagonal socket
