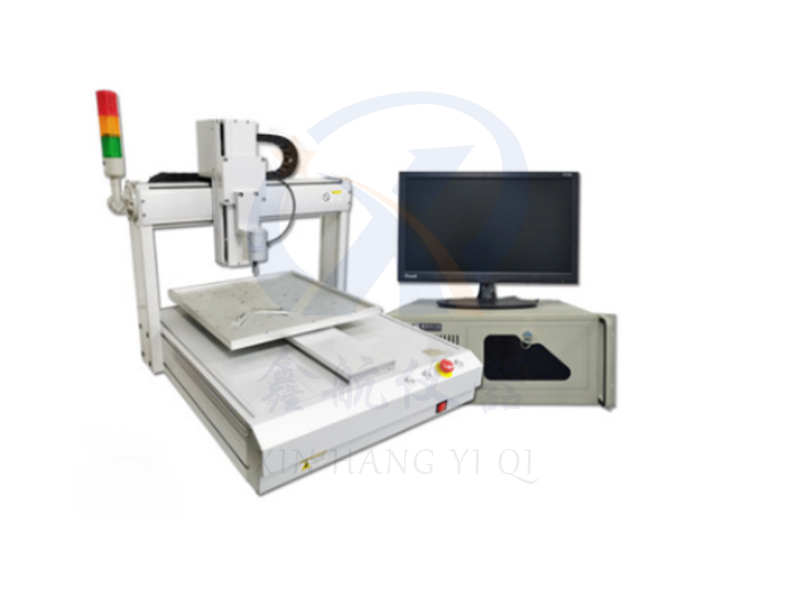

Introduction to product information of three-axis button life testing machine:

The three-axis key lifespan testing machine is suitable for the impact lifespan aging test of key switches, computer keyboards, conductive rubber keys, metal spring keys (commonly known as pot keys) or similar keys. It uses advanced programmers to control the entire process of key lifespan testing, and can perform both lifespan testing and conductivity testing simultaneously. If the key is damaged, it will automatically shut down, and the tested object will always be "conductive" or "not conductive", The machine will stop running within 8 seconds

Technical specifications:

1. Number of tested products: 3PCS

2. Counting device: 8-bit, power-off memory

3. Conduction testing device: 8 second response time

4. Test speed: 0-300 times/minute (0-120 optional)

5. Strike switch contact force: 0-500gf adjustable

6. Test head extension stroke: 20mm

7. Lift platform travel: 60mm

8. Machine size: approximately W500 x D420 x H480mm

9. Machine weight: approximately 60Kg

10. Power supply: AC220V 5A

11. Fixture activity range: 50X50 adjustable
