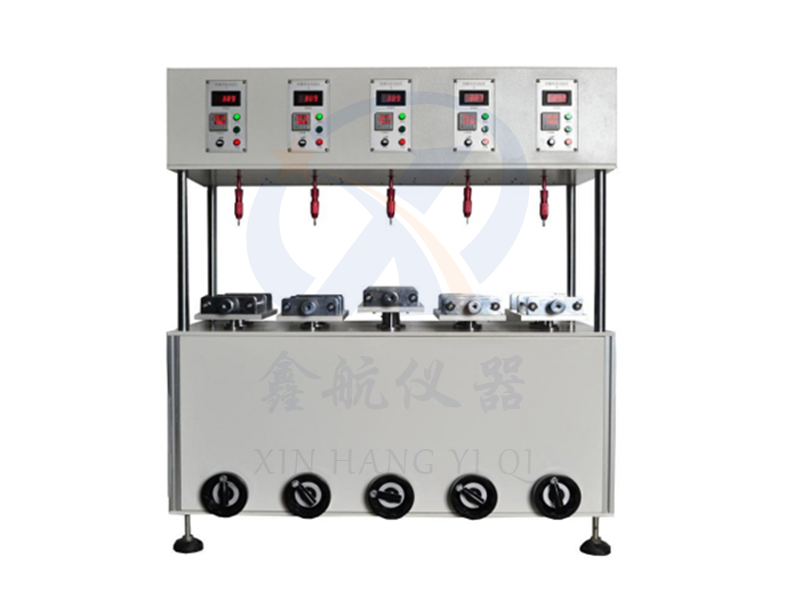

Introduction to Tablet Key Lifetime Testing Machine:

This machine is suitable for the impact life aging test of tablet computer key switches, various computer keyboards, conductive rubber keys, metal bullet keys (commonly known as pot keys) or similar keys. It uses advanced programmers to control the entire process of key life test, and can conduct both life and conductivity tests simultaneously. When the key is damaged, it automatically stops, and the tested object always "conducts" or always "does not conduct", The machine will stop running within 8 seconds.

Technical parameters of tablet button lifespan testing machine:

1. Number of tested products: 5PCS

2. Counting device: 8-bit, power-off memory

3. Test head extension stroke: 0-20mm

4. Test speed: 0-300 times/minute (0-120 optional)

5. Strike switch contact force: 0-500gf adjustable

6. Lift platform travel: 250mm

7. Machine size: approximately W1000 x D600 x H1180mm

8. Machine weight: approximately 160Kg

9. Power supply: AC220V 5A
