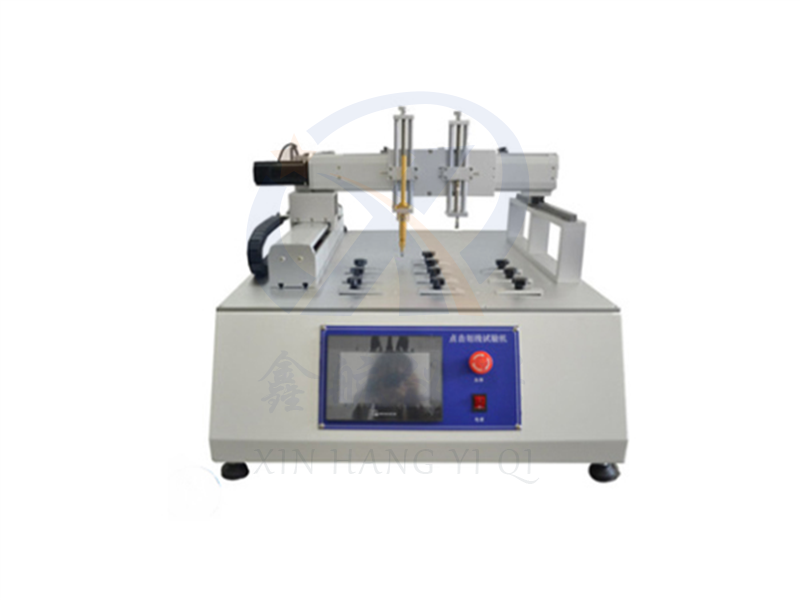

Equipment features:

1. Motion trajectory and testing: Convenient coordinate point finding function, just take three points on the program to generate circles, triangles, and other motion trajectories, take two points to draw lines, take four points to draw rectangles, and store the motion trajectory according to the specifications of the testing phone for easy next call;

2. Adopting a stepper motor with linear guide rails and ball screw as the motion mechanism, accurate positioning, high accuracy, and low noise; Features such as precision, durability, etc

3. Real time display of current X and Y coordinate values, motor drive speed, real-time position changes, etc;

4. The machine is made of high rigidity aluminum and has undergone anodizing treatment on its surface, giving it a rich texture.

5. The XY axis is driven by a stepper motor and a ball screw drive, with high speed, low noise, and durable use;

Equipment parameters:

X-axis movement range: 0-300mm

Y-axis movement range: 0-300mm

Click on cylinder stroke: 0-15mm

Positioning accuracy: 0.05mm

Movement speed: 30-3000mm/min

Pressure range: 0-800gf

Volume: 750 x 600 x 450mm

Weight: 80kg
Power supply: AC220V
