Functional use:

Solve various fixture issues for connector testing, and ensure that the male and female connectors can be automatically aligned during testing without the problem of eating one side.

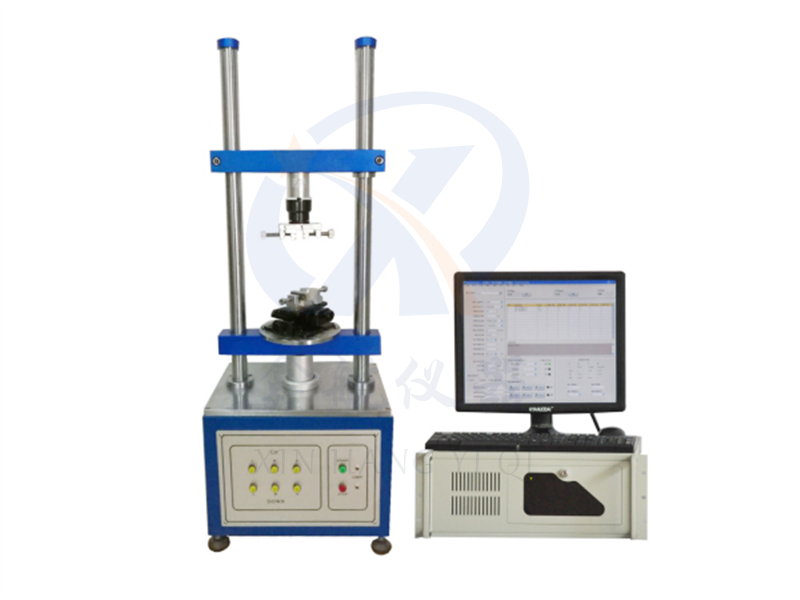

This machine is suitable for testing the insertion and extraction forces of various connectors. With the patented automatic centering device, it can obtain completely accurate insertion and extraction force testsWINDOWSWindow Chinese screen setting, simple and convenient operation, and all data can be stored (test conditions, displacement curve graph, life curve graph, inspection report)----Etc.)

Test items:

★Testing of connector insertion and removal life decay curve analysis;

★Connector row insertion and removal test, singlePIN retention test;

★Testing of insertion force and displacement, as well as extraction force and displacement of connector products;

★ Connector single hole insertion and extraction test
★ ConnectorNORMAL FORM（Positive force）test

★ General compression and tensile failure tests

Machine features:

  ※ Printable storage graphics (displacement curve diagram, lifespan curve diagram, inspection report)

※ Test data is stored on the hard drive (each data can be stored for an unlimited number of times)

※ The testing conditions are all set by the computer screen, which is convenient and fast (including insertion and removal travel, speed, pause time, etc.)

※ The header content of the inspection report can be modified at any time (both in Chinese and English)

※ Inspection reports can be converted toWord ExcelWaiting for document report format.

The software version can freely convert Chinese, English, traditional Chinese, and three different text versions.
  ※ Paired with a dynamic impedance testing system, it can test the insertion and extraction force while also testing the dynamic impedance and drawing the "load"-stroke-Impedance curve chart"

Instrument protection device:

a. Instrument and equipment three-layer automatic overload protection

b. Emergency stop device, mechanical up and down travel limit device.

c. Software setting parameter maximum limit upper limit protection.

d. Sensor set force value upper limit protection.

The main configurations of the instruments and equipment are as follows:

1. Device host

2. Computer

3.17-inch display

4. Professional software

Instrument software operation interface:

 7.1After entering the software, the parameter setting interface is shown as follows:

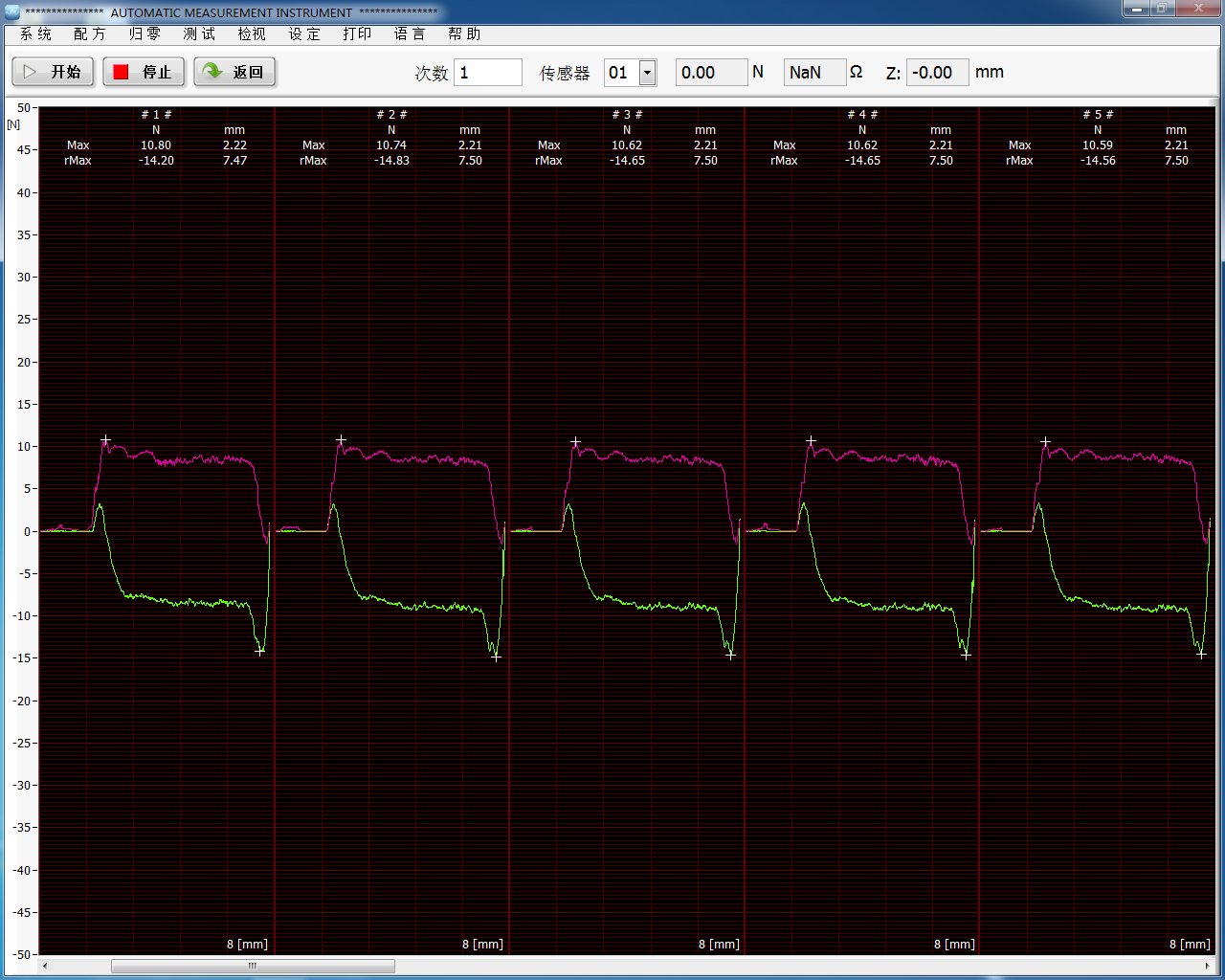

7.2Enter the curve graph and data display interface of the test execution screen as follows:

7.2Enter the curve graph and data display interface of the test execution screen as follows:

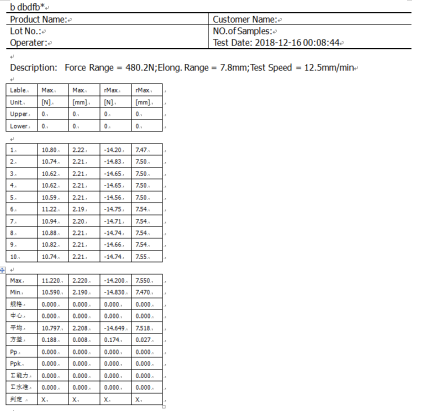

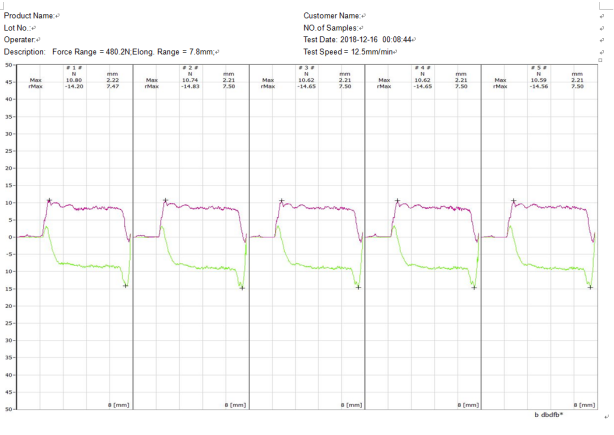

7.4Print the text report as follows:
