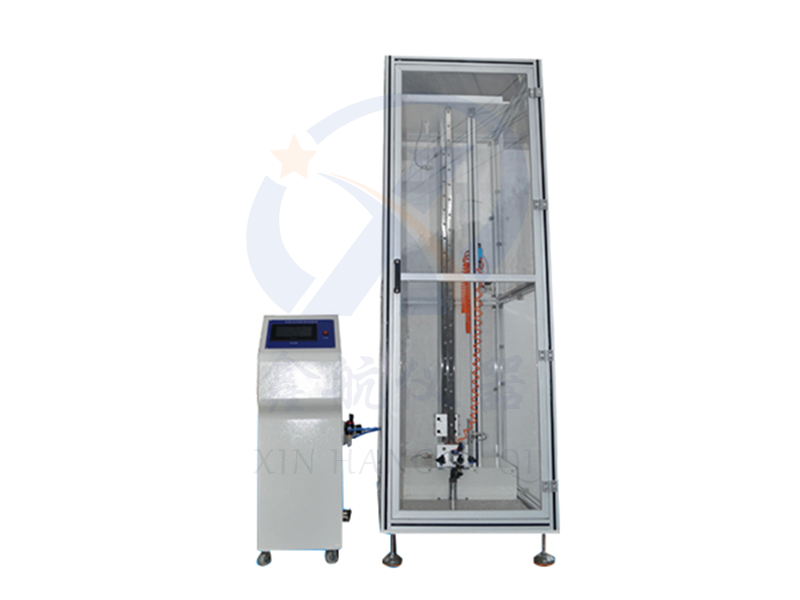

Features of mobile directional drop testing machine:

1. This machine adopts electric components for height adjustment, with fast positioning and durable use;

2. This machine adopts Japanese SMC vacuum suction cups to achieve multi angle drop, suitable for testing diamond, angle, and surface products;

3. The product's drop angle is close to the test set angle;

4. The drop test can automatically rise to the set height, making it convenient to operate and improving testing efficiency;

5. All pneumatic components are made of high-quality Japanese SMC components, which are durable to use;

6. Multiple drop plates available: steel plate, transparent acrylic board, wooden board), cement board, marble board, suitable for testing requirements in multiple countries (standard product marble drop medium)

7. Automatic counting (number of drops) function;

8. Touch screen control, simple and convenient parameter settings

Technical specifications of mobile directional drop testing machine:

1. * Test height: 300-1800mm (adjustable)

2. Large drop weight: 1kg

3. * Small detachment height: 300mm

4. Counter: 0~999999

5. Gas source used: ≥ 0.5MPa

6. Machine size: W700xD1000xH2400mm

7. Machine weight: 150kg

8. Machine power supply: AC220V 50Hz 3A
