1、 Overview of this device:

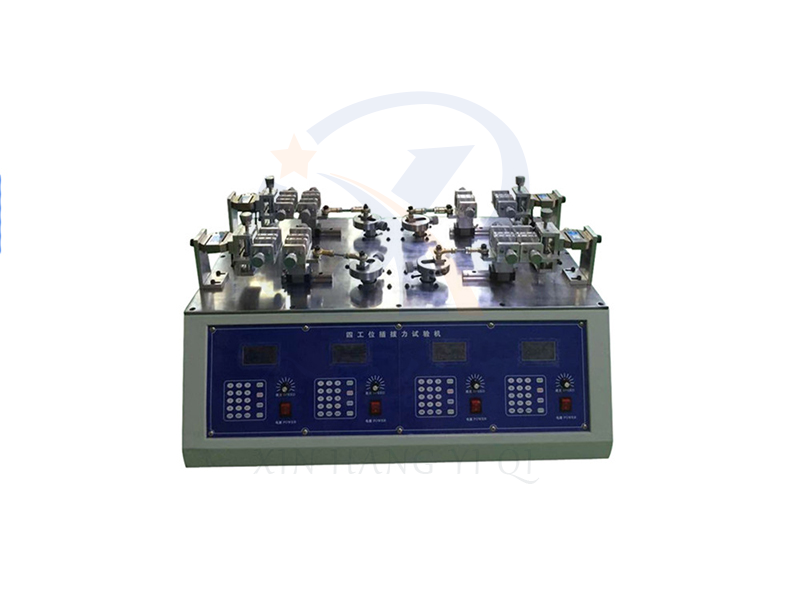

The microcomputer insertion and extraction force testing machine is a newly developed testing equipment. This machine is an advanced testing equipment suitable for testing the insertion and removal life of various connectors. It is used to simulate manual testing of the insertion and removal life of male and female sub connectors, accurately and effectively testing the insertion and removal force. It adopts embedded microcomputer control technology and high brightness LED LCD display technology. It can simultaneously display insertion force, extraction force, and real-time force values, with frequency settings, adjustable speed stroke, and display speed values, automatic zeroing, unit conversion, etc. The power design of the rotating eccentric wheel eliminates the correlation between testing speed and testing stroke. Products with long and short strokes can also be tested quickly to improve testing efficiency. And it has overload protection function and high reliability. As a result, it reduces customer human resources and improves product quality, making it the most cost-effective machine in the current market. This device has received high praise from customers.

2、 Main technical parameters:

1. Equipped with automatic stop alarm function for overload load setting

2. It has an automatic saving function, which can automatically save up to ten points and calculate the average value

3. Use a list format to test the saved test data

4. Users with an administrator password can change their startup password.

5. Use software to calibrate the load value.

6. The internal functions are set with full Chinese prompts, making the operation convenient and simple.

7. Frequency range: 0~999999 (customizable)

8. Transmission method: Rotating eccentric wheel

9. Display method: Small screen LCD display

10. Insertion and extraction force range: 0-50kg (optional)

11. Minimum insertion and extraction force resolution: 0.01kg

12. Example of stroke adjustment: 0-60mm

13. Test speed: 10-60 (digital display)

14. Conversion of two units: N, KG, IB

15. Machine size: 900 * 600 * 530

16. Working voltage: single-phase 220V, 2A

17. Motor power: 1KW

18. Weight: 80kg

19. Main circuit fuse: 2A

20. Fixture dimensions; 120 * 40 * 40mm
