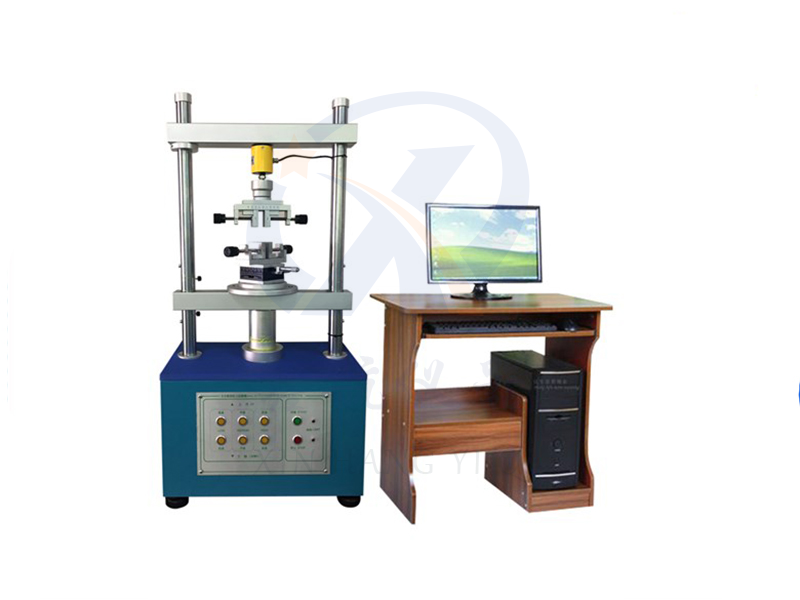

1、 Overview of this device:

Suitable for testing the insertion and extraction forces of various connectors, combined with a patented automatic centering device, it can obtain completely accurate insertion and extraction force tests. It uses WINDOWS and written settings in Chinese, with simple and convenient operation. All data can be stored (test conditions, displacement curve graphs, life curve graphs, inspection reports, etc.). In addition, special fixtures are used to solve various connector testing fixture problems, and the male and female connectors can be automatically aligned during testing without the problem of eating one side.

2、 Technical parameters:

1. Determine maximum load: 50, 20, 5, 2kg

2. Load element accuracy: 0.2%

3. Minimum decomposition energy: 0.01 or 0.001

4. Maximum measurement height: 150mm

5. Measurement of fine adjustment distance: 0.01mm

6. Measurement speed range: 1-150mm/min

7. X-Y axis movement range: 0-50mm

8. Transmission mechanism: Ball screw

9. Drive motor: Servo motor

10. Appearance dimensions: 400x300x950mm

11. Weight: 75kg (machine)

12. Power supply: 220V

13. Can perform connector single hole insertion and extraction test

14. Can be used for connecting the entire row of plug and unplug tests, and for testing the lifespan of connectors

15. Can perform connector single pin on plastic retention test

16. Can perform NORMAL FORCE test on connectors

17. Can perform general compression and tensile failure tests

18. Can simultaneously contact the impedance machine side line (optional)

19. Can print and store graphics (displacement curve diagram, life curve diagram, inspection report)

20. Test data is stored on the hard drive (each data can be stored for an unlimited number of times)

21. The testing conditions are all set in writing by the computer, which is convenient and fast (including insertion and removal itinerary, speed, pause time, etc.)

22. The header content of the inspection report can be modified at any time (both in Chinese and English)

23. Inspection reports can be transferred to Excel for editing

3、 Product features:

1. The local testing conditions can be set by the computer and can be stored. Select settings from the dropdown menu or enter data directly. (including test category, determination of movement direction, range of load measurement, range of travel measurement, position of travel origin, detection of travel origin, measurement speed, total number of measurements, pause time, waiting position each time, number of air compressions);

2. Can store and print graphics (load stroke curve, load attenuation life curve, waveform overlap, inspection reports);

3. The overload protection function of the load element ensures that the load element is not damaged;

4. Simultaneously display the load stroke curve and life curve;

5. Automatic load zero point detection and the ability to set the load value for zero point detection;

6. Curve chart sample selection and comparison function;

7. The load unit displays N, lb, GF, and kgf, which can be freely switched;

8. Can be paired with multiple load elements simultaneously;

9. The machine adopts a high steel structure design combined with servo motors, which can ensure accuracy under long-term use. It is suitable for general tension, compression testing, and insertion and extraction force life testing;

10. Stop exceeding the specified value. (During lifespan testing, if the test data exceeds the set upper and lower specification values, the machine will automatically stop);

11. Measurement items: maximum load value, peak value, valley value, load value of stroke, load stroke value, insertion point resistance value, load or stroke resistance value;

12. Self integrated micro ohm testing module, no need to purchase a micro ohm tester to measure milliohm level resistance values;

13. The header content of the inspection report can be modified at any time (both in Chinese and English);

14. The inspection report can be transferred to Excel for editing;

15. Curve chart report, text report can be specified by the customer with a header and logo;

16. The software is independently developed and can be modified according to customer requirements.
