1、 Overview of this device:

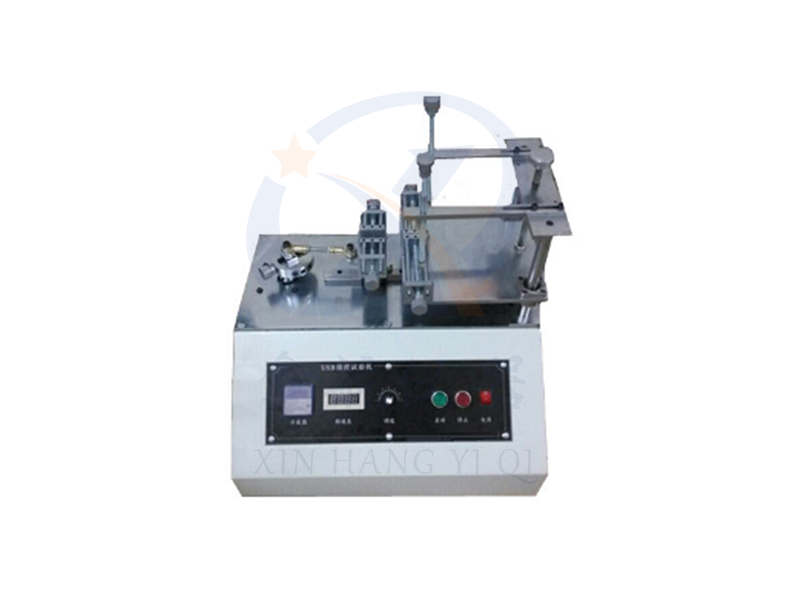

The plug and unplug life testing machine is suitable for various connector plug and unplug tests, with adjustable speed and stroke, and displaying speed values. It can be said to be the most cost-effective plug and unplug life testing machine on the market at present. It has a digital display and a set counting function, achieving multiple shutdowns and a beautiful and elegant structure.

2、 Product parameters:

1. Frequency range: 0-999999 (customizable)

2. Speed regulation range: 10-60 times/minute (digital display)

3. Travel adjustment range: 0-6cm

4. Transmission method: Rotating eccentric wheel

5. Fixture: Adopting anodic electroplating treatment

6. Chassis: Using electrostatic powder spraying and baking paint

7. Machine weight (approximately): 45kg

8. Machine size: 600 x 450 x 550

9. Motor: 90W

10. Power supply voltage: 220V ± 10%

11. Working voltage: single-phase 220V, 2A

3、 Product features:

1. Eccentric wheel design ensures that the testing speed is not related to the testing stroke. Products with long and short strokes can also be tested quickly, improving testing efficiency;

2. Adjustable speed, stroke, and number of tests, user-friendly design, convenient and fast test operation
