major function
Detection range: Zero interface incidence 0-1000;
Instrument calibration automation, capable of measuring material thickness and material sound velocity;
Menu style operation mode, direct display operation prompt, concise and clear, allowing operators to quickly master instrument operation;
Gate alarm: The gate position, width, and height can be adjusted at will. The gate can choose to set an incoming or lost wave alarm, and there is a buzzing sound inside the gate;
Defect localization: Real time display of defect level, depth (vertical), and sound path position, facilitating direct localization of defects;
Qualitative analysis of defects: Through the waveform of the echo envelope, it is convenient for manual judgment;
DAC/AVG: Automatic curve generation, unrestricted sampling points, and can be compensated and corrected. The curve automatically fluctuates with gain. Can display AVG curves of any aperture;
Waveform freezing: Freeze the waveform displayed on the screen for easy defect analysis;
Plate thickness input: Input the thickness of the workpiece. The instrument displays the actual depth of the defect for the second and third waves, and provides real-time prompts for the number of waves in the waveform;
Weld seam diagram: display the groove form and sound velocity direction of the weld seam, visually display the location of defects;
Built in standards: can freely set various industry testing process standards to meet the testing needs of various industries;
Probe working mode: straight probe, oblique probe, twin crystal probe, penetration testing;
Data storage: 16 sets of flaw detection parameter channels (can be expanded to 300 channels by replaying and copying storage files), with the ability to pre adjust the combination parameters of various probes and instruments, and freely set various industry flaw detection standards; It can store 300 ultrasonic echo signals and parameters, achieve storage, reading, and transmission through USB interface. By using computer client software, it is possible to quickly and automatically generate inspection reports;
Communication interface: USB2.0 high-speed communication transmission interface, safe, stable, reliable, and fast.
characteristic
Compact, lightweight, portable, suitable for outdoor and high-altitude operations.
technical parameter
|
name
|
technical data
|
|
Scanning range（Mm）
|
0~1000
|
|
Vertical linear error
|
＜3%
|
|
Horizontal linear error
|
＜0.1%
|
|
Sensitivity margin for flaw detection
|
≥50dB
|
|
dynamic range
|
>36dB
|
|
resolving power
|
>36dB
|
|
Frequency range（MHz）
|
0.5 ~10MHz
|
|
Gain adjustment（DB）
|
0 ~110dB
|
|
Material sound velocity（M/s）
|
1000~9999
|
|
Pulse shift
|
0 ~5000mm
|
|
Echo suppression
|
0 ~90%
|
|
Applicable probe
|
Straight probe, oblique probe, twin crystal probe, penetrating probe
|
|
Display method
|
5.0True color display
|
|
Working temperature (℃)
|
-25℃~ 50℃
|
|
working voltage
|
4.2V DC~220 ACac adapter
|
|
Continuous working hours
|
>12hour
|
|
External dimensions（Mm）
|
162mm（long）Χ105mm（wide）Χ40mm（high）
|
|
Weight（Kg）
|
0.68Kg（Including batteries）
|
Standard configuration
|
name
|
quantity
|
|

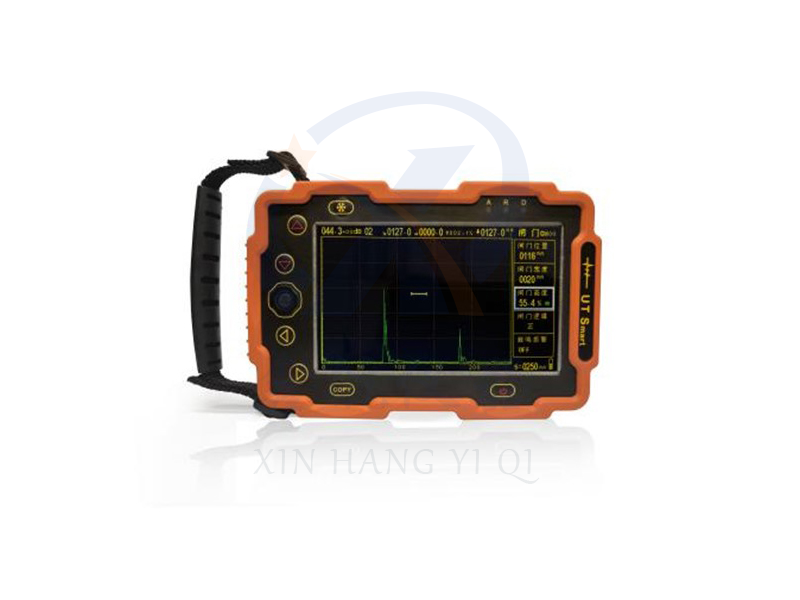

Ultrasonic flaw detector host
|
1
|
|
ac adapter
|
1
|
|
BNCcable
|
1
|
|
Straight probe
|
1
|
|
Oblique probe
|
1
|
|
User manual
|
1
|
|
Warranty Registration Card
|
1
|
|
Packing list
|
1
|
|
Product Qualification Certificate
|
1
|
|
Feedback Letter
|
1
|
|
Instrument box
|
1
|
|
software
|
1
|
Optional: Standard test blocks, probes, and computers from various industries
