What did you choose DBC-432C Length unit:Mm
|
model
|
DBC-432C
|
DBC-542C
|
DBC-652C
|
|
X \ Y \ ZMeasuring stroke
|
400 * 300 * 200
|
500 * 400 * 200
|
600 * 500 * 400
|
|
Working distance
|
90mm
|
|

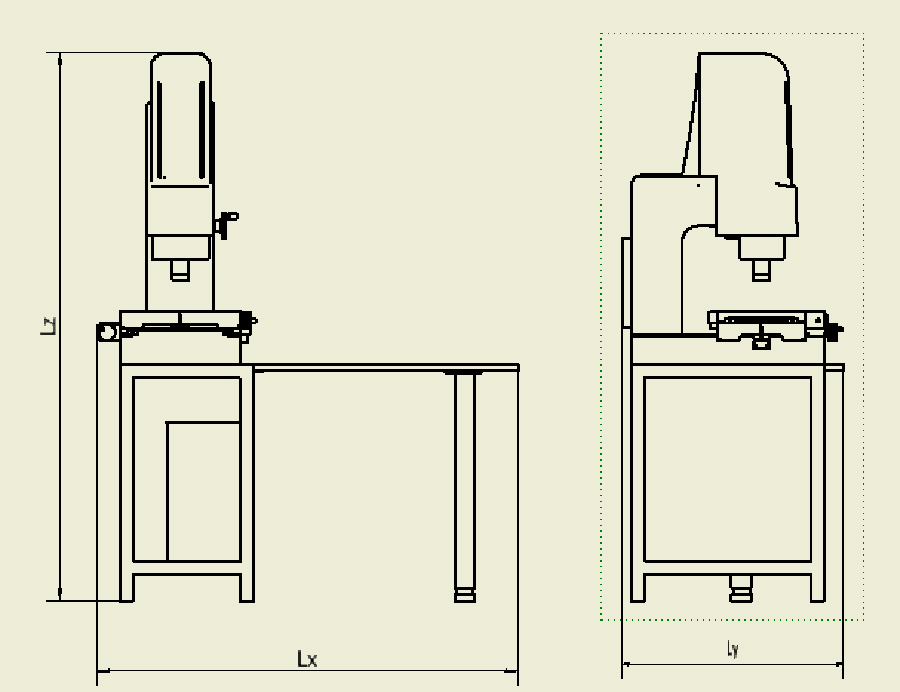

External dimensions
Lx * Ly * Lz
|
820 * 1050 * 1000
|
970 * 1350 * 1100
|
1050 * 1300 * 1700
|
|
Maximum load
|
30Kg
|
30Kg
|
30Kg
|
|
Instrument weight
|
350Kg
|
450Kg
|
550Kg
|
|
source
|
220V 10%, 50HZ-60HZ
|
|
measurement accuracy
|
X/YAxis:（3+L/200）μM
|
|
Repetitive accuracy
|
≤3μM
|
|
computer
|
Core Dual Core2.8/Memory4G/Solid State Drive120G/19.5LCD color display
|
|
Control transmission counting system
|
West German high-precision toothless screw
|
|
Taiwan Lepin high-precision linear guide rail
|
|
BritainKMN-600Multifunctional control box
|
|
Yihao0.5μMClosed glass grating ruler
|
|
Imaging system
|
JapanSONY-CCDhigh definitioncolour1/3"camera Image card Image magnification30 X -230 X
|
|
SANWENHigh definition continuous zoom lens/Magnification rate0.7-4.5X
Optional:0.5XObjective lens, magnification15-115X
Optional:2XObjective lens, magnification60-460X
|
|
Light source system
|
256levelLEDCircular surface light source Parallel contourLEDCold light source
|

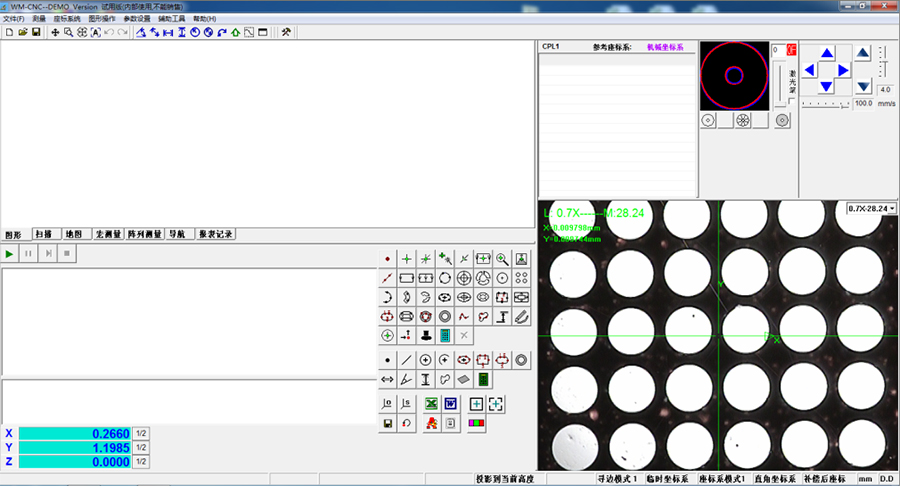

Measurement software:
Shi Di/2D measurement software is a simple to operate and powerful image measurement software, which integrates complete geometric dimensions (points, lines, circles, arcs, distances, angles) and positional tolerances (straightness, true roundness, positional tolerance, parallelism, verticality) measurement functions.
Widely used in industries such as mechanical processing, electronics, automobiles, hardware, molds, precision manufacturing, plastic and rubber products, optoelectronics, mobile phones, PCB boards, electronic components, semiconductors, touch screens, LCD panels, medical equipment, cutting tools, bearings, terminals, etc.
software function
1. Coordinate translation and alignment make measurement more convenient and efficient, improving measurement efficiency
2. Convenient and fast element combination function, users only need to simply select graphics to combine points, lines, circles, distances, and angles
3. The measurement data is directly sent to AutoCAD, and the measured graphics can be saved in a dxf document
4. Measurement data can be sent to Excel for statistical analysis. ☆ Switching between Chinese, English, and traditional Chinese language interfaces
5. Cross line edge detection, edge color change, manual sampling
6. Multiple edge finding modes, computer automatic point picking, automatic recognition of circles and arcs, greatly improving point picking speed
7. Graphic enlargement, graphic reduction, graphic translation, graphic printing, graphic selection, deselection, graphic deletion
8. Set the grayscale, saturation, contrast of the image, and save the image in BMP format
9. 2D image calibration to achieve precise measurement of dimensions; Multiple measurement tools including lines, circles, angles, rectangles, polygons, etc. are used to measure parameters such as distance, diameter, angle, area, perimeter in real-time;
10. Element measurement: multi-point measurement of points, lines, circles, arcs, ellipses, specified number of points to measure rectangles, automatic identification of points, lines, circles, and arcs
11. Element construction: center point construction, intersection construction, midpoint construction, line construction, circle construction, angle construction.
12. Element presets: points, lines, circles, arcs
13. Automatic edge finding function, image sharpening, eliminating the influence of object edge burrs, improving detection accuracy and repeatability. Ring measurement, angle measurement, line width, line spacing measurement, etc.
