technical parameter
1. Maximum test force; 0-100kg, 0-200kg, 0-500kg
2. Range: 100%;
3. Test force accuracy; Soil 0.01% 4, displacement resolution: 0.01m m; 5. Displacement measurement accuracy: ± 1%;
6. Test space: stroke of approximately 1000mm, including fixtures
7. Displacement speed control range: 0.001mm/mir500mn/min8, displacement speed control accuracy: ± 1%;
9. Testing machine accuracy level: Level 1 10. Deformation indication error: Chengshi 1% 11. Power system: stepper motor
12. Control system: PLC touch screen control 13, mechanical system. High precision ball screw 14, unit selection: g/kg/n/kn/1b/t
15. Fixture configuration: configure one set of fixtures according to customer product requirements. 16. Dual display mode: electronic touch screen display
17. Software function: Interchange of Chinese and English interfaces
18. Test machine size: approximately 450 450 1250 mm19, appearance: should comply with GB/T2611 requirements
20. Protection function: The testing machine has overload protection function. 21. Power supply: 220V, 50Hz
22. Weight (approximately): roKG

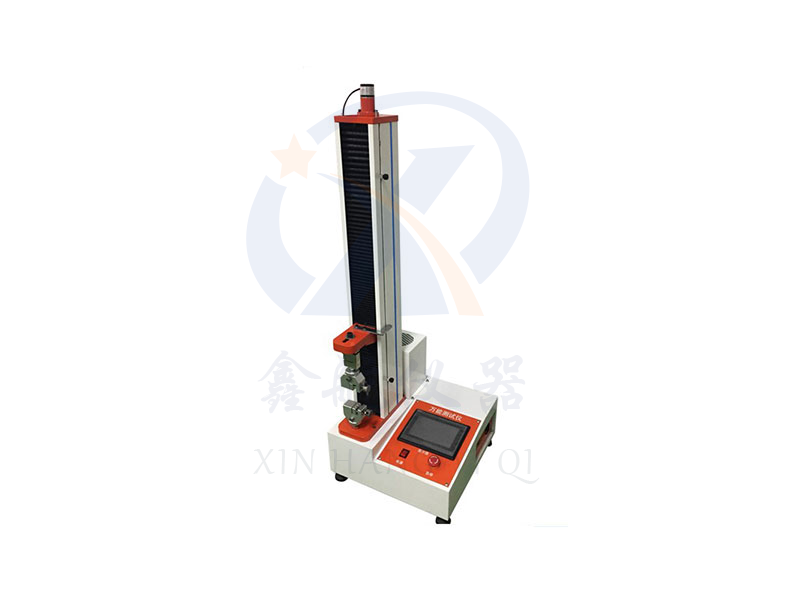

Product Introduction
This series of universal testing machines is suitable for tensile, bending, pressure, and 180 peel tests of materials such as rubber, plastic, textiles, waterproof materials, wires and cables, mesh ropes, metal wires, springs, metal rods, metal plates, etc. It has functions such as digital display of test force, continuously adjustable test speed, automatic stop of sample fracture, and peak holding.
Function and features:
1. Using a high-precision, fully digital speed control system and precision reducer, the precision screw pair is driven for testing, achieving a wide range of speed adjustment during the testing process with low noise and smooth operation.
2. The universal joint adopts a cross pin structure and has a swing angle limiting function. On the one hand, it is convenient for the sample to be clamped, ensuring the concentricity of the test, and on the other hand, it effectively eliminates the influence of irregular samples on the sensor.
3. Touch key operation mode, real-time display on LCD display. The display interface can display the experimental method selection interface, experimental parameter selection interface, experimental operation and result display interface, and curve display interface, making it convenient and fast.
4. It can adjust the speed of the crossbeam during sample clamping, and has protective devices such as overcurrent, overvoltage, and overload.. 5. Equipped with a microcomputer interface, it can be connected to an external microcomputer to control the testing process and store and print data.
Product Introduction and Functional Features
1. Automatic calibration: The system can automatically calibrate the accuracy of the displayed values; 2. It can automatically calculate the force value corresponding to displacement;
3. Switch to the appropriate range according to the magnitude of the experimental force to ensure the accuracy of the measurement data; 4. Automatic display: Real time display of test force, peak value, and test status throughout the entire test process; 5. Automatic control: After inputting the test parameters, the test process can be automatically completed;
6. Breaking judgment: After the sample fractures, the moving crossbeam automatically stops moving;
7. Limit protection: It has two levels of limit protection functions, mechanical and programmable.
8. Test items; Tests on bending modulus, bending strength, elongation at break, tensile strength, and breaking force.
