technical parameter

1. Maximum test force; 0-100kg, 0-200kg, 0-300kg, 0-500kg, 0-1000kg (any choice)
2. Range: 100%;

3. Test force accuracy; ± 0.014%, displacement resolution: 0.01m; 5. Displacement measurement accuracy: ± 1%;

6. Test space: stroke of approximately 900mm, including fixtures

7. Displacement speed control range: 0.001mam/min -~500am/min8, displacement speed control accuracy: ± 1%;

9. Testing machine accuracy level: Level 1 10. Deformation indication error: ≤ ± 1%

10. Power system: stepper motor (optional Panasonic servo) 12. Control system: computer control buttons

11. Mechanical system: high-precision precision ball screw 14, unit selection: g/kg/n/kn/lb/t

12. Fixture configuration: standard fixture (additional customized fixture, cost calculated separately) 16. Display method: computer screen display

13. Software functions; Interchange of Chinese and English interfaces

14. Test machine size: approximately 450 * 450 * 1240 m19, appearance: should comply with GB/T2611 requirements

15. Protection function: The testing machine has overload protection function. 21. Power supply: 220V, 50Hz

16. Weight (approximately): 7OKG

17. Automatic shutdown device: 1. Upper and lower limit travel protection device, 2. Maximum capacity overload protection -3. Leakage protection

Product Introduction and Functional Features

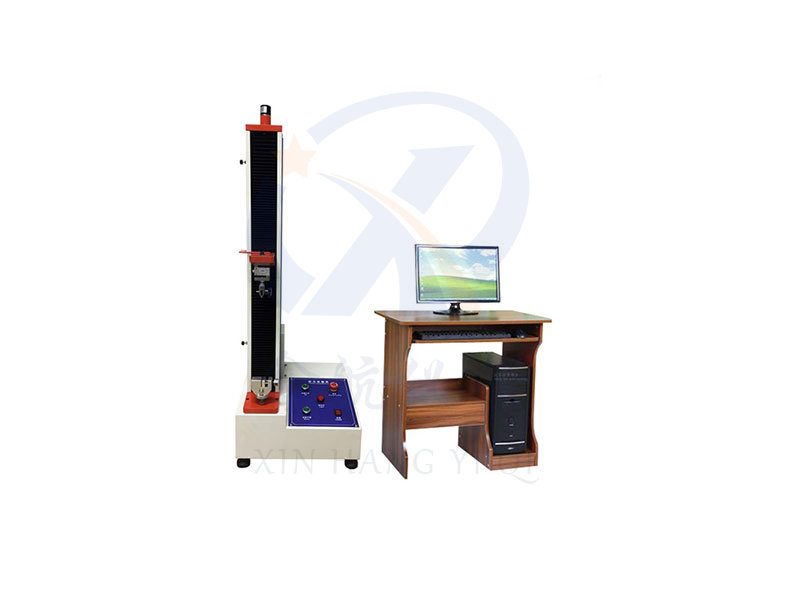

This series of universal testing machines is suitable for tensile, bending, and 180 peel tests of materials such as rubber, plastic, textiles, waterproof materials, wires and cables, mesh ropes, metal wires, metal rods, metal plates, etc. It has functions such as digital display of test force, continuously adjustable test speed, automatic stop of sample fracture, and peak holding.

Function and features:

1. Using a high-precision, fully digital speed control system and precision reducer, the precision screw pair is driven for testing, achieving a wide range of speed adjustment during the testing process with low noise and smooth operation.

2. The universal joint adopts a cross pin structure and has a swing angle limiting function. On the one hand, it is convenient for the sample to be clamped, ensuring the concentricity of the test, and on the other hand, it effectively eliminates the influence of irregular samples on the sensor.

3. Touch key operation mode, real-time display on LCD display. The display interface can display the experimental method selection interface, experimental parameter selection interface, experimental operation and result display interface, and curve display interface, making it convenient and fast.

4. It can adjust the speed of the crossbeam during sample clamping, and has protective devices such as overcurrent, overvoltage, and overload.. 5. Optional microcomputer interface, which can be connected to an external microcomputer to control the testing process and store and print data.
