1、 Product Usage:

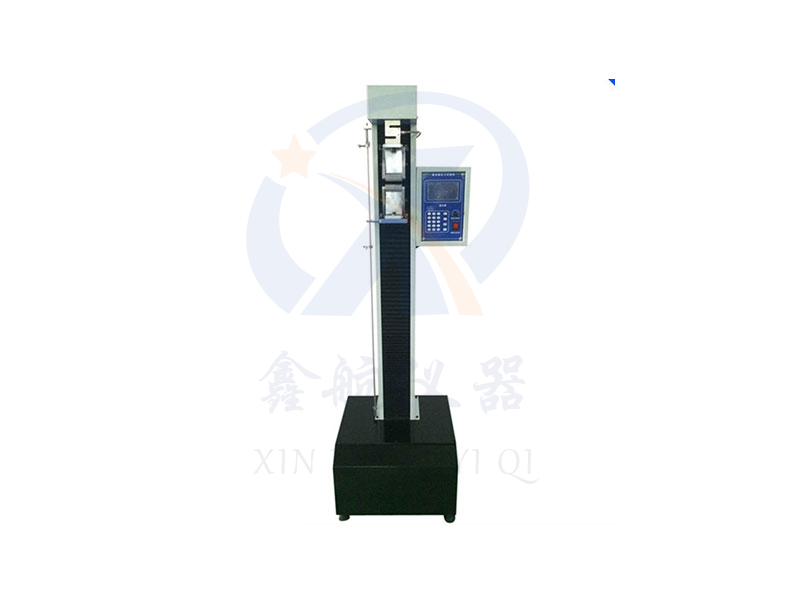

This tensile testing machine is designed with a high-quality DC debugging motor, bearings, and screw as the transmission mechanism. It is a high-end large screen LCD digital display, microcomputer system control, and high-performance mechanical structure designed according to market demand. The whole machine is centered around low noise, multifunctionality, high power, simple operation, compact structure with high accuracy, and complete functions. Mainly used for testing various tests such as tension, elongation, peeling, displacement, tearing of wires, metals, non-metals, rubber, building materials, etc

2、 Main technical parameters:

1. It has functions such as breaking stop, elongation, and unit conversion.

2. Meet various national standards for testing.

3. Maximum stretching force: 100kg.

4. Travel: 100cm (excluding fixtures).

5. Load decomposition degree: 1/10000

6. Load accuracy: ± 0.5%

7. Testing speed: 1-300mm/min adjustable.

8. Unit switching: Real time display of kg, N, IB

9. Stretching method: Continuous values and peak values are exchanged in real-time, with a break stop function and upper and lower limit setting functions.

10. It has a break stop function and sets the corresponding break stop value as needed.

11. With displacement display, displacement accuracy of 0.001mm, and automatic testing function for 25cm elongation rate

12. Display method: Large screen LCD, full Chinese multi view window display, capable of displaying edge pulling strength, maximum value, peak value, displacement, and elongation on a large LCD screen

13. Quickly press the "2open" button to turn off the pull stop function.

14. Volume approximately: 500 (L) × 450 (D) × 1600 (H) mm

15. Weight (approximately): 150kg

16. Power: 750W.

17. Working power supply: AC220V/50Hz.
