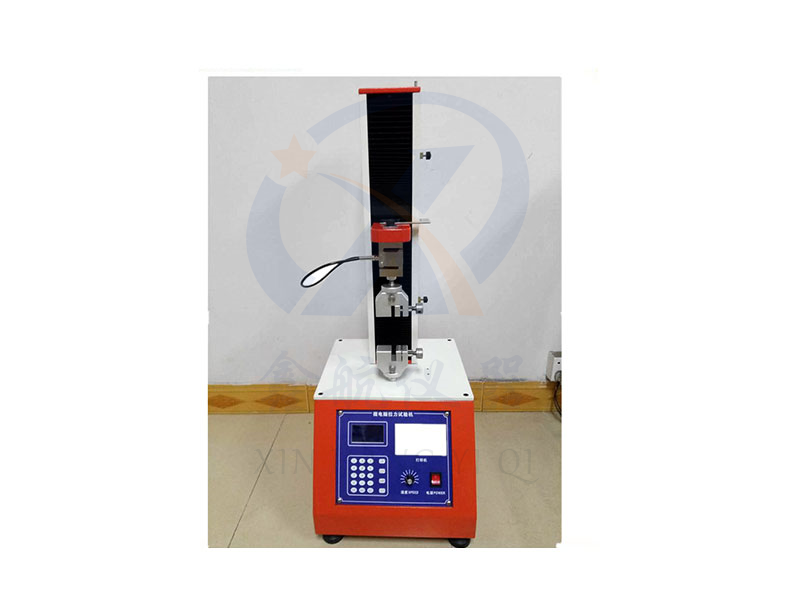

1、 Overview of this device:

This testing machine is widely used in various materials such as hardware, metal, rubber and plastic, shoes, leather, clothing, textiles, insulators, wires, cables, terminals, etc., to test their tensile, tear, peeling, compressive, bending, shear resistance, one point bending resistance, and other physical properties

2、 Main technical parameters:

1. Capacity selection: 0-100kg, 0-200kg, 0-300kg, 0-500kg

2. Load accuracy: 1/200000 ± 0.1%

3. Force units: Kgf, ibf, N;

4. Test stroke: 300mm including fixture

5. Test speed: 10-300mm/min, infinitely adjustable

6. Shutdown method: automatic shutdown due to fracture

7. Control method: LCD interface microcomputer controller

8. Power source: Variable speed motor

9. Transmission method: screw drive

10. Host size: 350 * 370 * 850mm

11. Display method: Chinese microcomputer display

12. Testing items: real-time value, maximum value, and fracture value.

13. Automatic shutdown device:
1. Upper and lower limit travel protection device,

2. Maximum capacity overload protection

3. Leakage protection
