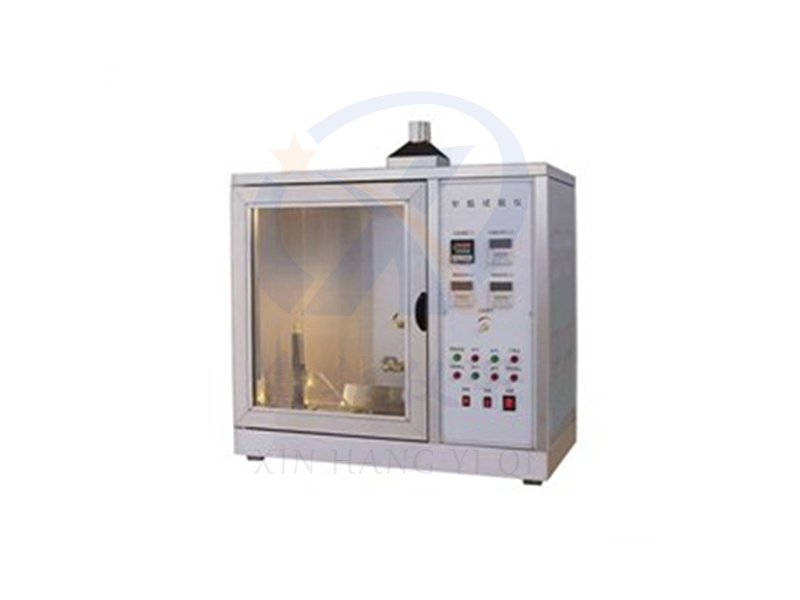

Needle flame test chamber

型号：

Contact Now

Product details
Requesting samples and information

1、 Overview of this device:

Due to fault conditions in the product, such as fault current flowing through the leakage path, overheating of components or parts, poor contact, etc., flames may be caused, which may then shoot onto nearby parts. This test simulates the small flames generated inside the product under fault conditions and evaluates the fire hazard using simulation technology. When the hot wire test or horizontal vertical combustion test method is not suitable for small parts (or components), the needle flame test method can be used. If the sample ignites during the hot wire test, the combustion hazard generated also needs to be tested with a needle flame. Suitable for components and parts of electronic and electrical products, household appliances, such as wiring boards, centrifugal switches, and rice cooker sockets

2、 Compliant with standards:

IEC60695-11-5, IEC60884-1, GB2099.1, VDE, IEC60335-1, GB4706.1, GB5169.5

3、 Main technical parameters:

Volume inside the box	0.5 cubic meters(With glass observation door)
Illumination inside the box	Less than 20LUX
fuel	Butane gas
Flame apparatus specification	Over 35mm in length, with an inner diameter of 0.5mm ± 0.1mm and an outer diameter not exceeding 0.9mm
Flame height	12mm ± 1mm adjustable
flame temperature	100℃ Rising to 700℃ The time is within 23.5 ± 1 S
Temperature display range	0~1000℃, Resolution:1 ℃
timer	Adjustable within the range of 0~99 minutes and 99 seconds, the combustion time can be set, and the combustion duration can be recorded
Driving method	motor drive
Product features	The combustion chamber and main mechanical parts of this tester are made of stainless steel, which has a beautiful appearance and is resistant to smoke and gas corrosion. Time digital display, three-dimensional adjustable fixture, automated control system, independent ventilation, convenient observation and recording, stable and reliable. Equipped with temperature measurement device.
source	AC220V/50Hz
