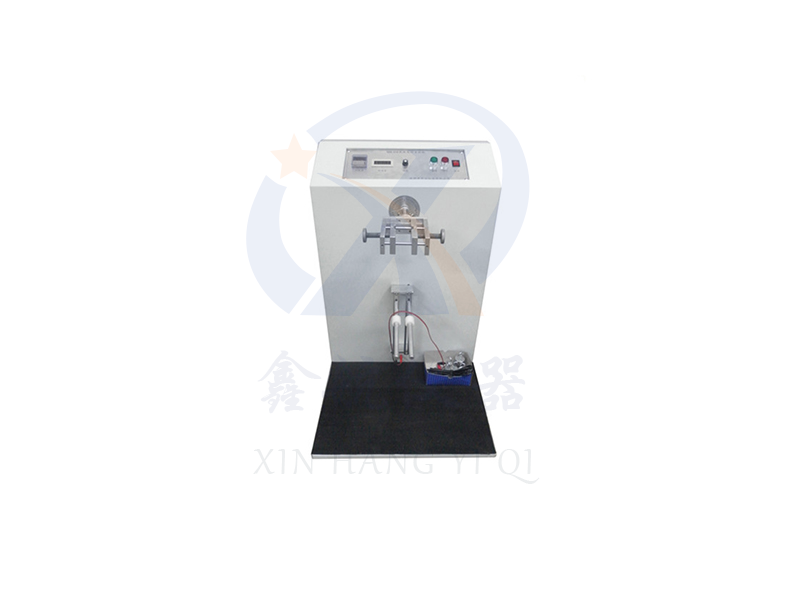

Compliant with standards: GB2099.1-2008, GB2099.3, GB4706.1, IEC884-1, UL817 and other standards require that mobile devices with non removable power cords be assessed for their resistance to bending when the flexible cord enters the device. This machine can test the bending strength of wires by fixing the test object to a fixture and applying weight. After bending it to a predetermined number of times, the wire breakage rate is detected; During the testing process, if there is a circuit break in the tested sample, the machine will automatically stop and have an audible and visual alarm prompt (counter stops counting). When the test reaches the preset counter, the equipment can also automatically stop working.

2、 Main technical parameters:

1. Working power supply: AC220V/50Hz

2. Power: approximately 200W

3. Test rate: 5-60 times/minute adjustable (with digital display)

4. Bending angle: adjustable from 10 ° to 180 °

5. Test station: 1 group

6. Bending times: 0~999999 can be preset

7. Weight of weights: 20kg each

8. Fixture: 1 sample fastening fixture, 1 pair of R-angle contact fixtures (2 R12.7)

9. Volume approximately: length 600X width 400X height 1000mm
