1、 Overview of this device:

Suitable for flame resistance testing of various organic materials such as insulation coatings for wires and cables, printed board materials, IC insulators, etc. During the test, place the specimen at the top of the flame, burn for 15 seconds, extinguish for 15 seconds, repeat 5 times, and then check the burning condition of the specimen. Fully automatic, capable of setting combustion, extinguishing time, and repetition times, and can be operated automatically.

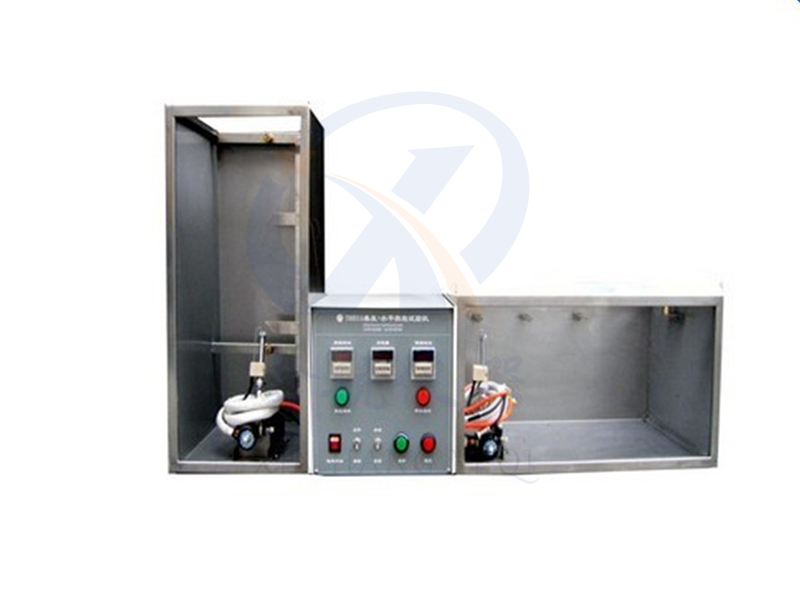

Structure: This equipment consists of a control box, vertical combustion box, horizontal combustion box, combustion lamp, solenoid valve, high-pressure igniter, gas pipe, pressure regulating valve, and signal control line. The control box is composed of: a flame spraying timer, a stop spraying timer, a stop spraying timer, a combustion counter, a manual/automatic operation selection switch, a vertical/horizontal selection switch, and a power switch. Equipped with gas control valve. Shutdown method: When the preset data is reached, the machine will automatically stop testing.

2、 Compliant with standards:

The vertical horizontal combustion testing machine for wires meets the standards: UL-62-3839, UL-1581-1060-1080, UL-94

3、 Main technical parameters:

1. Sample length: 300457mm

2. Fuel: methane, high-purity liquefied gas (self provided)

3. Timer: 0-99 seconds x 2

4. Counter: LED, 0-9999

5. Horizontal vertical combustion nozzle angle 20 degrees (horizontal 90 degrees)

6. Vertical and horizontal combustion chamber dimensions: 305x355x610mm

7. Control box size: 34 x 24 x 33cm

8. Weight: 28kg

9. Power supply: 1 Å, AC220V, 1A
