Weighted Brinell hardness tester

型号：

Contact Now

Product details
Requesting samples and information

Overview:

This hardness tester is used to measure the Brinell hardness values of unhardened steel, cast iron, non-ferrous metals, and softer bearing alloys. Suitable for laboratories in metal metallurgy factories, mechanical manufacturing factories, industrial laboratories, and professional schools.

Main functions:

Capable of testing at level 5;

Using weights for loading

Application scope:

Mainly used for hardness testing of materials such as cast iron, steel, non-ferrous metals, and soft alloys. In addition, it can also be used for hardness testing of certain non-metallic materials such as hard plastics and electric wood. Suitable for factories, workshops, laboratories, colleges and research institutions.

Technical data:

model	HB-3000
Experimental force	187.5kgf (1839N)250kgf750kgf (7355N)1000kgf (8907N)3000kgf (29420N)
Hardness testing scope	8-450HBS,8-650HBW
Test force retention time	123060second
Maximum height of the specimen	230mm
Maximum distance from the center of the pressure head to the body	120mm
External dimensions(mm)	700 x 268 x 842mm
Motor specifications	90W220V

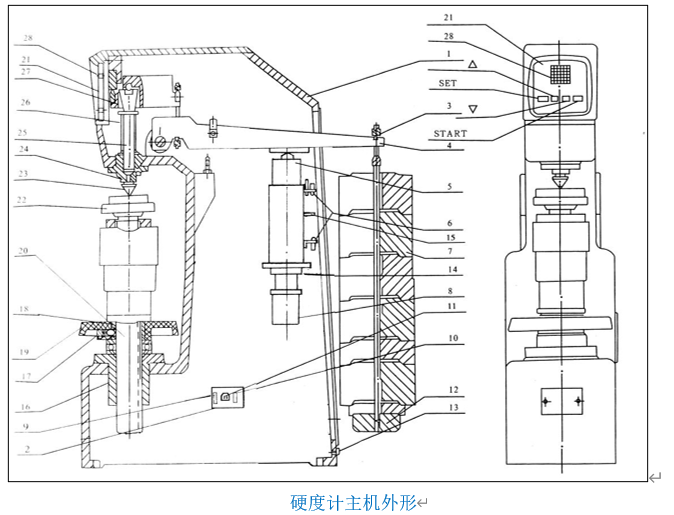

Appearance of hardness tester host:

1.fuselage	2.Power panel	3.Lifting ring	4.Large leverage	5.Lifting rod
6.Travel switch	7.Weights	8.electrical machinery	9.Power switch	10.Fuses
11.Power cord socket	12.Suspension rod	13.Grounding screw	14.Lifting mechanism	15.Travel rod
16.Screw seat	17.Elastic locator	18.Nut	19.handwheel	20screw
21.front panel	22.Test bench	23.Pressure head	24.principal axis	25.present a theatrical performance as the last but one item on a programme
26.spring	27.Small lever	28.Dot matrix display board

The hardness tester meets the standard:
GBT 231.1-2018 Brinell hardness test for metallic materials Part 1: Test methods

GB/T 231.2-2012 Brinell hardness test for metallic materials Part 2: Verification and calibration of hardness testers

Standard configuration:

name	quantity	name	quantity
main engine	1platform	20Reading microscope	1only
φ2.5mmBall pressure head	1only	φ5mmBall pressure head	1only
φ10mmBall pressure head	1only	Small flat test bench	1only
Brinell hardness standard blockHBW/187.5/2.5 (150~250)	1block	Brinell hardness standard blockHBW/3000/10 (150~250)	1block
VType test bench	1only	Product Qualification Certificate	1share
