Overview:
Equipped with 10 levels of testing force, data can be output through a printer, high-definition optical system and photoelectric sensing system, electronic control system loading, automatic compensation of testing force, keyboard operation, selectable conversion between hardness, and automatic switching between indenter and objective lens. Integrated casting body, without deformation, stable performance, high measurement accuracy, good repeatability, direct display of measurement values, convenient and fast. The display interface adopts a menu structure, friendly human-machine dialogue, easy operation, and simple installation and debugging. Display the encoder inputs for the D1 and D2 values of the indentation diameter length, reducing human reading errors.
Main functions:
Having a testing force of level 10;
Adopting closed-loop sensor loading and electronic control system loading, automatically compensating for experimental force;
High definition optical system and photoelectric sensing system for clearer and easier observation;
By keyboard operation, the conversion between testing method and hardness can be selected;
Capable of converting hardness scales;
The data of various operation processes and test results can be displayed on the large LCD screen;
Application scope:
Mainly used for hardness testing of materials such as cast iron, steel, non-ferrous metals, and soft alloys. In addition, it can also be used for hardness testing of certain non-metallic materials such as hard plastics and electric wood. Suitable for factories, workshops, laboratories, colleges and research institutions.
Technical data:
|
model
|
HBS-3000Z
|
|
Vickers Scales
|
HBW2.5/62.5HBW2.5/187.5HBW5/62.5HBW5/125HBW5/250HBW5/750
HBW10/100HBW10/250HBW10/500HBW10/1000HBW10/1500HBW10/3000
|
|
Exchange Scales
|
HRCHVHKHBWHRAHRDHR15NHR30NHR45NHR15THR30THR45T
HRBHRF
|
|
Experimental force
|
62.5kkgf (612.9N)100kgf (980.7N)125kgf (1226N)187.5kgf (1839N)
50kgf (2452N)500kgf (4903N)750kgf (7355N)1000kgf (9807N)
1500kgf (14710N)3000kgf (29420N)
|
|
Minimum graduation value of micrometer eyepiece
|
0.625um
|
|
Total magnification
|
20X
|
|
Hardness testing scope
|
（8-650）HBW
|
|
Duration Time
|
5~60S
|
|
External dimensions(mm)
|
550X250X780mm
|
|
Host weight
|
about140kg
|
|
Maximum height of the specimen
|
220mm
|
|
Inner wall to center of pressure head
|
145mm
|
|
source
|
AC110-220V±5%,50~60Hz
|

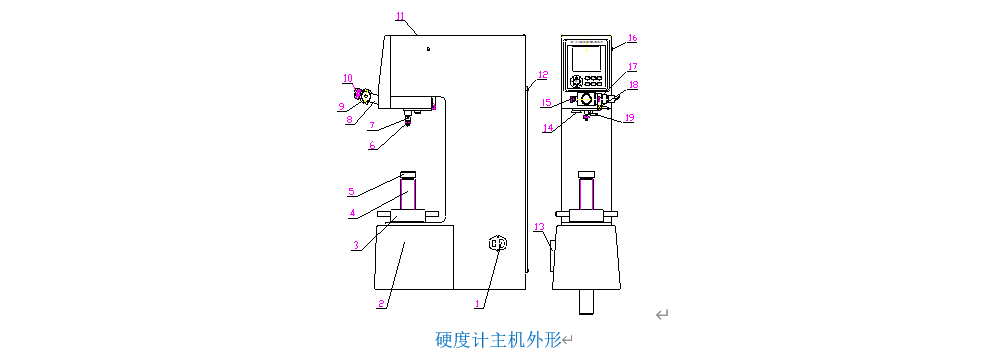

Appearance of hardness tester host:
|
1.switch
|
2.subject
|
3.Spinning wheel
|
4.Lifting screw
|
5.Test bench
|
|
6.Pressure head
|
7.Pressure head screw
|
8.Eyepiece tube
|
9.Micrometer eyepiece
|
10.Eye mask
|
|
11.Upper cover
|
12.Rear cover
|
13.printer
|
14.objective lens
|
15.Left drum wheel
|
|
16.Circular socket
|
17.Right drum wheel
|
18.Measurement button
|
19.Handle
|
|
The hardness tester meets the standard:
GBT 231.1-2018 Brinell hardness test for metallic materials Part 1: Test methods
GB/T 231.2-2012 Brinell hardness test for metallic materials Part 2: Verification and calibration of hardness testers
Verification regulation of JJG150 metal Brinell hardness tester
Standard configuration:
|
name
|
quantity
|
name
|
quantity
|
|
main engine
|
1platform
|
20Reading microscope
|
1only
|
|
φ2.5mmBall pressure head
|
1only
|
φ5mmBall pressure head
|
1only
|
|
φ10mmBall pressure head
|
1only
|
Zhongping Interview Platform
|
1only
|
|
Large flat test bench
|
1only
|
VType test bench
|
1only
|
|
Brinell hardness standard block
|
3block
|
Product Qualification Certificate
|
1share
|
|
Product User Manual
|
1book
|
|
|
