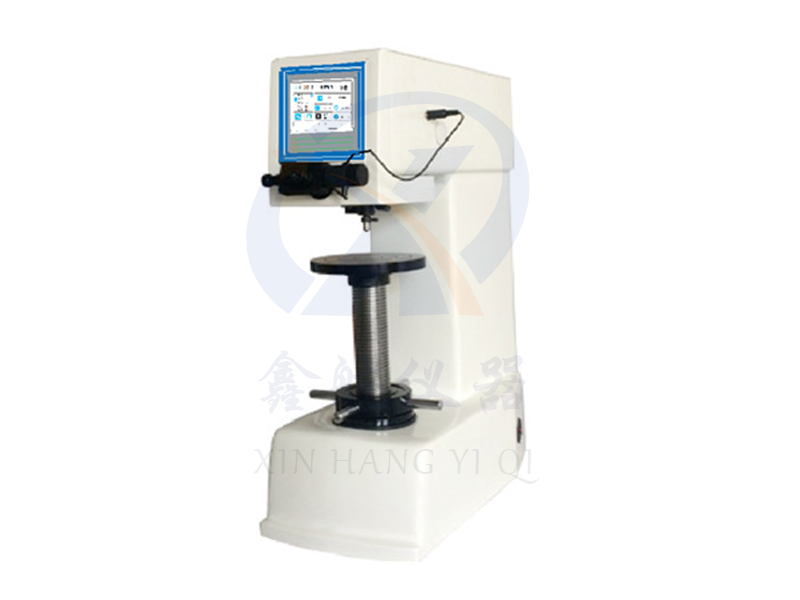

Overview:The MHBS-3000 direct reading digital Brinell hardness tester is a newly developed and domestically advanced next-generation Brinell hardness tester. Applicable to the determination of Brinell hardness of black and non-ferrous metals. This machine adopts closed-loop sensor loading, electronic control system, photoelectric sensing and other systems, with a testing force of 10 levels. The touch screen operation is intuitive and simple, with the option to choose between testing methods and various hardness conversions. The data of various operation processes and test results can be displayed on the 5.6 screen, and the data of test results can be output through USB. The loading time is doubled compared to the past (8 seconds), greatly shortening the operation process. This machine is suitable for testing laboratories of various production and processing enterprises, colleges and universities, and research machinery.
Main functions:
The menu structure allows for the display of data on various operation processes and test results on the large LCD screen;
The experimental process is automated and easy to operate;
Equipped with hardness value conversion function, capable of judging the upper and lower tolerances of hardness;
Adopting closed-loop sensor loading and electronic control system loading, automatically compensating for experimental force;
High definition optical system and photoelectric sensing system for clearer and easier observation;
Encoder input of indentation diameter length D1 and D2 values to reduce human reading errors;
The data of the experimental results can be output through a printer;
The pressure head and objective lens automatically switch.
Application scope:
The Brinell hardness test uses a large testing force and a large indentation diameter, making it suitable for hardness testing of large grain metal materials, such as cast iron, non-ferrous metals and alloys, various annealed and quenched and tempered steels, especially for softer metals such as pure aluminum, lead, tin, etc.
technical data
|
model
|
MHBS-3000
|
|
Vickers Scales
|
HBW2.5/62.5HBW2.5/187.5HBW5/62.5HBW5/125HBW5/250HBW5/750HBW10/100HBW10/250HBW10/500HBW10/1000HBW10/1500HBW10/3000
|
|
Experimental force
(Force accuracy ≤ ±1%）
|
62.5kkgf (612.9N)100kgf (980.7N)125kgf (1226N)187.5kgf (1839N)250kgf 250kgf (2452N)500kgf (4903N)750kgf (7355N)1000kgf (9807N)1500kgf 1500kgf (14710N)3000kgf (29420N)
|
|
Duration Time
|
0-60S
|
|
Hardness testing scope
|
8~650HBW
|
|
Magnification of micrometer eyepiece
|
20times
|
|
Minimum graduation value of micrometer eyepiece
|
0.625um
|
|
Maximum height of the sample
|
220mm
|
|
Maximum distance from the center of the pressure head to the body
|
145mm
|
|
Instrument size
|
550X250X780mm
|
|
source
|
Wide power supplyAC110V-220V±5%,50~60Hz
|
|
Instrument weight is approximately
|
130kg（Packing weight approximately: 150kg)
|
|
Data export
|
USBexport
|
|
Indicating accuracy
|
Standard hardness block
|
Maximum error of indication%（relativeH)
|
Repetitive error of indication
|
|
≤125
|
±3
|
0.03d
|
|
125<HBW≤225
|
±2.5
|
0.025d
|
|
>225
|
±2
|
0.02d
|
|
Execution standards
|
GB/T231.2national standardsJJG150Verification regulations
|
Appearance of hardness tester host:

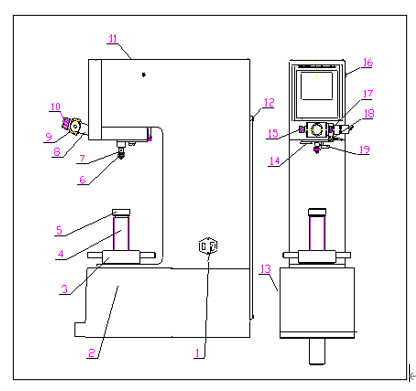

Appearance of hardness tester host
|
1.switch
|
2.subject
|
3.Spinning wheel
|
4.Lifting screw
|
5.Test bench
|
|
6.Pressure head
|
7.Pressure head screw
|
8.Eyepiece tube
|
9.Micrometer eyepiece
|
10.Eye mask
|
|
11.Upper cover
|
12.Rear cover
|
13.printer
|
14.objective lens
|
15.Left drum wheel
|
|
16.Circular socket
|
17.Right drum wheel
|
18.Measurement button
|
19.Handle
|
|

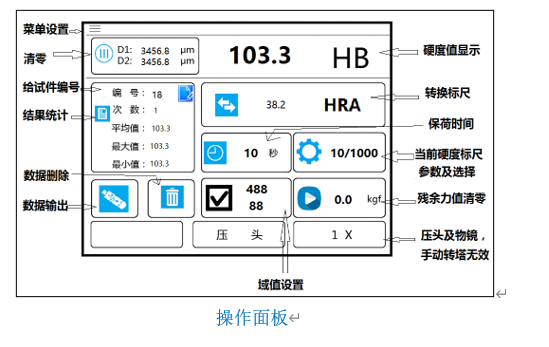

Introduction to panel key functions:
The hardness tester meets the standard:
GBT 231.1-2018 Brinell hardness test for metallic materials Part 1: Test methods
GB/T 231.2-2012 Brinell hardness test for metallic materials Part 2: Verification and calibration of hardness testers
Verification regulation of JJG150 metal Brinell hardness tester
Standard configuration:
|
name
|
quantity
|
name
|
quantity
|
|
main engine
|
1platform
|
20Reading microscope
|
1only
|
|
φ2.5mmTungsten steel ball indenter
|
1only
|
φ5mmTungsten steel ball indenter
|
1only
|
|
φ10mmTungsten steel ball indenter
|
1only
|
Small flat test bench
|
1only
|
|
Large flat test bench
|
1only
|
VType test bench
|
1only
|
|
Brinell hardness standard block
|
|
HBW/3000/10 (150~250)
|
1block
|
HBW/1000/10 (75~125)
|
1block
|
|
HBW/187.5/2.5 (150~250)
|
1block
|
Power cord
|
1root
|
|
Product Qualification Certificate
|
1share
|
Product User Manual
|
1book
|
